SUBITO 314A / 314B: ASSEMBLY GUIDE
7. Seat Post Collar Assembly

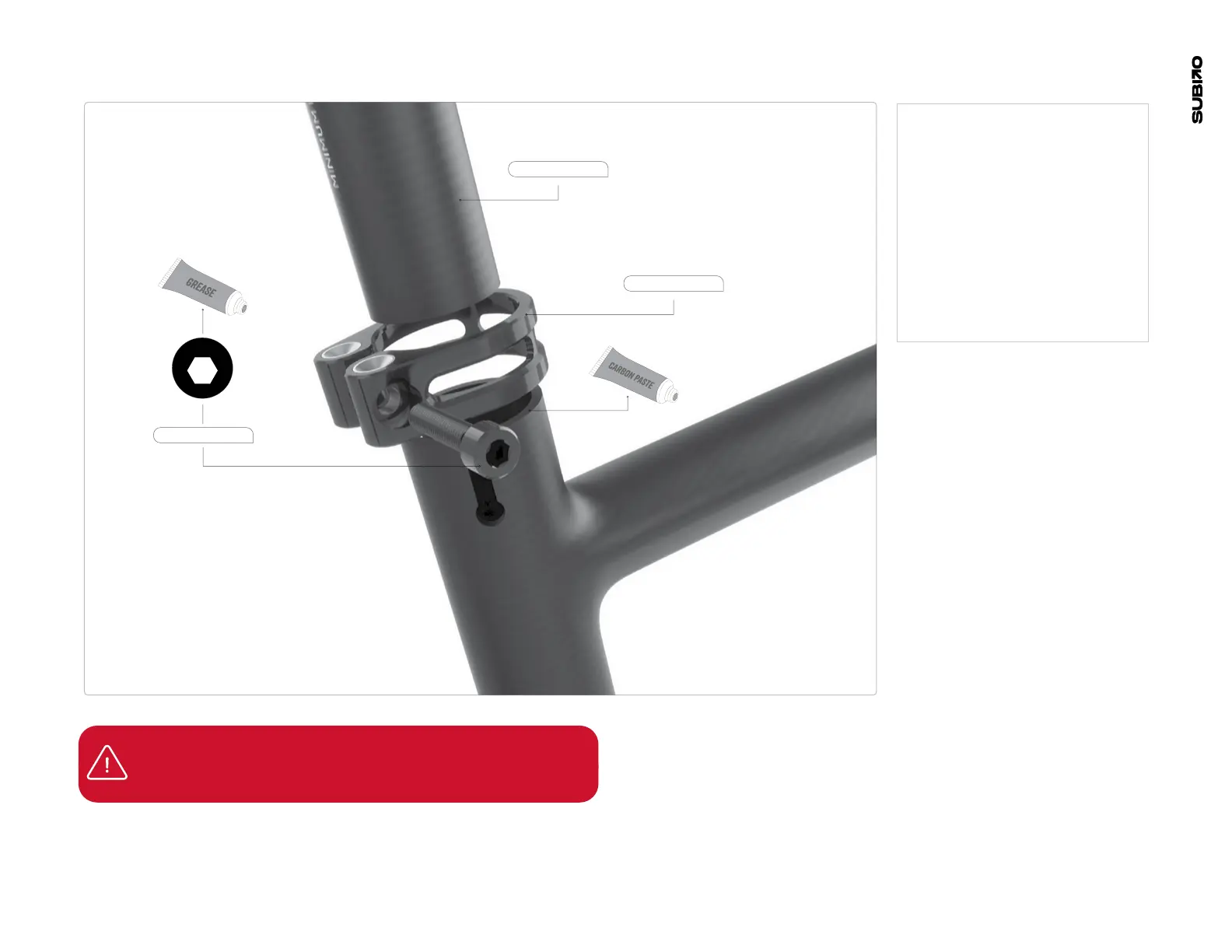

1. Assemble the seat post collar
(SKU: 80801) on the frame.
2. Apply grease on the thread
of the M5 x 22mm bolt.
3. Apply carbon paste on the inside
of the frame (seat tube).
4. Insert the seat post
(SKU: SP.KRYCS.273B)
to the desired height.
5. Tighten the M5 x 22mm
bolt to 4Nm.
80801
SP.KRYCS.273B
M5 x 22mm
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
IMPORTANT:
Refer to p.50 for seat post MIN and MAX insertion limits.
