SUBITO ARGON 18 - Front Fender Installation

48
SUBITO 314A / 314B: ASSEMBLY GUIDE

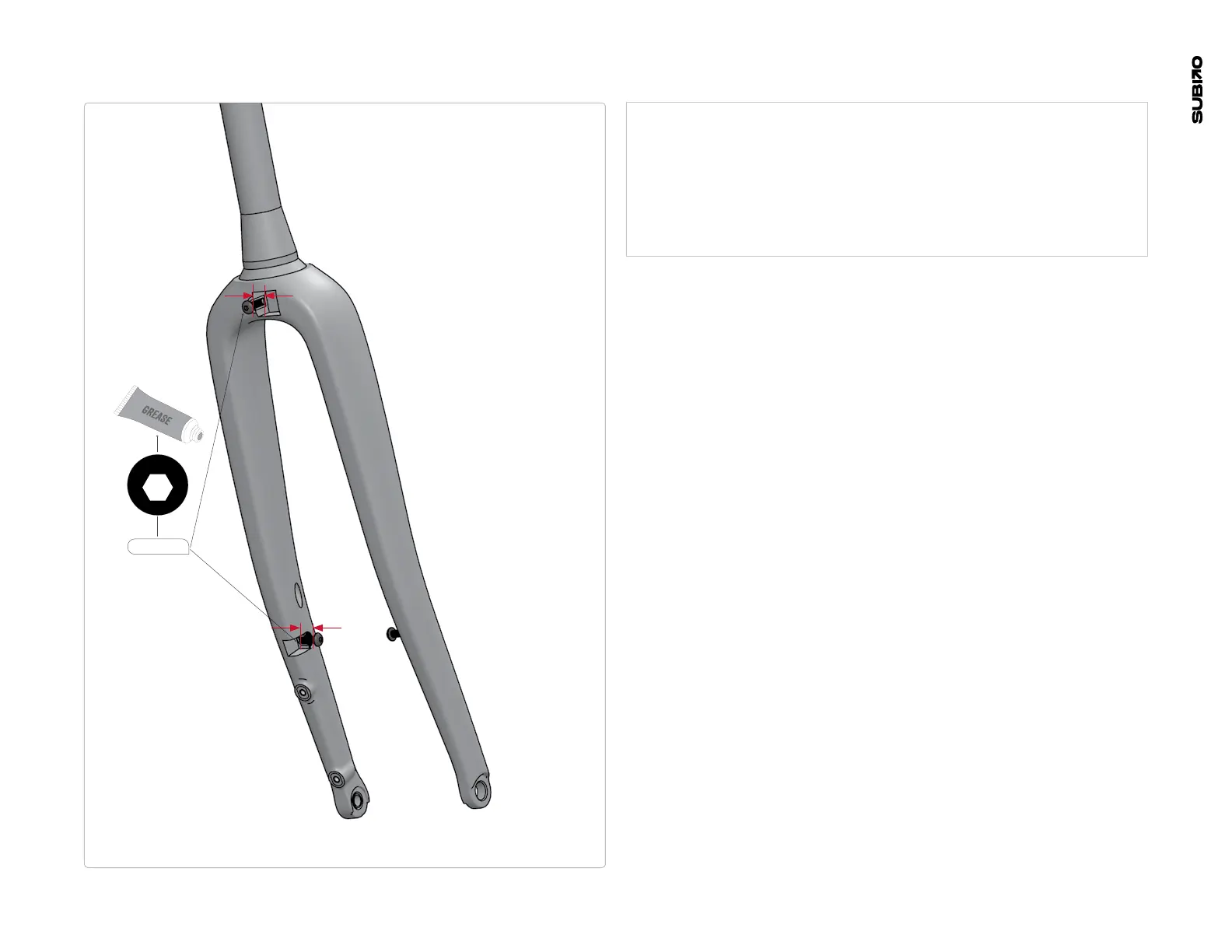

20. Front Fender Installation
9mm
15mm
M5 screw
• On the upper screw, the thread length is 9mm. Make sure to have 9mm or less
of thread insertion.
• On the lower screw, the thread insertion is 15mm. The thread starts 5mm
above the surface of the fork. There must be between 10 and 15mm of visible
thread once the fender is on the screw.
• All screws must be torqued to a maximum of 3Nm. Apply grease on the thread.
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
