SUBITO 314A / 314B: ASSEMBLY GUIDE

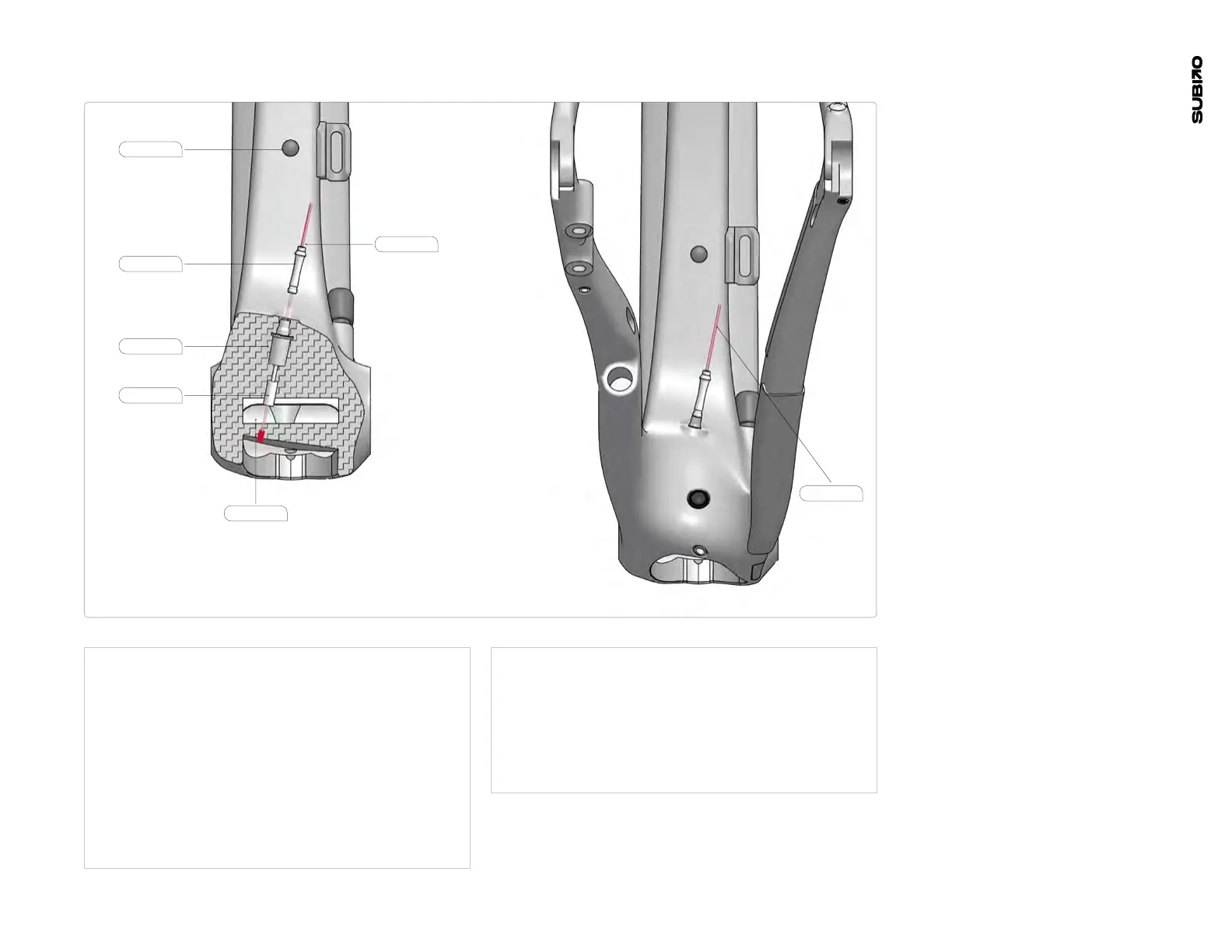

12.3 Cable and housing routing – Mechanical shifting
Front Derailleur with cable stop:
1. Insert front derailleur housing from side guide hole.
2. Once the housing exits from the BB hole, install the dirt
guard kit (SKU: 80988).
3. Install the FD cable stopper (SKU: 81242).
4. Install the cable in the housing.
5. Install the rubber dust seal (included in SKU: 80988).
DC
DC
80804
80988
81242
80988
DH
6. Guide the housing in the hole behind the BB.
7. Install the plug grommet
(SKU: 80804) on the Di2
seat tube hole.
