SUBITO 314A / 314B: ASSEMBLY GUIDE

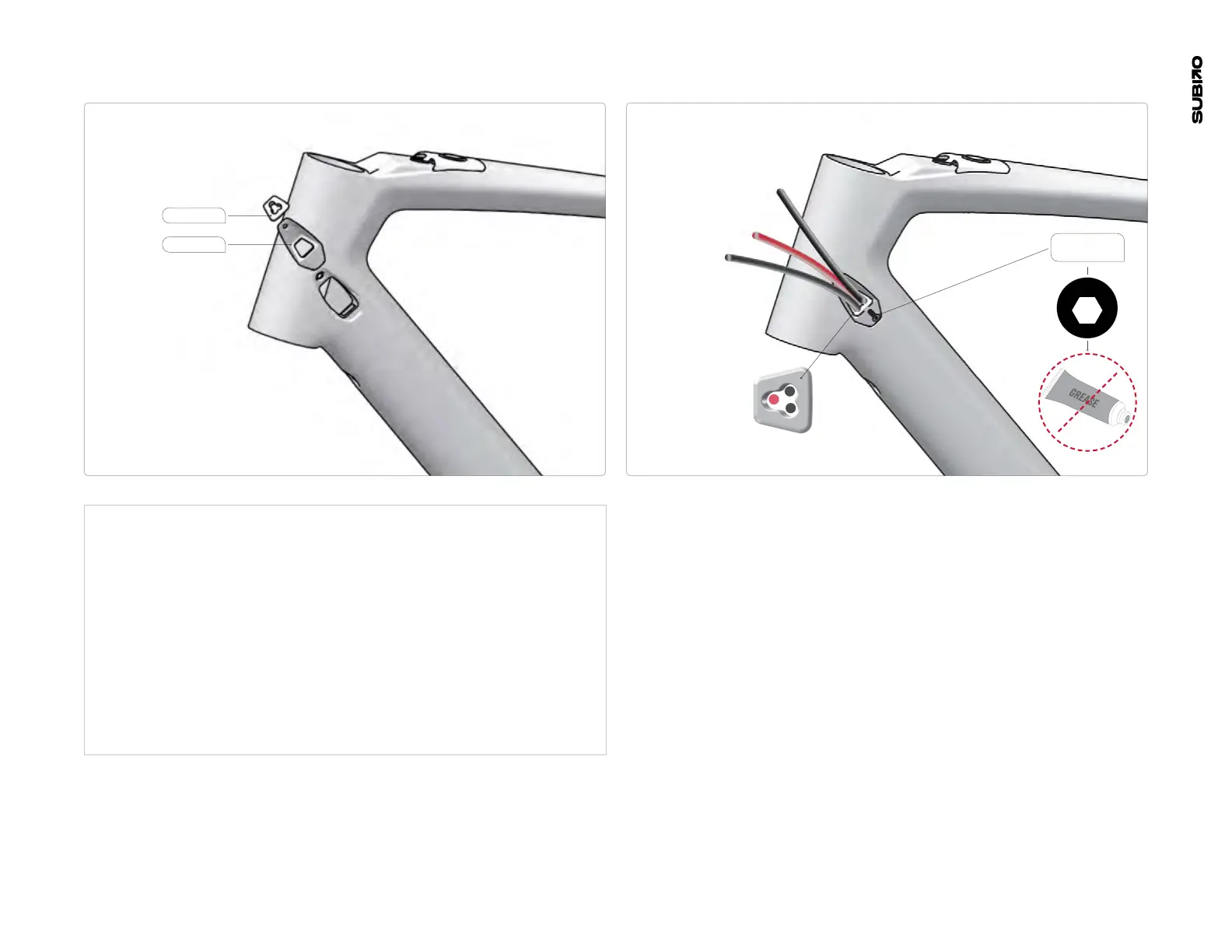

12.5 Cable and housing routing – Mechanical shifting
Parts Needed for Installation:
• Head Tube Side Guide (SKU: 81244)
• Side Grommet 2X (SKU: 81245)
• Flat Head Cap Screw M3 x 10mm (SKU: 81252)
1. Install the grommet in the side guide.
2. Route the cable through the assembly.
3. Screw the side guide into the frame, hand tighten the screw without grease.
81245
81244
81252
M3 x 10mm
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
Front
Rear
