SUBITO 314A / 314B: ASSEMBLY GUIDE

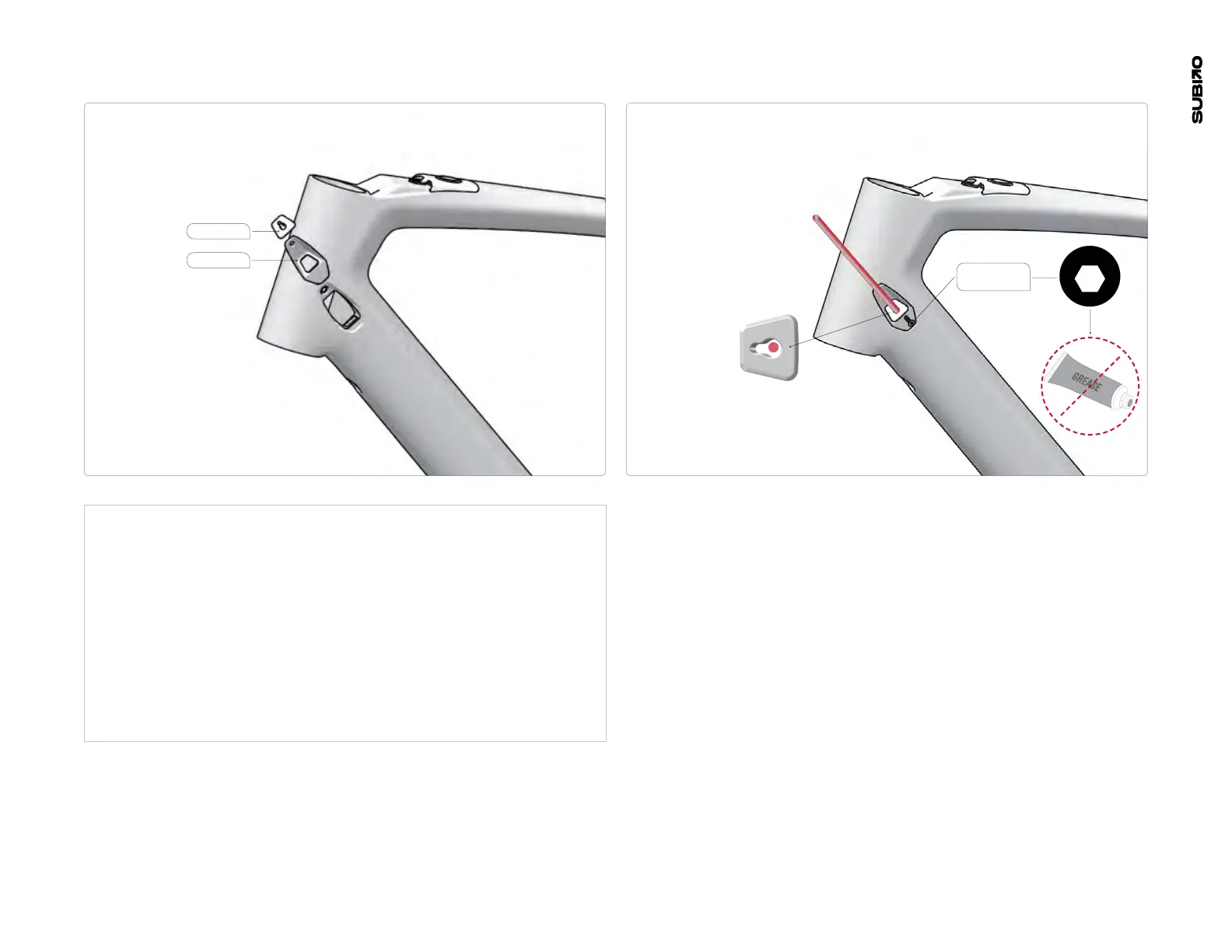

15.4 Cable and housing routing – Electronic wireless routing
81247
81244
81252
M3 x 10mm
Part needed for installation:
(Note that the same grommet as Di2 is used for this configuration)
• Head tube side guide (SKU: 81244)
• Side grommet Di2 (SKU: 81247)
• Flat head cap screw M3 x 10mm (SKU: 81252)
1. Install the grommet in the side guide.
2. Route the cable through the assembly.
3. Screw the side guide onto the frame, hand tighten the screw without grease.
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
