SUBITO 314A / 314B: ASSEMBLY GUIDE
22. Seat Post MIN and MAX insertion
B
A
C
E
D
B
A
C
E
D

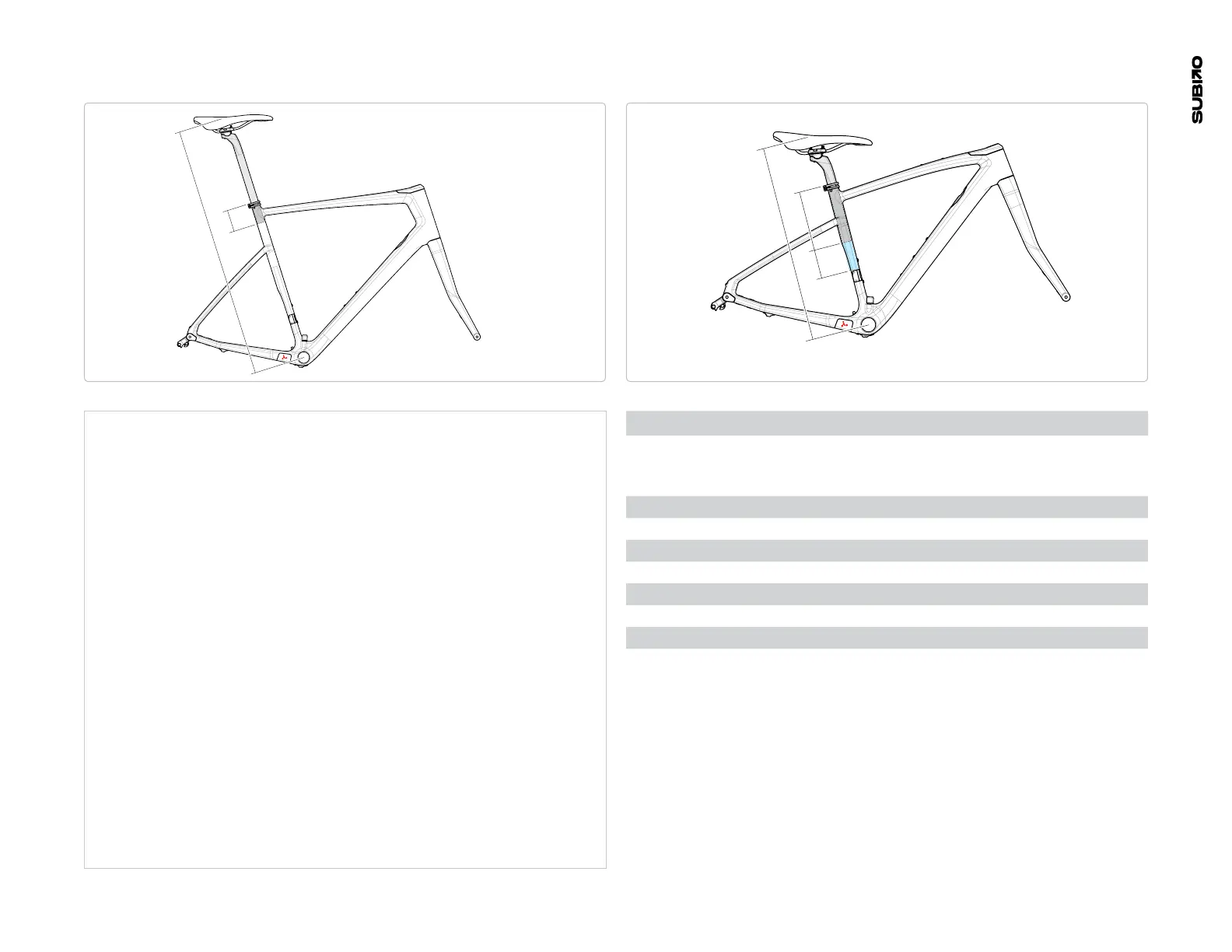

Refer to the table adjacent for details on saddle height and seatpost insertion limits:
i. The correct frame size must be determined according to the saddle height
limits.
A. Minimum Saddle Height.
D. Maximum Saddle Height.
ii. Depending on the size of the frame and the desired saddle height,
the seatpost might need to be cut.
B. Maximal insertion depth in the frame’s seat tube.
C. Required seatpost cut length to be able to adjust the saddle height
at the minimum position.
» Adjust the seatpost cut length in accordance with your desired
saddle height.
» Required Minimum Seatpost Cut Length =
C - (“Desired Saddle Height” – A)
» Example: For a desired saddle height of 600mm on a XX-Small
Subito frame.
» The required minimum seatpost cut length is:
135 - (600-520) = 55mm.
E. Minimal insertion depth in the frame’s seat tube.
saddle height limit subito
SIZE SADDLE H MIN.
ST MAX
INSERT
SP CUT
SADDLE H
MAX.
SP MIN
INSERT
UNIT mm mm mm mm mm
A B C D E
XXS 520 165 135 740 80
XS 550 185 115 770 80
S 585 215 85 805 80
M 620 250 50 840 80
L 655 245 55 875 80
XL 690 285 15 910 80
