Getting Connected

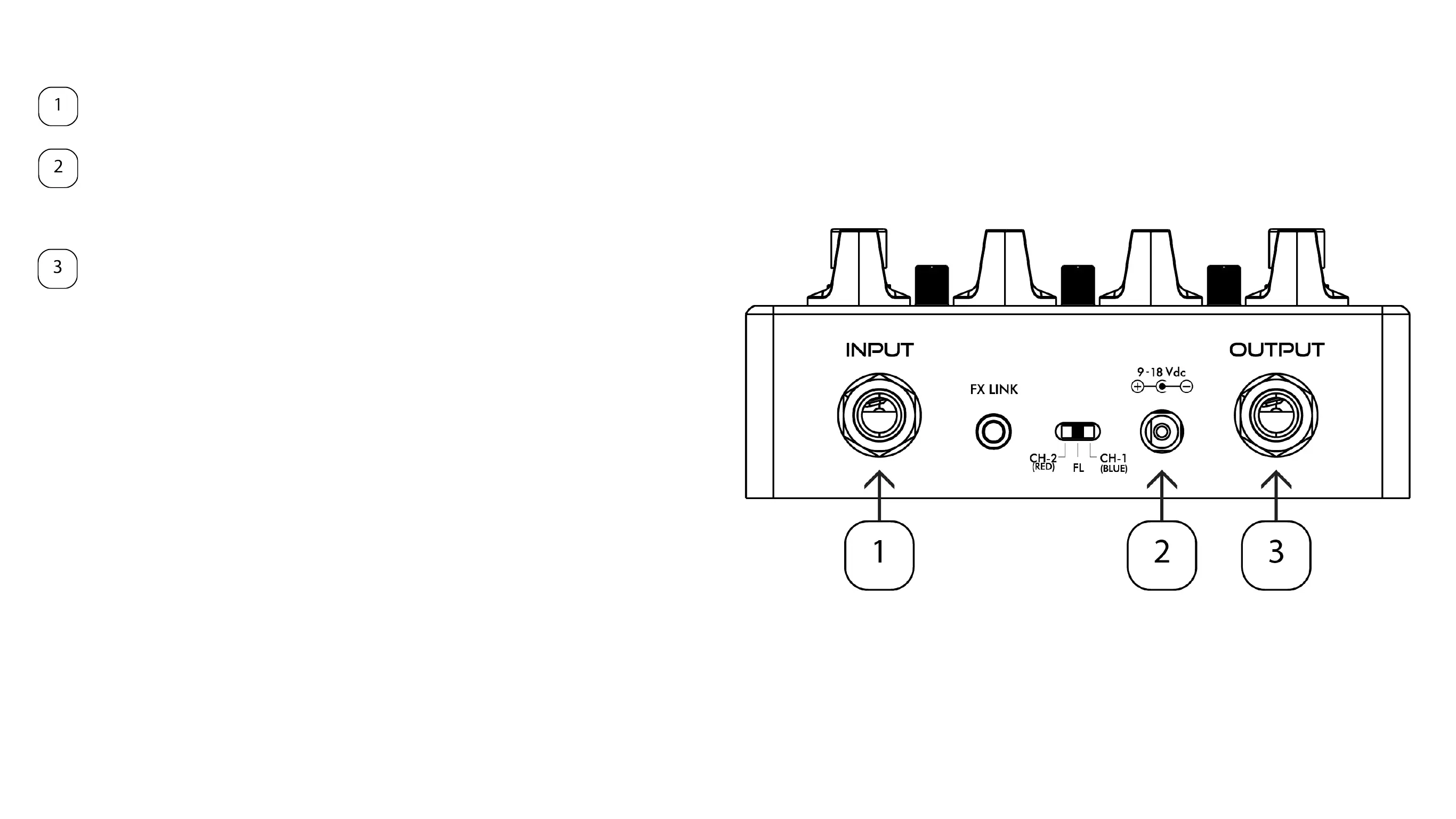

Input: Plug the cable from your guitar into here, or from the previous
effect’s output�
DC Input: Eclipse accepts power from power supplies in the range of 9
to 18 Vdc (center negative) See Technical Specifications on pg 10.
Eclipse can also be powered internally from a 9V battery as described
below�
Output: Plug a cable from here to an amp or another effect’s input�
Installing/Replacing The Battery:
1� Unscrew the backplate of the pedal to access the battery compartment
with the battery snap located inside�
2� Plug in a 9V battery to the snap and re-screw the backplate�
NOTES:
The battery is connected when a cable is plugged into the Input jack
and there is no cable plugged into the DC input.
Remember to unplug your cable from the input jack when you are done
playing to disconnect the battery in order to insure a long battery life.
This step is not needed if a cable is plugged into the DC input.
TIP: For longer battery life, an Alkaline battery is recommended.
