3000PB, 3700B, 4500B, 3000PVB, 3700VB, 4500VB User Manual 2: Description
02250216-786 R01
Subject to EAR, ECCN EAR99 and related export control restrictions. 11

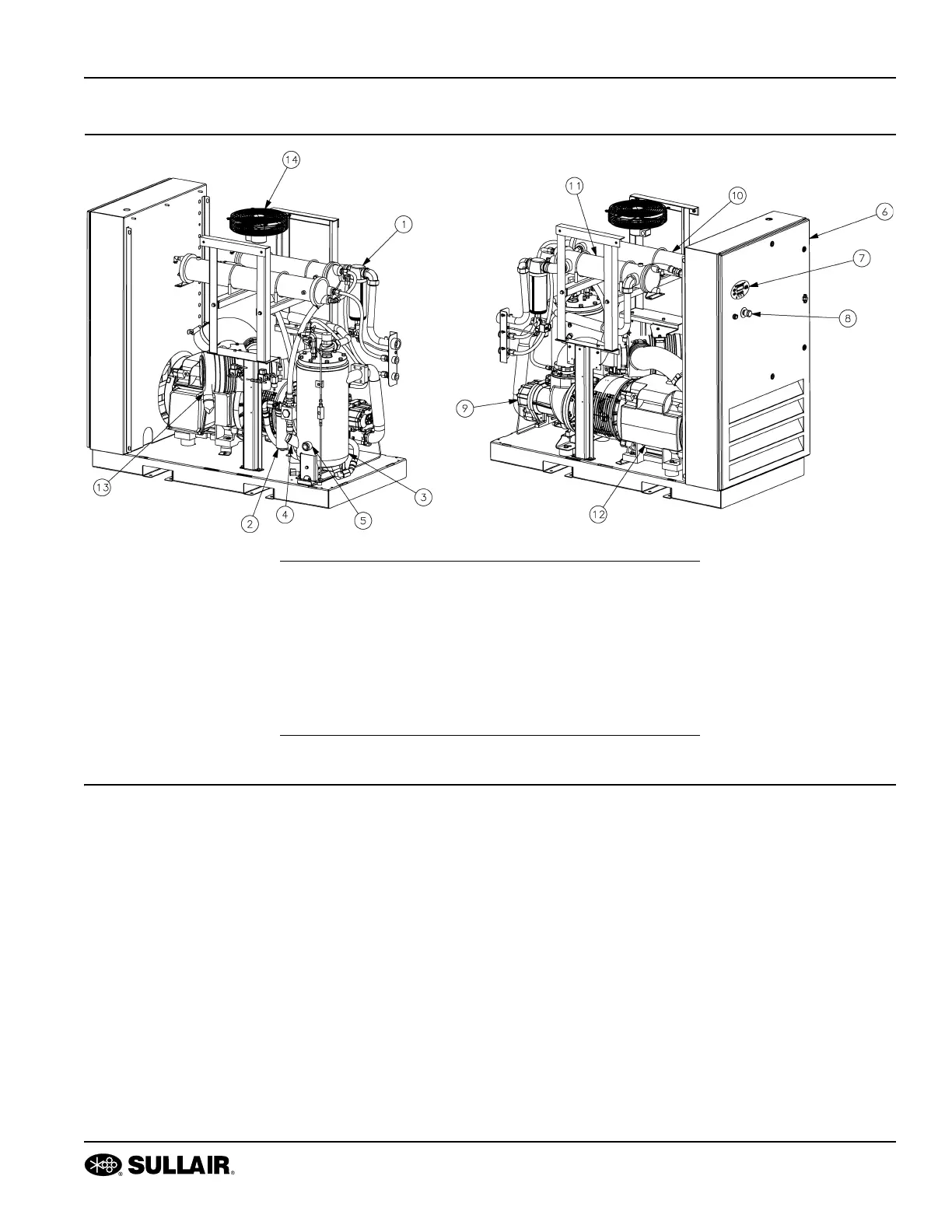

Figure 2-2: Overall component layout, water-cooled model
1. Moisture separator 8. E-Stop button
2. Fluid filter 9. Compressor unit
3. Separator/sump tank 10. Oil cooler
4. Fluid fill 11. Aftercooler
5. Fluid fill sight glass 12. Motor
6. Starter box 13. Air inlet filter
7. WS Controller™ 14. Canopy vent fan
