secure primary element in place.
11. Replace the cover
12. Secure the cover by tightening the wingnut.
ELEMENT INSPECTION
1. Place a bright light inside the element to inspect
for damage or leak holes. Concentrated light will
shine through the element and disclose any
holes.
2. Inspect all gaskets and gasket contact surfaces
of the housing. Should faulty gaskets be evident,
correct the condition immediately.
3. If the clean element is to be stored for later use,
it must be stored in a clean container.
4. After the element has been installed, inspect and
tighten all air inlet connections prior to resuming
operation.
SEPARATOR ELEMENT REPLACEMENT
Refer to Figure 7-4. The separator elements must
be changed when the maintenance gauge shows
red with the compressor running full load, or once a
year, whichever occurs first. Follow the procedure
explained below for separator element replace-
ment.
Section 7
MAINTENANCE
33

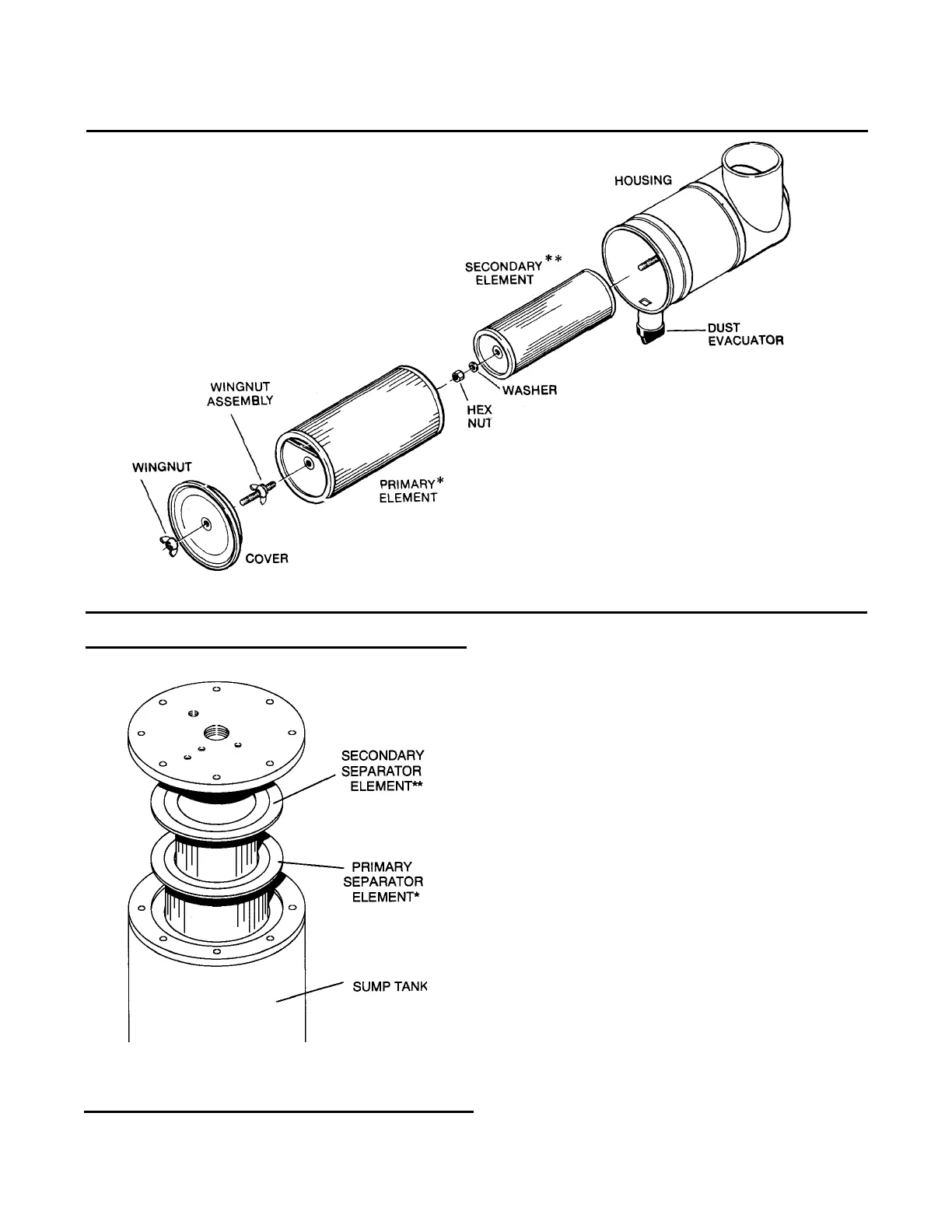

Figure 7-3 Air Filter Replacement LS-160 (100HP/ 75KW) (P/N 02250059-096)
*Primary Replacement Element P/N 02250046-012
**Secondary Replacement Element P/N 02250046-013
Figure 7-4 Separator Element Replacement
*Replacement Kit for Primary Element P/N 02250100-755
**Replacement Kit for Secondary Element P/N 02250100-756
