FLUID FILTER MAINTENANCE
Refer to Figure 7-2. Fluid filter maintenance should
be performed when one or more of the following
items occurs:
• When corresponding maintenance message is
displayed by the Supervisor or the fluid filter
gauge- this corresponds to a pressure loss con-
dition across the units of 20 psig (1.4 bar).
• Every 1000 hours.
• Every 6 months.
• Every fluid charge change.
Your fluid filter includes a proprietary replaceable
element available solely from Sullair and its agents
- DO NOT substitute.
1. Using a strap wrench, remove the old element
and gasket.
2. Clean the gasket seating surfaces.
3. Apply a light film of fresh oil to the new gasket
and hand tighten new element until gasket con-
tacts the seat.
4. Continue tightening element an additional 1/2 to
3/4 turn.
5. Restart package and check for leaks.
SEPARATOR ELEMENT MAINTENANCE
Refer to Figure 7-3. The Supervisor or panel gauge
indicates when the separator elements should be
serviced (this happens when the pressure drop
across the elements has exceeded 10 psig [0.7
bar]), or once a year, whichever occurs first.
Element service can be provided as follows:
FILTER HEAD
GASKET*
ELEMENT*

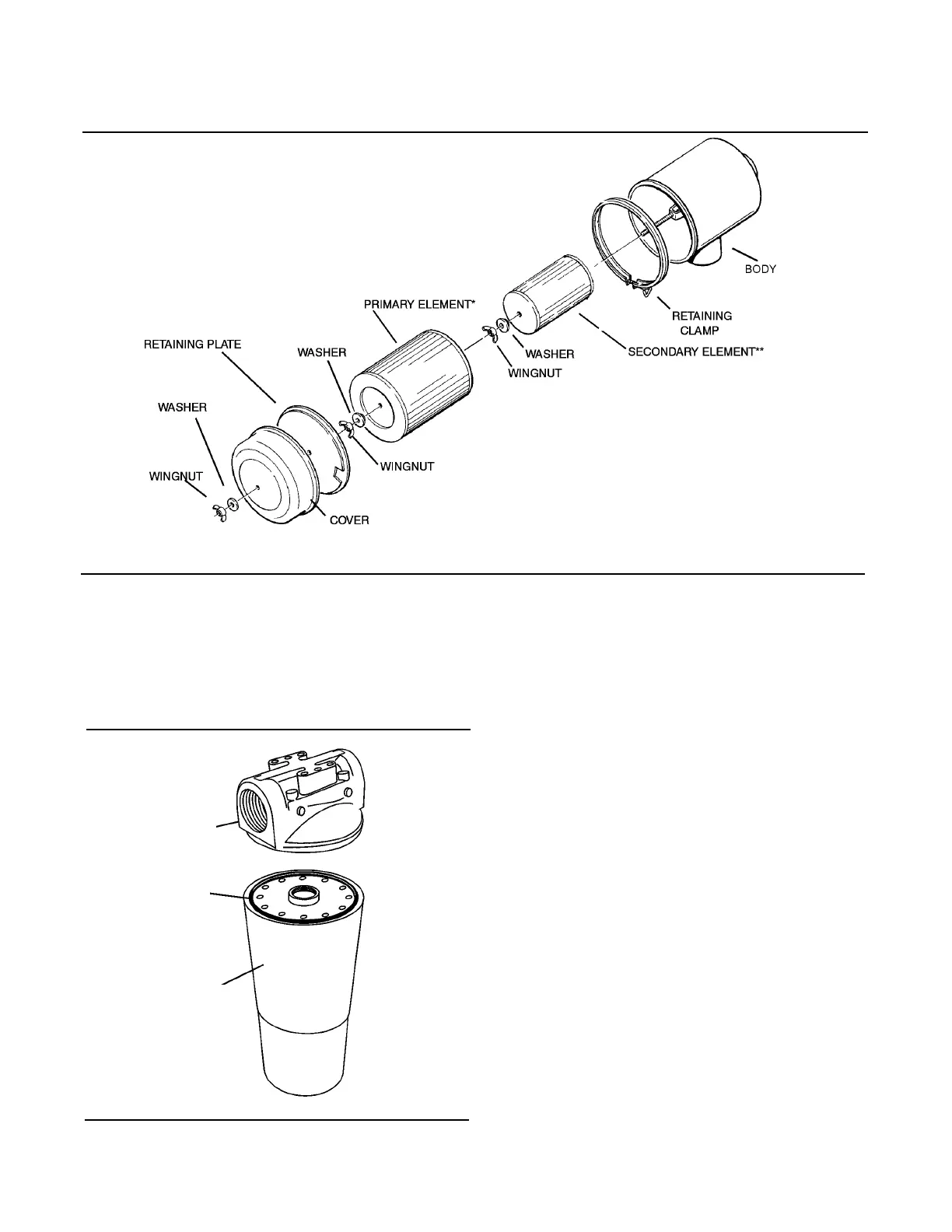

Figure 7-2 Compressor Fluid Filter
(P/N 02250054-605)
*Repair Kit P/N 250025-526
Figure 7-1 Air Filter (P/N 409264)
*Replacement Element (Primary) P/N 409853
**Replacement Element (Secondary) P/N 409854
