Section 2
SUPERVISOR II SEQUENCING
9
Modes of Sequencing
REMOTE - Enables three digital inputs for Remote Start/Stop, Unload/Load and Master
Control. These inputs are normally controlled by remote relay contacts or a PLC controller.
A customer may then interface with custom sequencing panels which provide signals for a
2-wire stop/start operation.
SLAVE - Not to be used
SEQUENCE HOURS - In this mode machines are started and loaded depending on the
SEQUENCE HOURS parameter. The sequence hours parameter is similar to run hours
except that it can be changed. Digital inputs for Remote control are disabled. ROTATE
hours are disabled.
COM NUM - In this mode machines are started and loaded depending on the COMMUNI-
CATION NUMBER parameter. Operation is exactly the same as the SEQUENCE HOURS
method (see above) except the communications number is used to determine machine
sequence instead of sequence hours. Digital inputs for Remote control are disabled.
SEQUENCE HOURS with ROTATE Hours Enabled - A special version of SEQUENCE
hours for balancing run hours for use in only two-machine applications that has a demand
for only one machine. DO NOT use with more than two machines (See ROTATE hours
parameter setting for more information). Digital inputs for remote control are disabled.
Remote Control Mode or Digital Inputs For Remote Sequencing
There are three inputs and one output that are enabled in this mode:
Remote Start/Stop Input (D10)
Remote Load/Unload Input (D9)
Local/Master Input (D8)
Local/Master Output (K6)

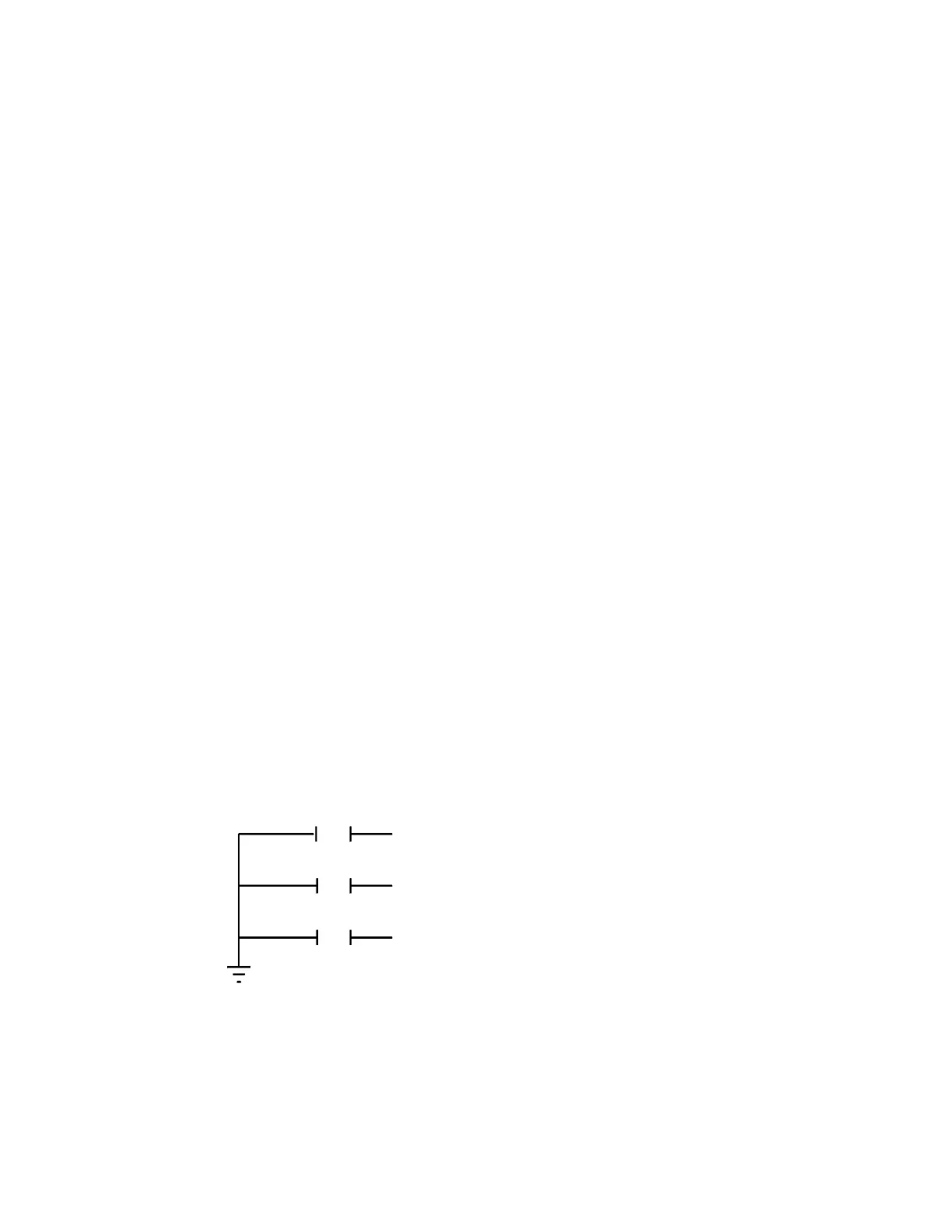

Inputs D8, D9 and D10 are wired through customer furnished relay contacts to ground
(Supervisor II Common J3-20).
If D10CR is closed the machine will be enabled to start, if D10CR is open the machine will
stop, and be held stopped. If remote start/stop is not needed then jumper D10 (J3-19) to
GND (J3-20).
D10CR
D9CR
D8CR
GND J3-20
D10 J3-19 (Remote Start/Stop input)
D9 J3-18 (Remote Load/Unload input)
D8 J3-17 (Local/Master input)
To Next Page
