SECTION 5 SUPERVISOR CONTROLLER™ USER MANUAL
31

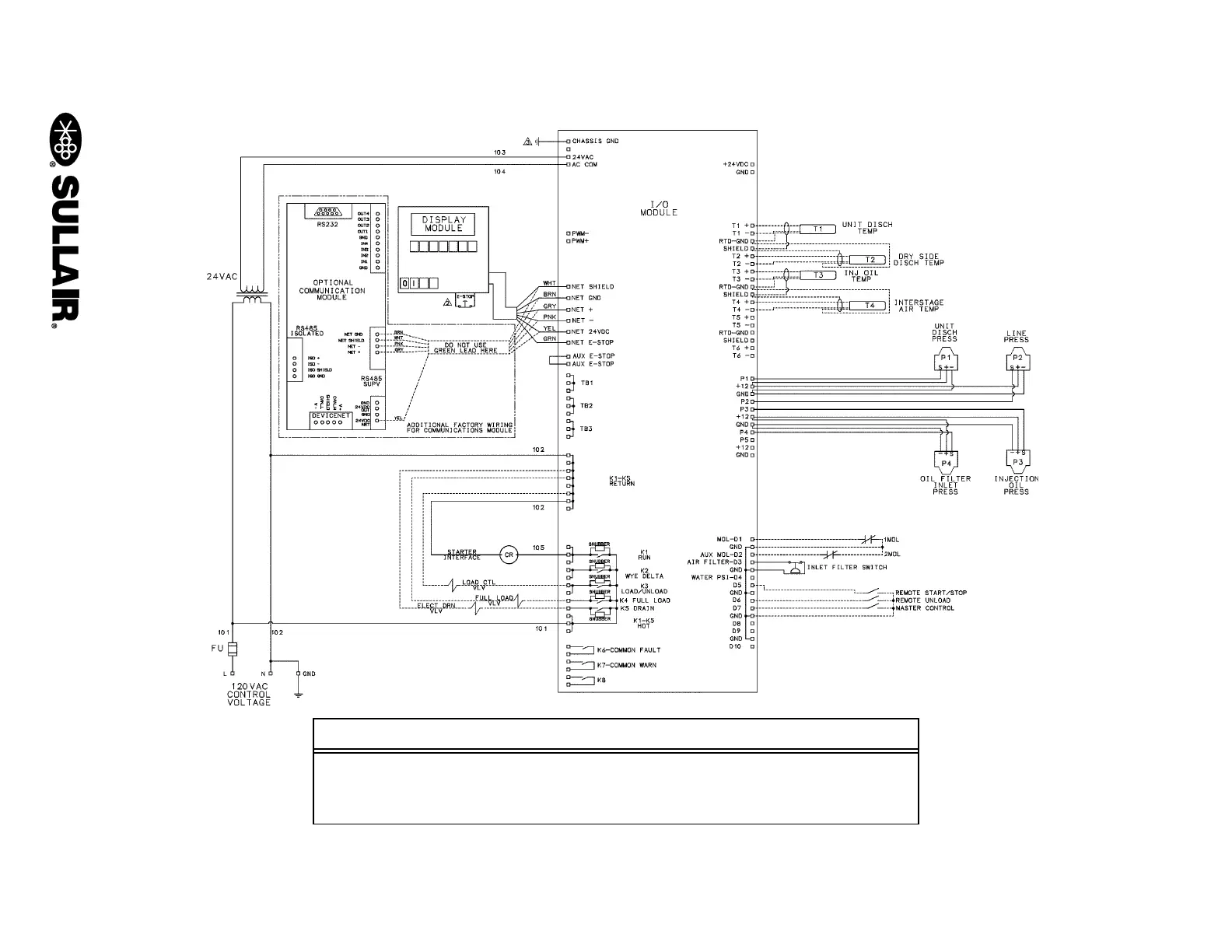

Figure 5-2: WIRING DIAGRAM—SUPERVISOR CONTROL Prior to April, 2009
02250132-198 R04
NOTES
1. DASHED LINES INDICATE TYPICAL FIELD CONNECTIONS THAT VARY DEPENDING ON COMPRESSOR
BEING RETROFITTED AND IS FIELD WIRED. FACTORY WIRING IS SOLID.
2. DISPLAY E-STOP CONNECTION IS WIRED TO TERMINAL BLOCK INSIDE REAR COVER OF DISPLAY.
3. CHASSIS GROUND WIRE TO BE AS SHORT AS POSSIBLE
