Sumitomo Beier Variator Series User Manual

36

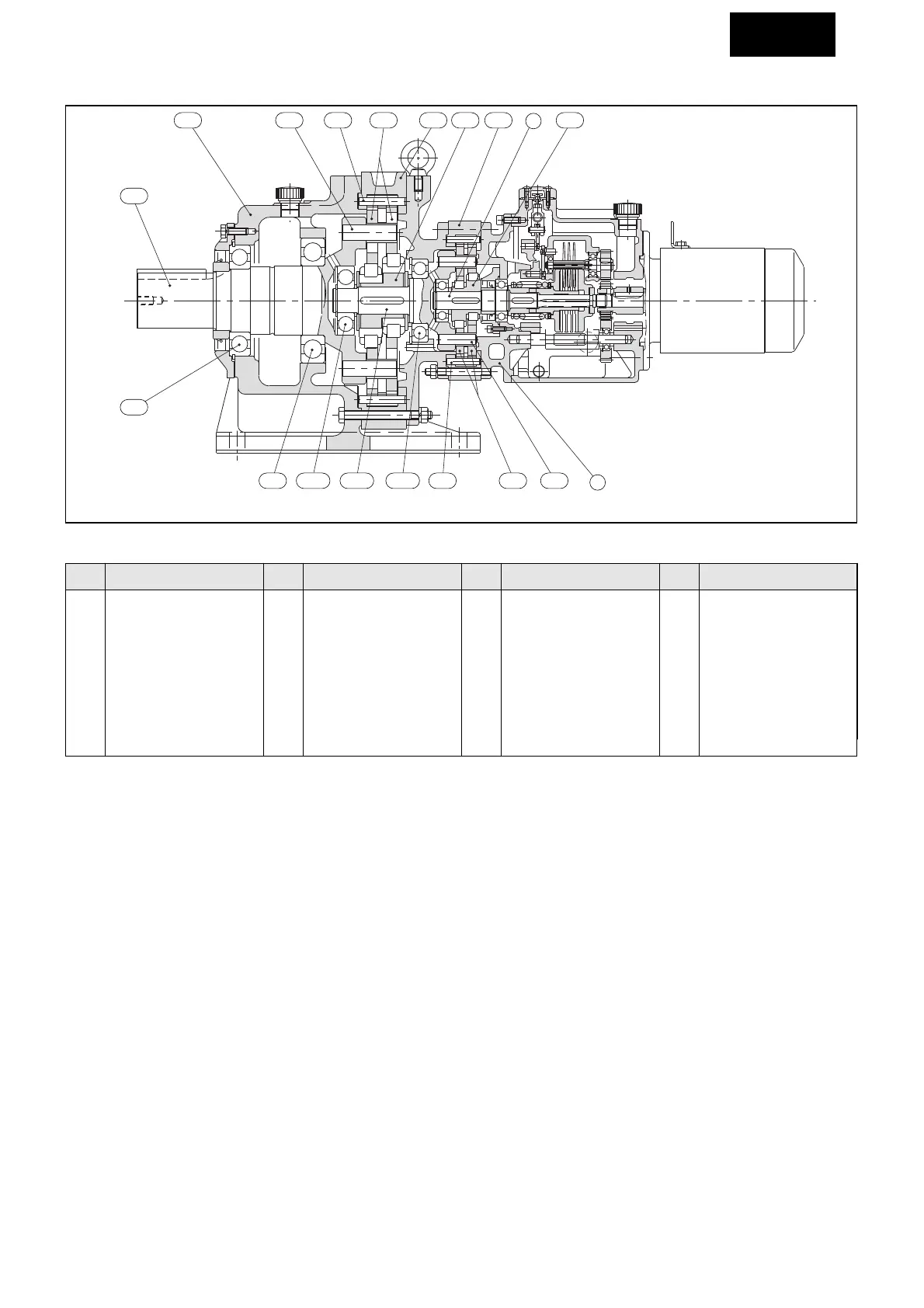

13-3) BEIER-CYCLO VARIATOR
2
8
C-2 C-4 C-5 C-7 C-6 C-3 C-6 C-3
C-1
C-8
C-9 C-10 C-12 C-11 C-5 C-7 C-4
Fig. 31
Part No. Description
Main Parts
1 Casing
2
3 Indicator plate
4 Oil filler plag
5 Oil gauge
6 Drain plug
7 Input shaft
8
9 Spring
Part No. Description Part No. Description Part No. Description
10 Face cam I
11 Face cam II
12 Swing shaft
13 Bracket (arm)
14 Spline shaft
15 Hand wheel
16 Shifting screw
D–1 Flange disc
D–3 Cone disc
G–1 Input shaft gear
G–2 Idler gear
G–3 Spline shaft gear
C–1 Slow speed shaft
C–2 Horizontal casing
C–3 Eccentric
C–4 Slow speed shaft pin
C–5 Ring gear housing pin
C–6 Ring gear housing
C–7 Cycloid disc
C–8 Slow speed shaft bearing A
C–9 Slow speed shaft bearing B
C–10 Intermediate shaft bearing A
C–11 Intermediate shaft bearing B
C–12 Intermediate shaft
COMMON
Cover
(Flange cover in Fig. 31)
Output shaft
(high speed shaft in Fig. 31)
