Sumitomo Beier Variator Series - D Type BEIER VARIATOR Construction; D Type BEIER VARIATOR (Horizontal) Construction; D Type BEIER VARIATOR (Vertical) Construction; Motor Construction Details

37

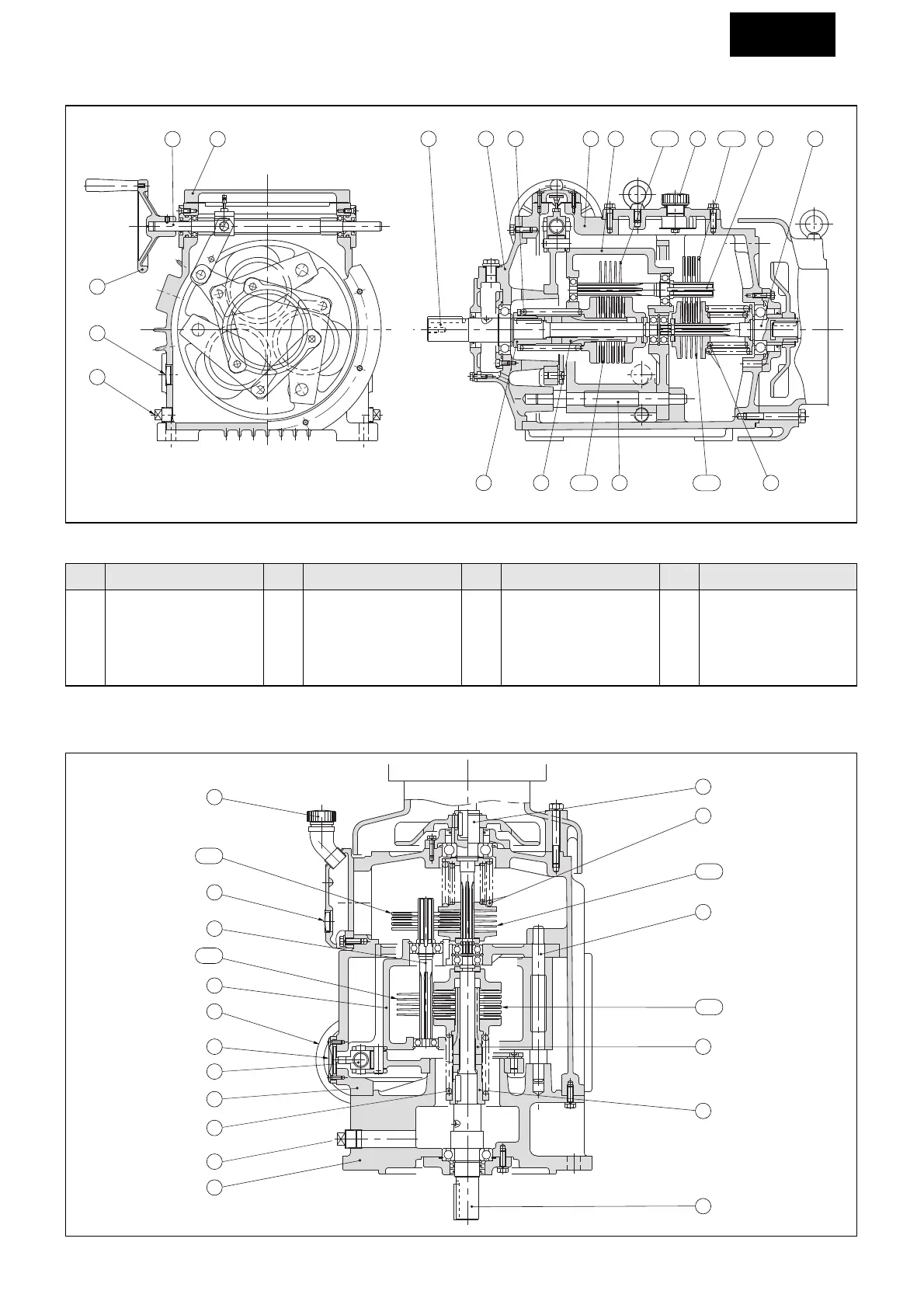

13-4) D Type BEIER VARIATOR (Horizontal)
417
16
6
7
9310
1
10131112
14 5 815
D-1D-3
D-3D-1
Fig. 32
Part No. Description
Main Parts
1 Casing
2 Base
3 Cover
4 Indicator plate
5 Oil filler plug
Part No. Description Part No. Description Part No. Description
6 Oil gauge
7 Drain plug
8 Input shaft
9 Output shaft
10 Spring
11 Face cam I
12 Face cam II
13 Swing shaft
14 Bracket (arm)
15 Spline shaft
16 Hand wheel
17 Shifting screw
D–1 Flange disc
D–3 Cone disc
13-5) D Type BEIER VARIATOR (Vertical)
D-3
D-1
D-1
D-3
5
6
15
14
16
4
17
10
1
7
2
9
12
11
13
10
8
Fig. 33
