Issue: 01/04
Page 8

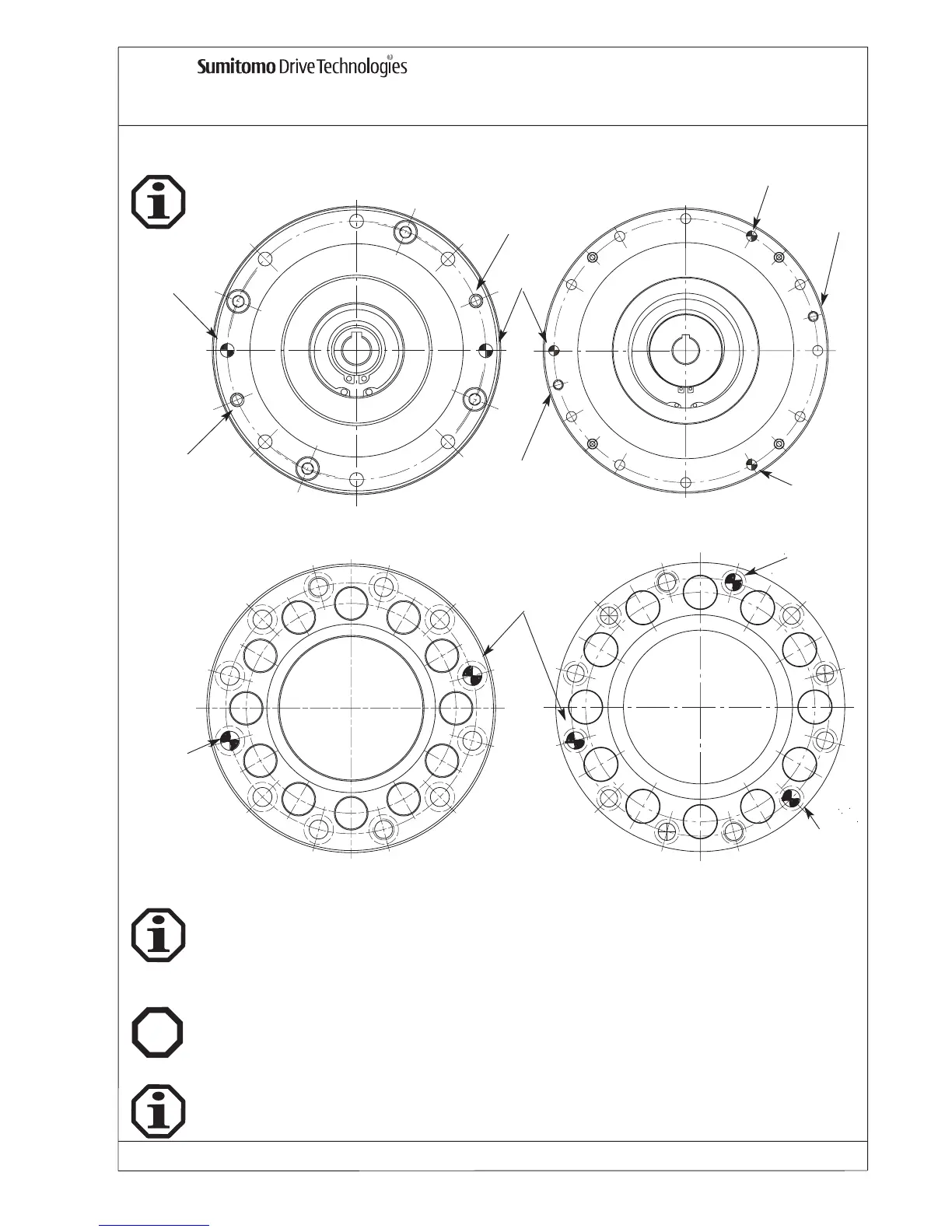

9.3 FC-A additional dowel pins - graph
FC-A 75
Dowel pin
Dowel pin
Dowel pin
Dowel pin
Thread
Thread
Dowel pin
Dowel pin
Dowel pin
Thread
Dowel
pin
Thread
FC-A 15-65 FC-A 75
Fine Cyclo reduction unit
Slow speed flange
9.4 FC-A l
ubrication and maintenance
The FINE CYCLO reduction assemblies FC-A are grease lubricated for life and suitable for any mount-
ing position.
We recommend the unit is returned to Sumitomo Drive Technologies for inspection and regreasing after
5 years to increase service lifetime.
9.5 FC-A
for use in hazardeous environment
The
FINE CYCLO reduction assemblies FC-A
fulfil the requirements of guideline 94/9EU, provided
installation is in accordance with the assembly tolerances and assembly methods shown at tab. 1 and
tab. 2, as well as safety instructions shown in chapter 6.6, 6.7 and 7.
FC-A 15-65
9.6 FC-A mounting examples
For mounting examples please refer to Precision Catalogue No. 991007.
FINE CYCLO Operating Manual
FC_GB_01_05 NO.991051
Issue: 01/05
