MPE-200 Guide to Operations Page 13
4. EQUALIZER SECTION (ctd)
Channel A peaking Eq on (green), preset
locked, 16 dB gain applied at 100 Hz

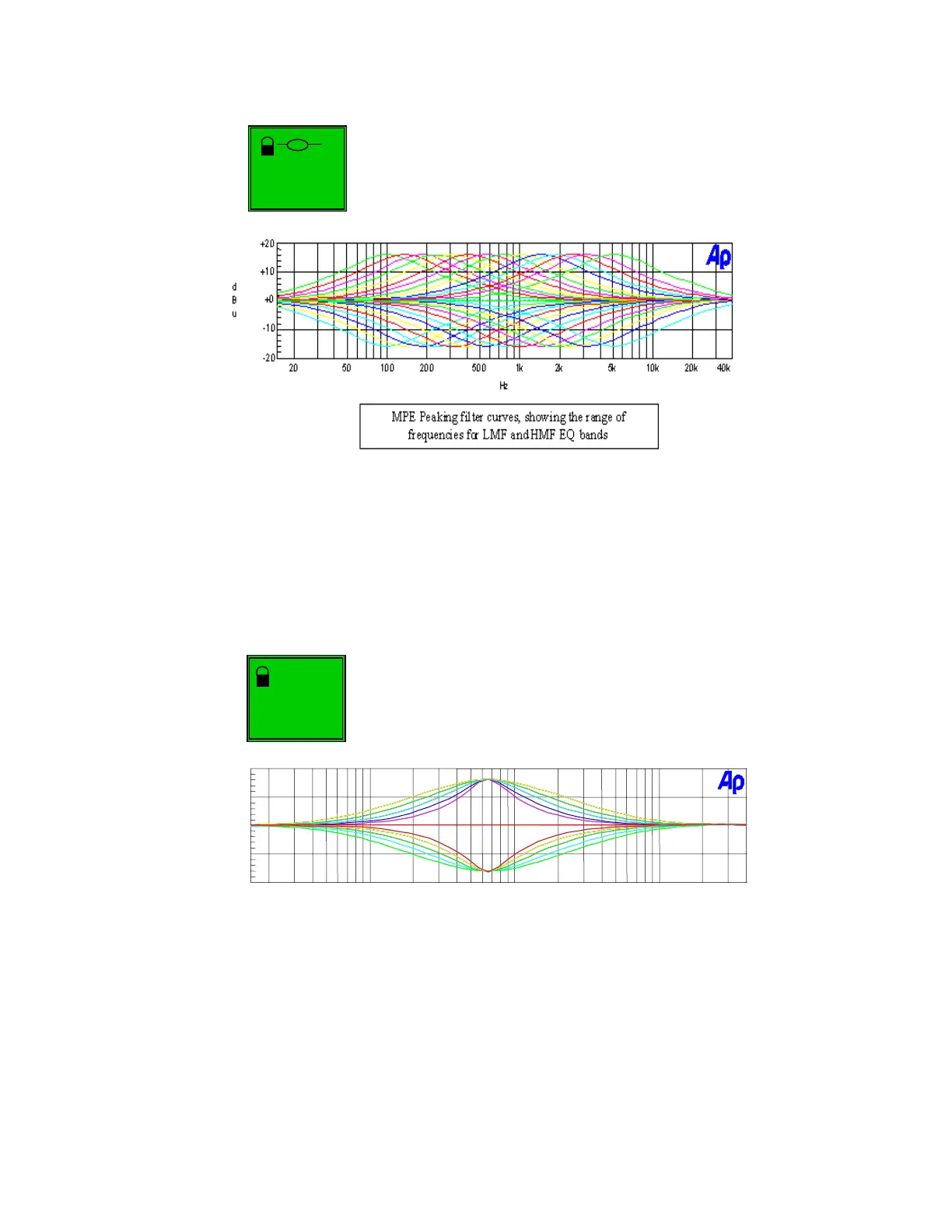

4.5 Q CONTROL
Low-mid and High-mid EQ sections are parametric peaking filters.
Filter Q adjustment is accessed by pressing the frequency encoder
knob. The range of adjustment is 0.6 (1.6 octave) to 2.0 (0.5
octave). A higher Q number represents a sharper or narrower
bandwidth filter. The encoder scale always shows frequency, even
when Q is being adjusted.
The same filter settings, showing the
Q, or bandwidth adjustment
1
+16.0
100 Hz
1
+16.0
q 1.2
-20
+20
-10
+0
+10
d
B
u
20 40k 50 100 200 500 1k 2k 5k 10k 20k
