2. SYSTEM OVERVIEW
2.1 The MPE-200 provides two independent channels
which can be controlled separately, or as a stereo pair.
See section 5.4 for details on selecting the channel
mode.
2.2 The Signal flow of one channel is shown below. Note
that the gain trim is in front of the EQ modules, and that
the output meter tap is before the fader. These facts are
important for proper operation of the MPE-200.

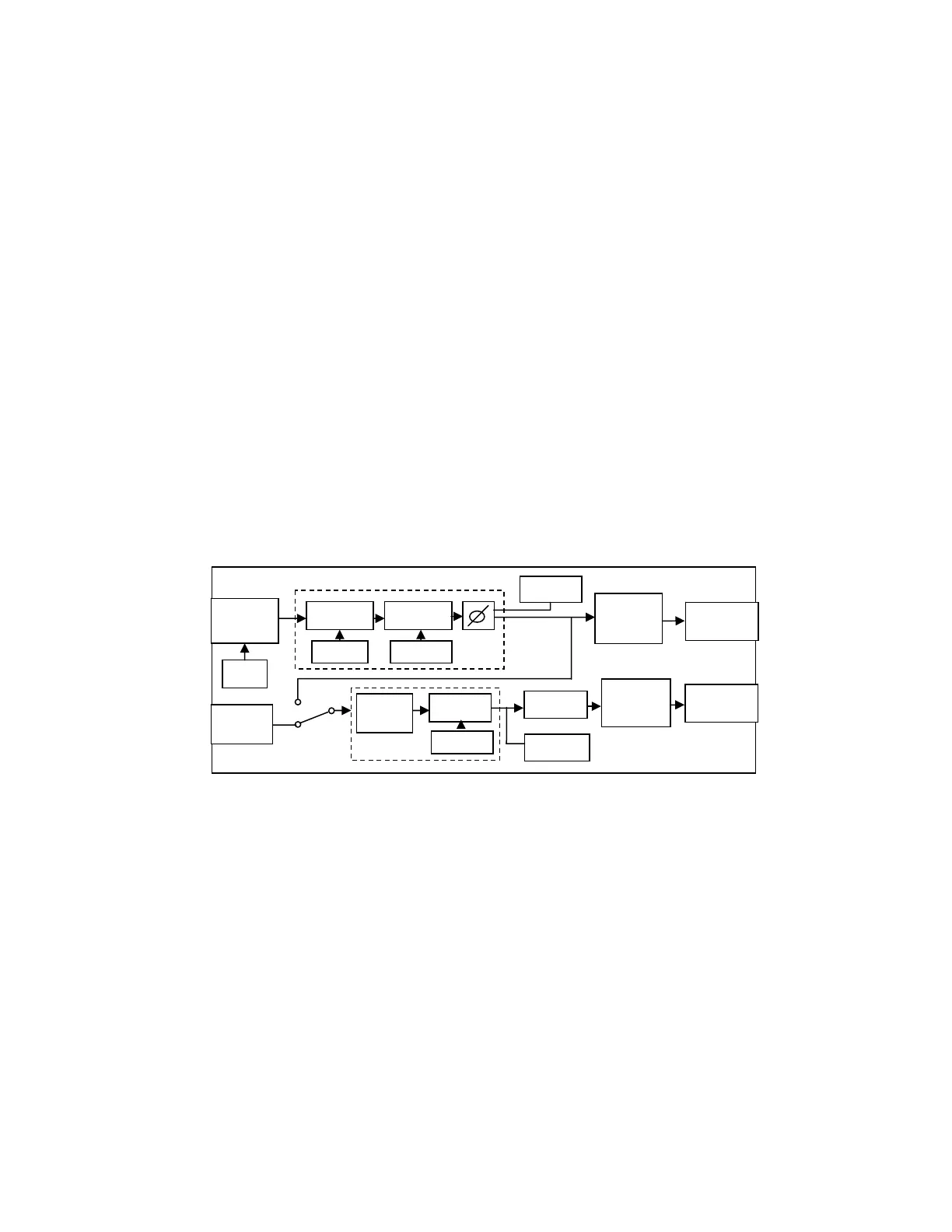

Signal Flow of an MPE Channel
PREAMP FILTERS
G
AI
N
BYPASS
XFMR
OUTPUT
STAGE
MIC OUT
XLR
MIC IN
XLR
EQ IN
XLR
+48
GAIN
TRIM
EQ (4)
BYPASS
XFMR
OUTPUT
STAGE
EQ OUT
XLR
IN SEL.
METER
METER
FADER
