5-4 Sun StorEdge 3000 Family FRU Installation Guide • May 2004

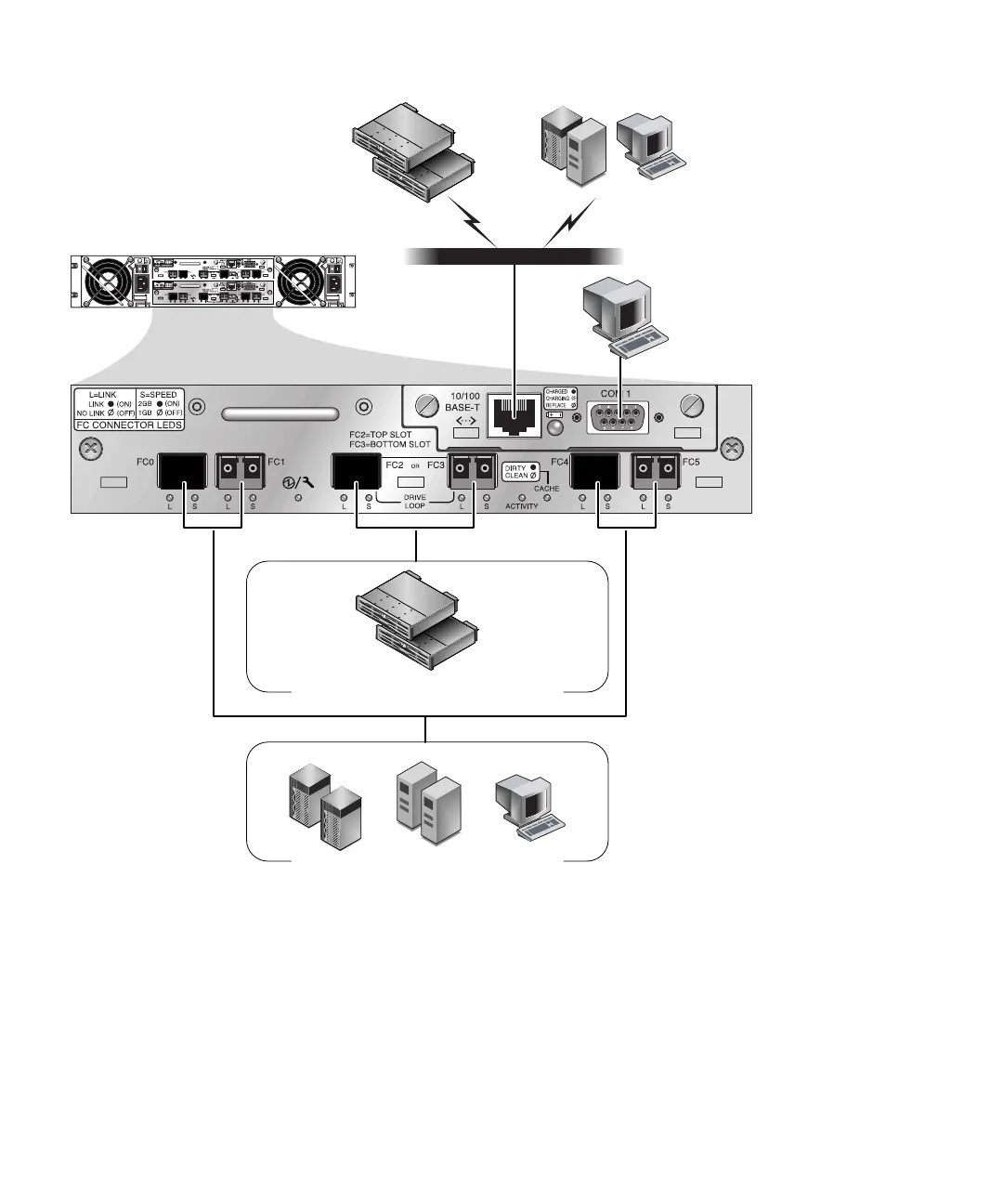

FIGURE 5-1 Hardware Connections on the Back of a Dual-Controller Sun StorEdge 3510 FC Array

application/data servers and consoles

FC device connections

FC expansion units/FC arrays

Management

console

Servers and consoles

FC devices
