5-20 Sun StorEdge 3000 Family FRU Installation Guide • May 2004

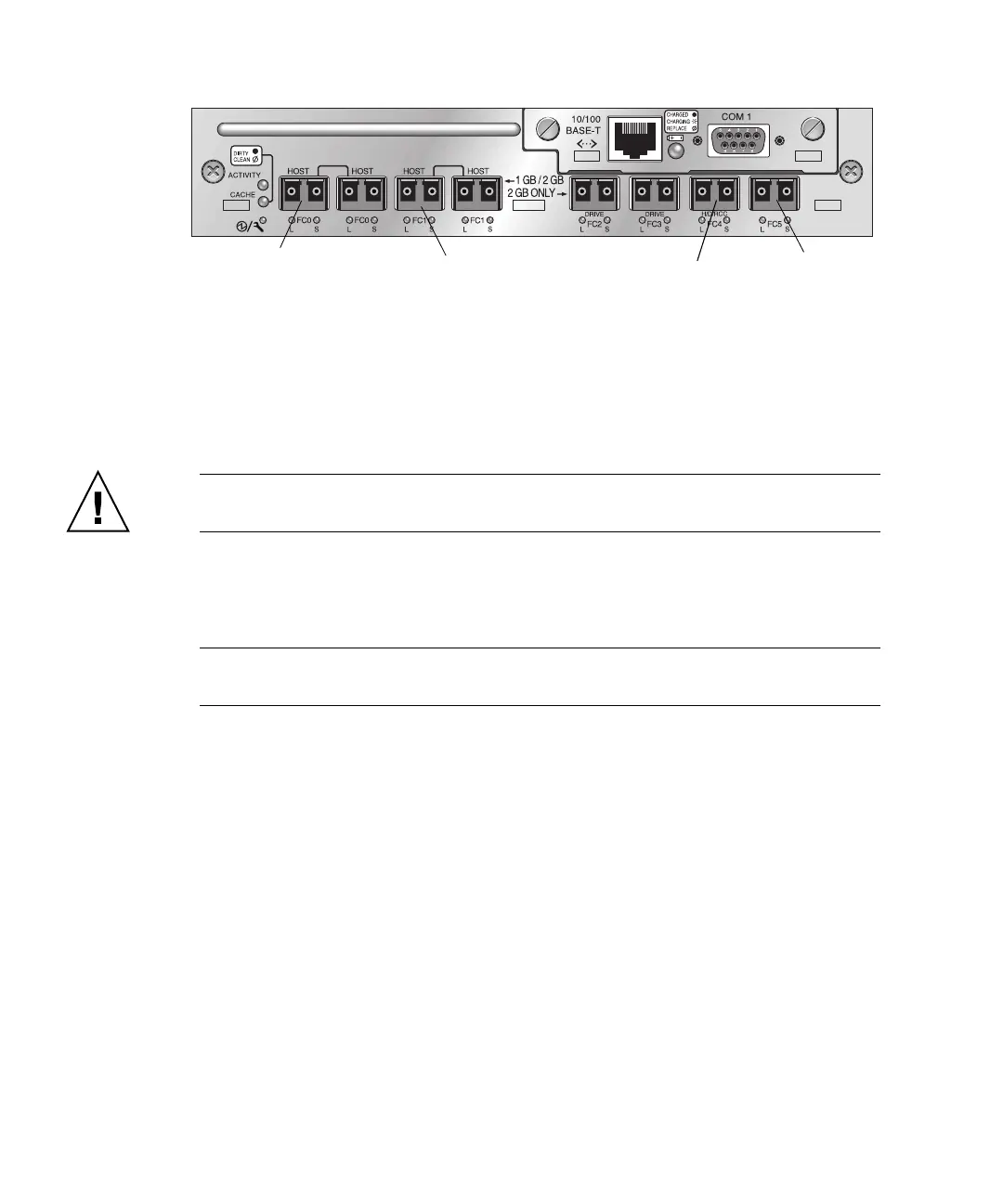

FIGURE 5-10 Sun StorEdge 3511 FC Array Single-Controller SFP Placement
7. Insert additional SFPs into the new I/O controller module as needed.
8. Install an I/O controller module into the top slot with the following steps.
a. Gently slide the I/O controller module into the unit until it clicks and is seated
in the backplane.
Caution – Be sure that the module is properly inserted in the guide rails of the
array.
b. Turn the thumbscrews on the left and right sides of the I/O controller module
clockwise until they are finger-tight to secure the module and to make the
module’s front panel flush with the chassis.
Note – To ensure that a thumbscrew is finger-tight, tighten it with a screwdriver
and then loosen the thumbscrew counterclockwise a quarter-turn.
9. Repeat Step 4 and Step 5 to remove the I/O module in the lower slot and repeat
Step 6 through Step 8 to install a second I/O controller module if you want to
create a dual-controller RAID array.
10. Power on the array.
11. Print or locate the Sun StorEdge 3510 and 3511 FC Array Installation, Operation and
Service Manual to use for the remainder of this procedure.
12. Connect the new RAID array to a terminal emulation program or workstation
through its serial port.
For information on how to connect to the serial port, refer to section 4.7, Configuring
a COM Port to Connect to a RAID Array, in the installation manual.
On a Solaris system, use the tip command to access the array locally.
H/D/RCC
Host port FC0
Host port FC1
Host port FC4
Host port FC5
To Next Page
