SUNFAR E300 SERIES 25
F0.12 Basic running freq Setting range：5. 0 Hz ~ upper freq
F0.13 Max output volt Setting range：25 ~ 250V / 50 ~ 500V
Basic running freq is inverter corresponding min freq of output max volt. Normally, it is motor
rated freq.
Max output volt is inverter corresponding output volt of output basic running freq. Normally,
it is motor rated volt.
The two function parameters should set based on motor parameters. If no any special
requirement, no need to make any modification.
6.2 I/O parameter unit
Function parameter unit [F1.0]~[F1.1] defines external input signal upper
and lower limit as freq set signal. E300 series allows input analog volt
signal and analog current signal, analog current signal 0~20mA and
corresponding volt signal 0~10V.
F1.0 AI input lower volt Setting range： 0.0V ~ [F1.1]
F1.1 AI input upper volt Setting range： [F1.0] ~ 10.0 V
[F1.0] and [F1.1] define analog input channel AI range following switch-on signal real state.
F1.2 Min set freq Setting range：0.0Hz ~ [F1.3]
F1.3 Max set freq Setting range：[F1.2] ~ 1000 Hz

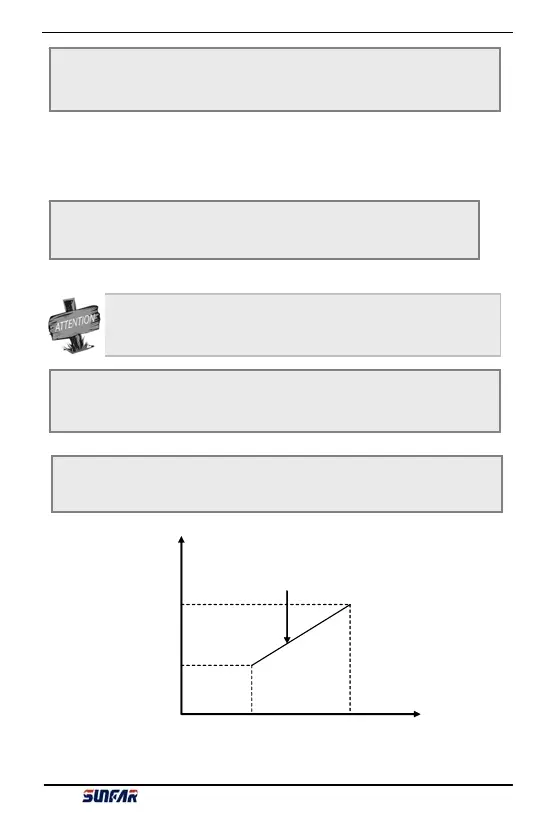

Analog input AI and set freq corresponding relationship shown as fig 6-6.
Freq
Fig 6-6 Corresponding relation diagram of analog input and set freq
[F1.0]
[F1.3]
[F1.2]
Output freq
[F1.1]
Volt
F0.14 Jog acc time Setting range：0.1 ~ 600.0 S
F0.15 Jog dec time Setting range：0.1 ~ 600.0 S
E300 Series Mini-type Integrated Universal Inverter Manual
