1 INTRODUCTION
1.1 Model Explanation
Product
E300
Mini-type
integrated
universal inverter
Volt Class
4
2
380V
220V
Applied Motor Power
（KW ）
0002
0004
0007
0015
0022
0037
0.2
0.4
0.7
1.5
2.2
3.7
Power Phase
T
S
3 PH
1 PH
E300- 4 T 0007 (B)
Derivative Model
B
Built-in braking
unit and RS485
communication
1.2 Inverter Model
Model Rated Capacity (KVA) Rated Output Current (A) Applied Motor Power (KW)
E300-2S0002(B) 0.69 1.8 0.25
E300-2S0004(B) 0.95 2.5 0.4
E300-2S0007(B) 1.7 4.5 0.75
E300-2S0015(B) 2.9 7.5 1.5
E300-2S0022(B) 3.8 10.0 2.2
E300-4T0007(B) 1.6 2.5 0.75
E300-4T0015(B) 2.8 4.2 1.5
E300-4T0022(B) 3.6 5.5 2.2
E300-4T0037(B) 5.6 8.5 3.7

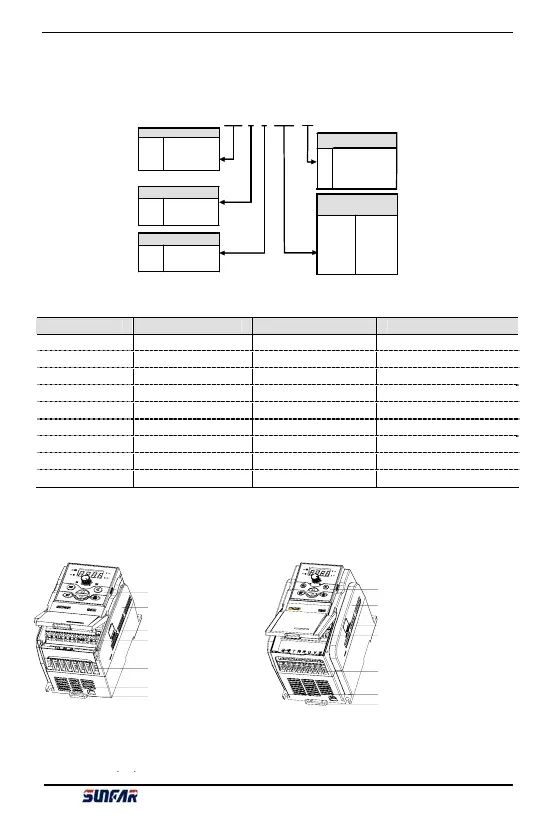

1.3 Appearance
1.3.1 Type One 1.3.2 Type Two
Fig 1-1 Type Ⅰ
Fig 1-2 Type ‖
Suitable model：E300-2S0002(B) /
E300-2S0004(B)
()
Operation
panel
Cover
ontrol loop
able input
Main loop
cable input
B ottom
ins ta llation h o le
Bottom side-
by-side button
RS485
inte rface
C
c
Operation
panel
Cover
RS485
interface
Control loop
able input
Main loop
cable input
Bottom side-by-
side buttome
c
Bottom
installation hole
Suitable model：E300-2S0007(B)～E300-2S0022(B)/
E300-4T0007(B)～E300-4T0037(B)
E300 Series Mini-type Integrated Universal Inverter Manual
