Sunfar E500-2S0004(B) - Optional Installation Dimensions

8 Inverter Installation
E500 Series Universal Low-Power Inverter
2.2.2 Installation dimensions of optional
Note: Assemble with M3 screws and pay attention to the whole site and opening
dimension within the dotted lines.
60.7
68.7
28.8
41.1
17.6
Fi
g

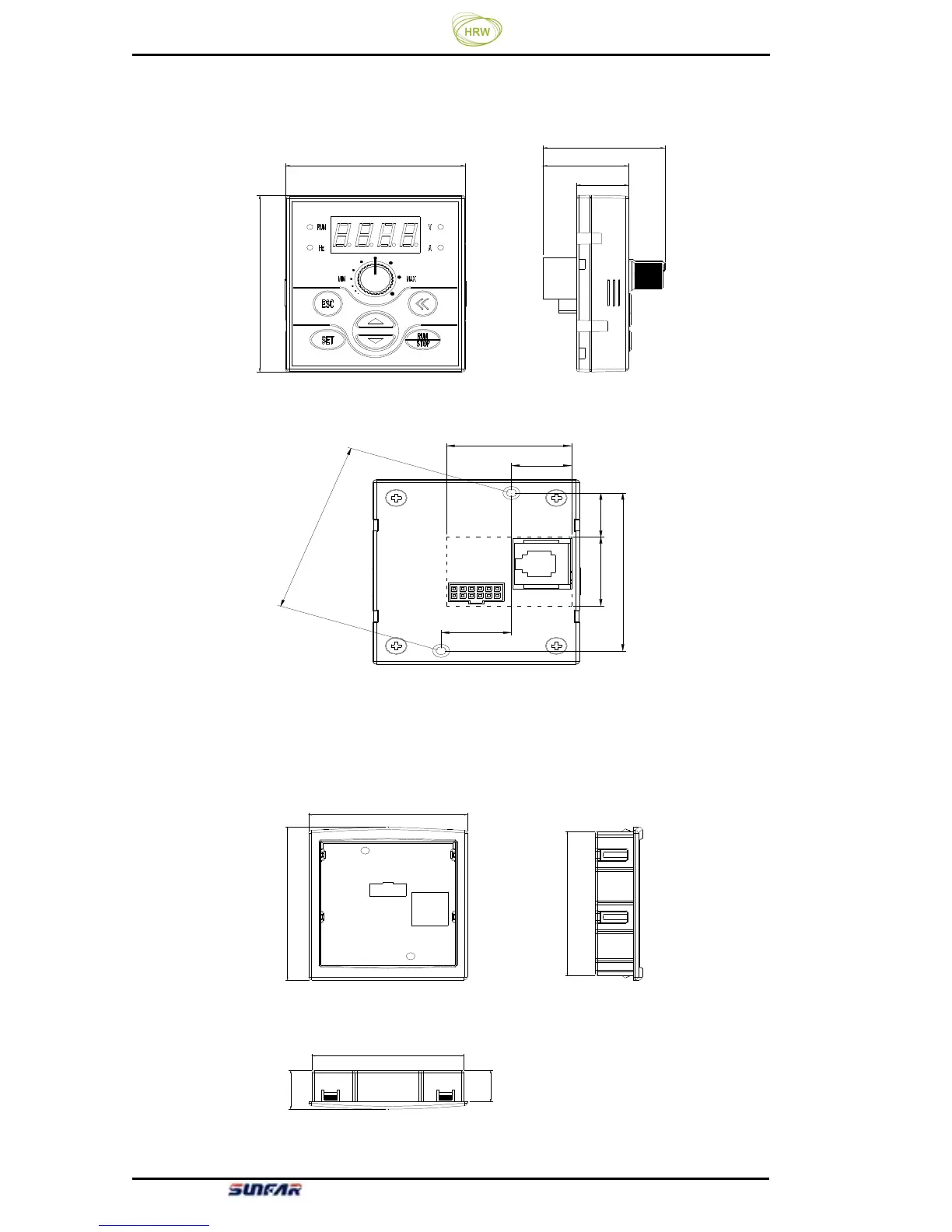

ure 2-2-C Small Ke
y
board Installation Dimension
Fi
g
ure 2-2-D Installation Dimension of Small Ke
y
board Base
6
2
.
2
58.7
20.7
16.425.5
17.6
36.7
85
72
80
69
17.3
21.4
Figure 2-2-E Installation Dimension of Small Keyboard Base
