Sunfar E500-2S0004(B) User Manual

Product Introduction 1
E500 Series Universal Low-Power Inverter
1 Product Introduction
1.1 Description of inverter model
E500 - 4 T 0007 (B)
Product series number
Universal
E500 low-power
inverter
Voltage grade
4 380V
2 220V
Power supply phase
T Three Phase
S Single Phase
Derived Product model
With braking
B unit and 485
communication
Adaptive motor power
(KW)
0004 0.4
0007 0.7
0015 1.5
0022 2.2
0030 3.0
0040 4.0
1.2 Model of inverter series
Inverter model
Rated
capacity
(KVA)
Rated output
current
(A)
Adaptive motor
power
(KW)
E500-2S0004(B) 1.1 3.0 0.4
E500-2S0007(B) 1.9 5.0 0.75
E500-2S0015(B) 2.9 7.5 1.5
E500-2S0022(B) 3.8 10.0 2.2
E500-2S0030(B) 5.3 14.0 3.0
E500-2S0040(B) 6.3 16.5 4.0
E500-4T0007(B) 1.6 2.5 0.75
E500-4T0015(B) 3.0 4.5 1.5
E500-4T0022(B) 3.6 5.5 2.2
E500-4T0030(B) 5.0 7.5 3.0
E500-4T0040(B) 6.3 9.5 4.0
1.3 Product appearance and name of components
操作面板
壳体
控制回路电缆入口
主回路电缆入口
底部安装孔
底部导轨扣

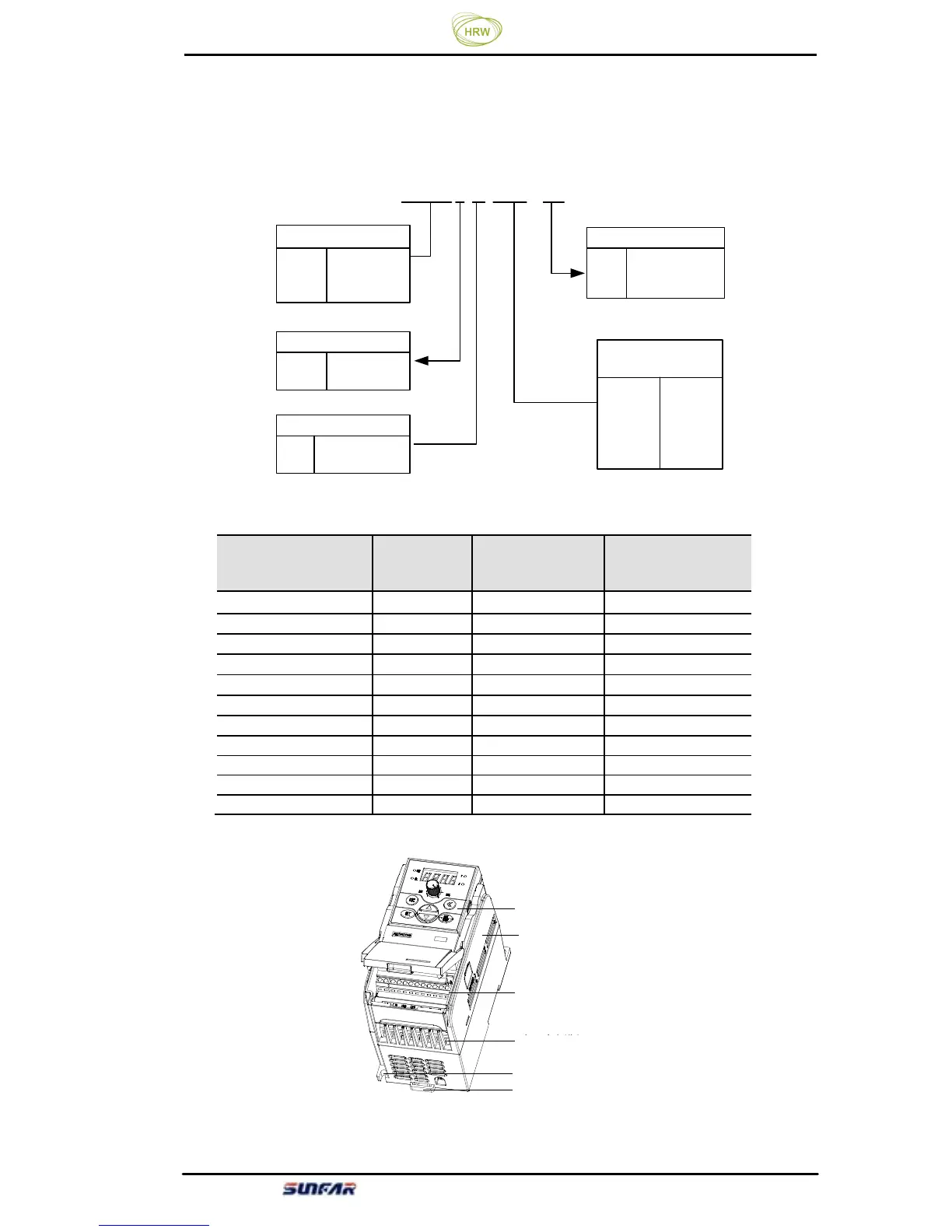

Figure 1-1 Appearance and Part Name of Category I Inverters
Applicable models: E500-2S0004 (B) / E500-2S0007 (B)
Bottom guide rail fastener
Operating panel
Housing
Main loop cable inlet
Bottom installation hole
Control loop cable inlet
