Operation manual of solar water controller SR868C8/SR868C8Q
---------------------------------------------------------------------------------------------------------------------------------------------------
- 31 -
4.6.5.1 tSTP Pump interval- time
Note: SR868C8 doesn’t have this function
Setup steps:

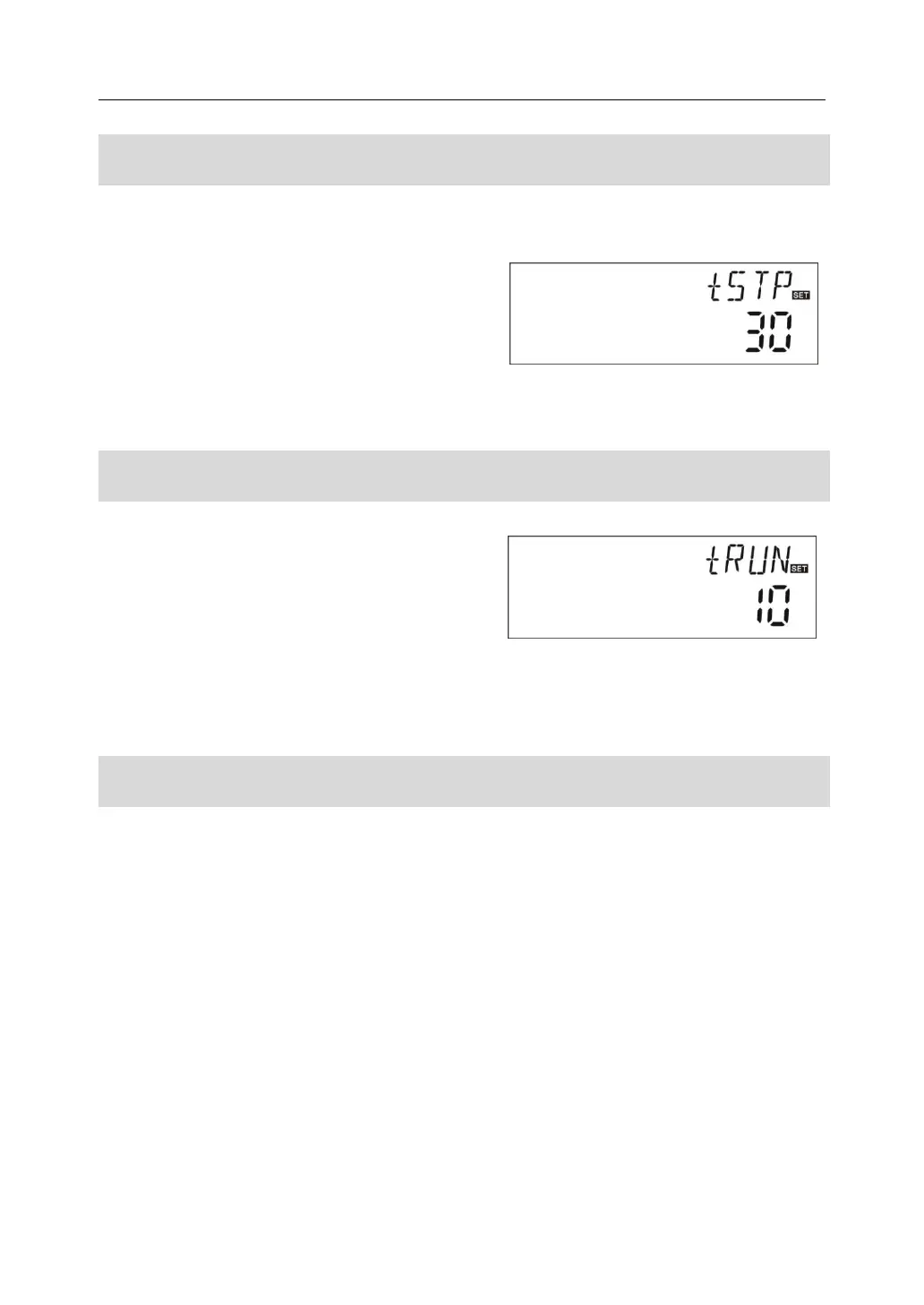

To access main menu FUN, then select submenu tSTP, “tSTP 30” displays on screen.
►Press “SET” button, parameter “30” blinks on
screen, factory set is “30” minutes.
►Press “+”“-” button to adjust the loading time,
adjustable range: 10～60 minutes,
►Press “ESC” button to exit the menu or wait
for 20 seconds to exit automatically, parameters are saved automatically.
4.6.5.2 tRUN Pump running time
Note: SR868C8 doesn’t have this function
Setup steps:
To access main menu FUN, then select
submenu tRUN, “tRUN 10” displays on screen.
►Press “SET” button, parameter “10” blinks on
screen, factory set is 15 second. .
►Press “+”“-” button to adjust the running time, adjustable range: 5～120 seconds
►Press “ESC” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
4.6.6 BYPA High temperature by-pass function (tank temperature automatically
adjusting)
Description:
High-temperature bypass role is independent of the solar system's operation; the extra
thermal energy of tank can be transferred to other application through this function, as
a result the constant tank temperature can be kept. In order to transfer this extra energy,
it needs an extra pump or electromagnetic valve. (Connect to output port R1).
For example:
If we set the temperature of bypass is 70
o
C, then when tank temperature (T3) rises up
to 71
o
C, this by-pass function is triggered, electromagnetic valve or circuit pump (R1)
and TD controlled circuit pump (P1) will be triggered simultaneously. When tank
temperature (T3) drops to 67
o
C, electromagnetic valve or circuit pump (R1) and TD
controlled circuit pump (P1) will be ceased simultaneously.
