4.3、GRID & LOAD & GEN connection

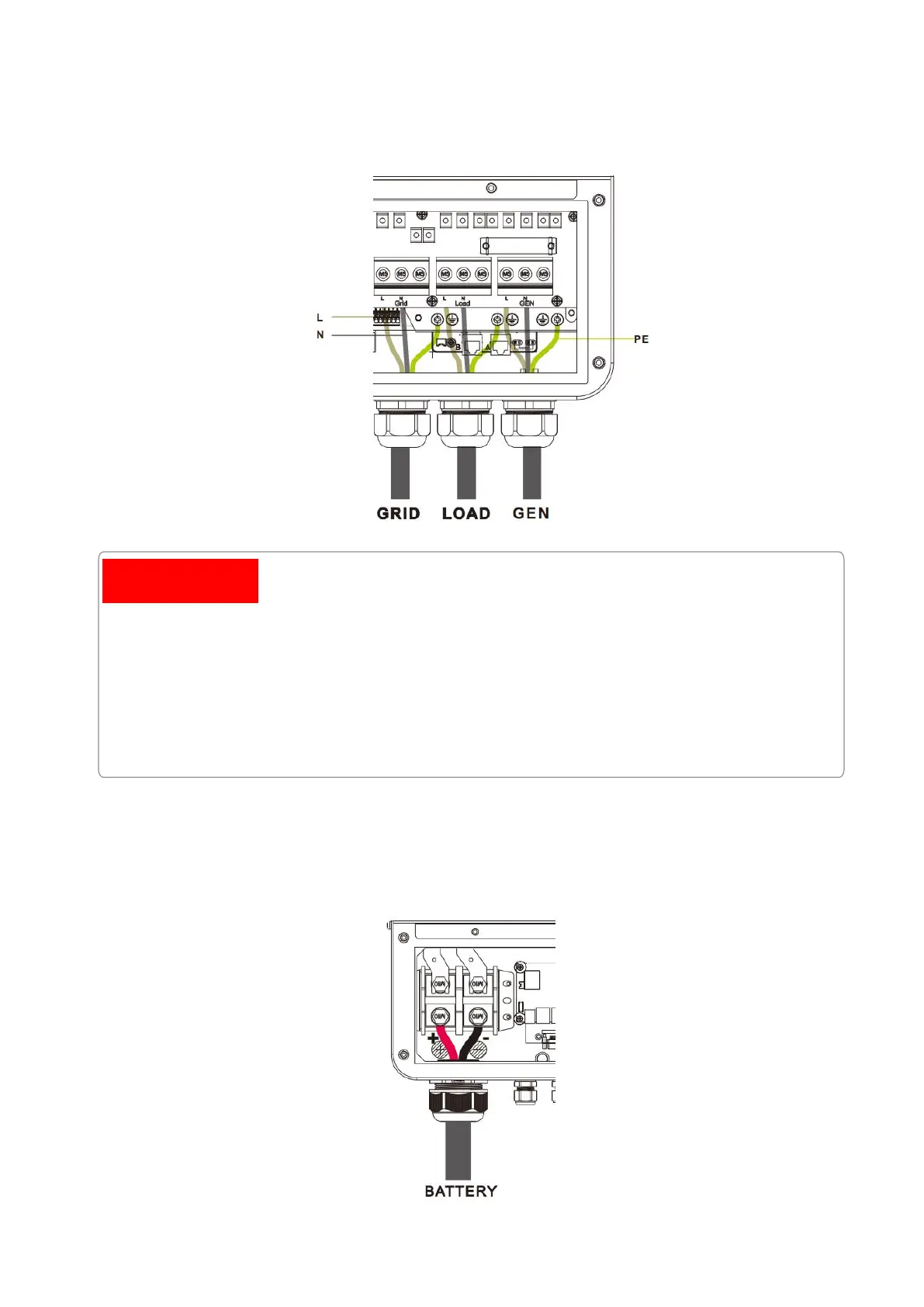

Connect the live,neutral and ground wires according to the cables’ position and order shown in the diagram
below.
4.4、Battery Connection
Connect the positive and negative cable of the battery according to the diagram below.
•
Before connecting AC inputs and outputs, the circuit breaker must be opened to avoid
the risk of electric shock and must not be operated with electricity.
• Please check that the cable used is sufficient for the requirements, too thin, poor quality
cables are a serious safety hazard.
