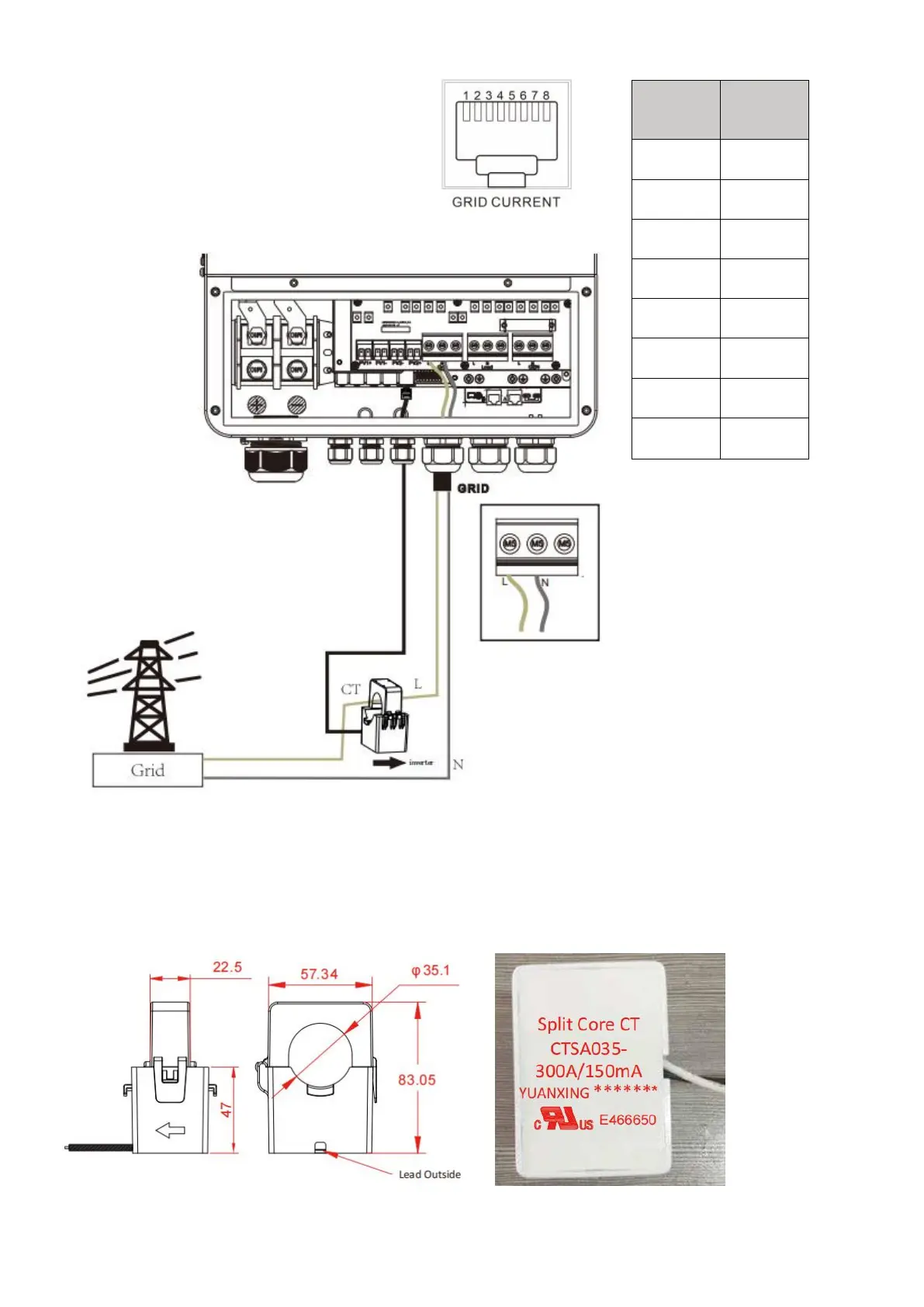

6.6 、External CT port
For external CT model connection
1. Split Core Current Transformer (CT) dimension: (mm)
2. Secondary output cable length is 4m.
3.The CT direction is “to inverter”
RJ45
Definition
Pin 1
CT3+
Pin 2
CT3-
Pin 3
/
Pin 4
CT2+
Pin 5
CT2-
Pin 6
/
Pin 7
CT1+
Pin 8
CT1-
