Hardware Assembling
Assembling Motor

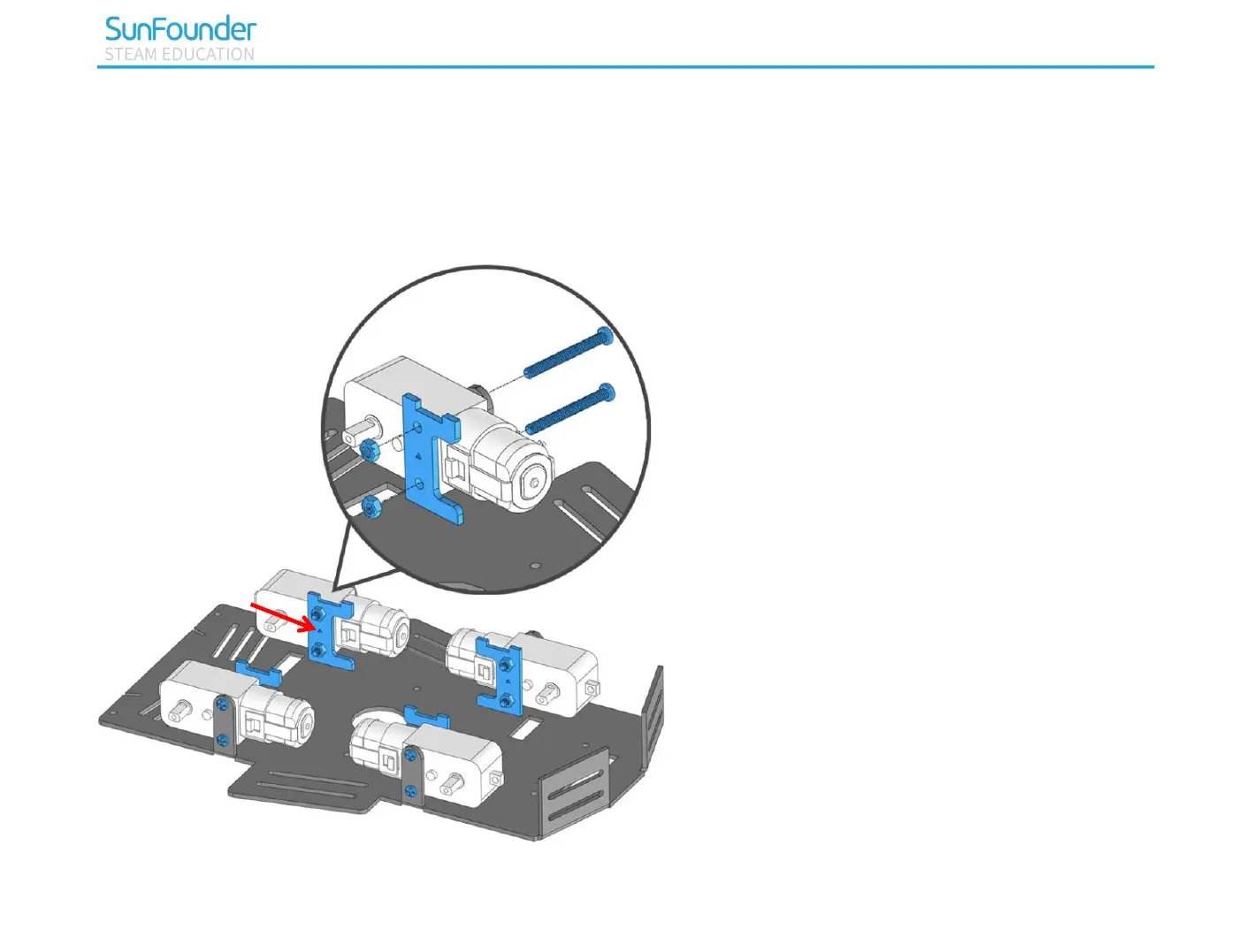

Assemble 4 motor to the bottom plate.
Note:
1) Keep the vertex angle of the triangle
sticking upward.
2) For the convenience of later assembly,
please mark the number(1, 2, 3, 4) on the
socket of the 4 motors.
Bottom Plate
M3*28mm Screw
M3 Nut
Support
1
3
2
4
