Photo-interrupter Module + Encoding Disk

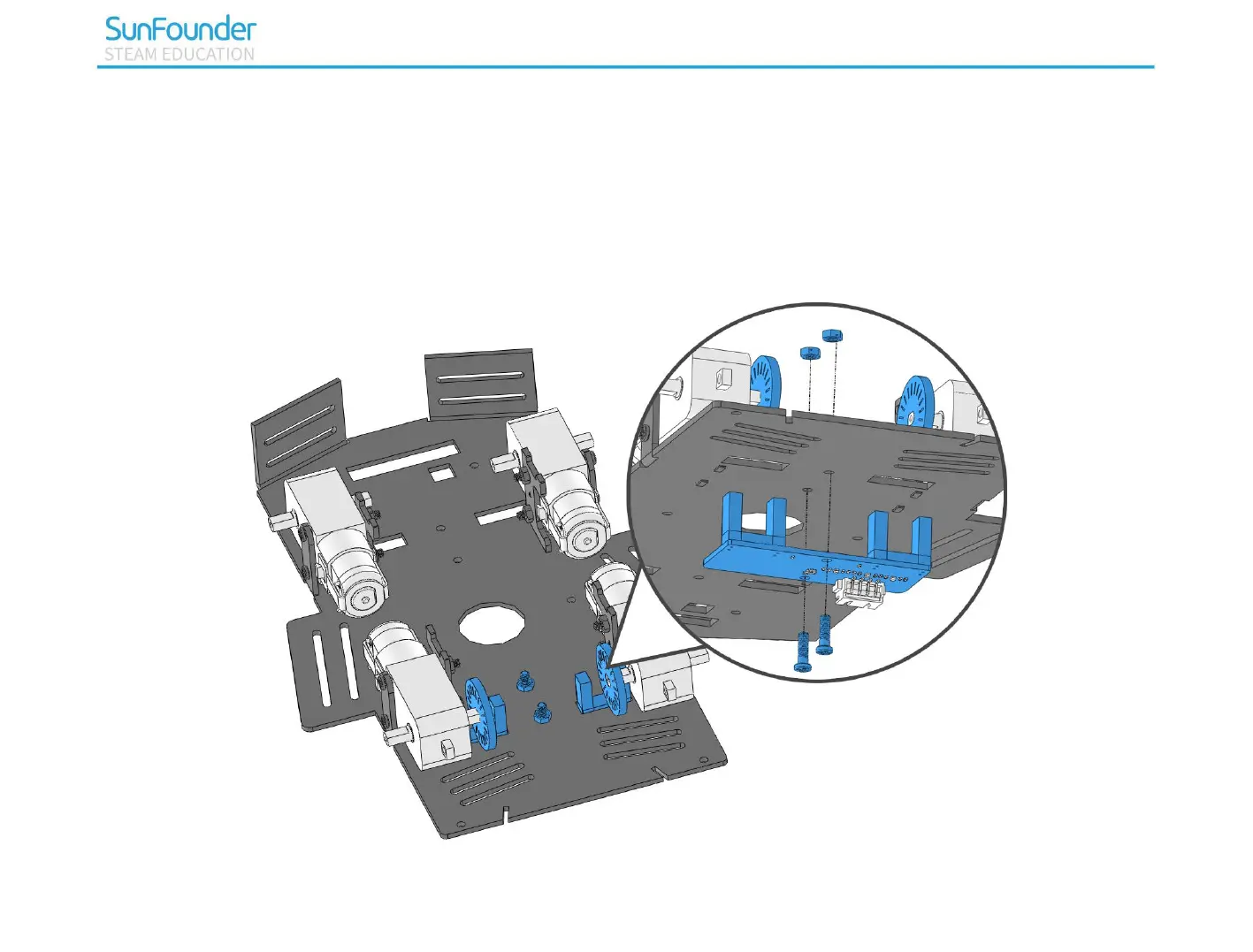

Insert the Encoding Disk into the motor, then assemble the Photo-interrupter module from bottom to top.
Note: Keep the Encoding Disk on the motor away from the Photo-interrupter module to avoid the
potential abrasion.
M3*8 Screw
Encoding Disk
M3 Nut
Photo-interrupter Module
