Connect Wires

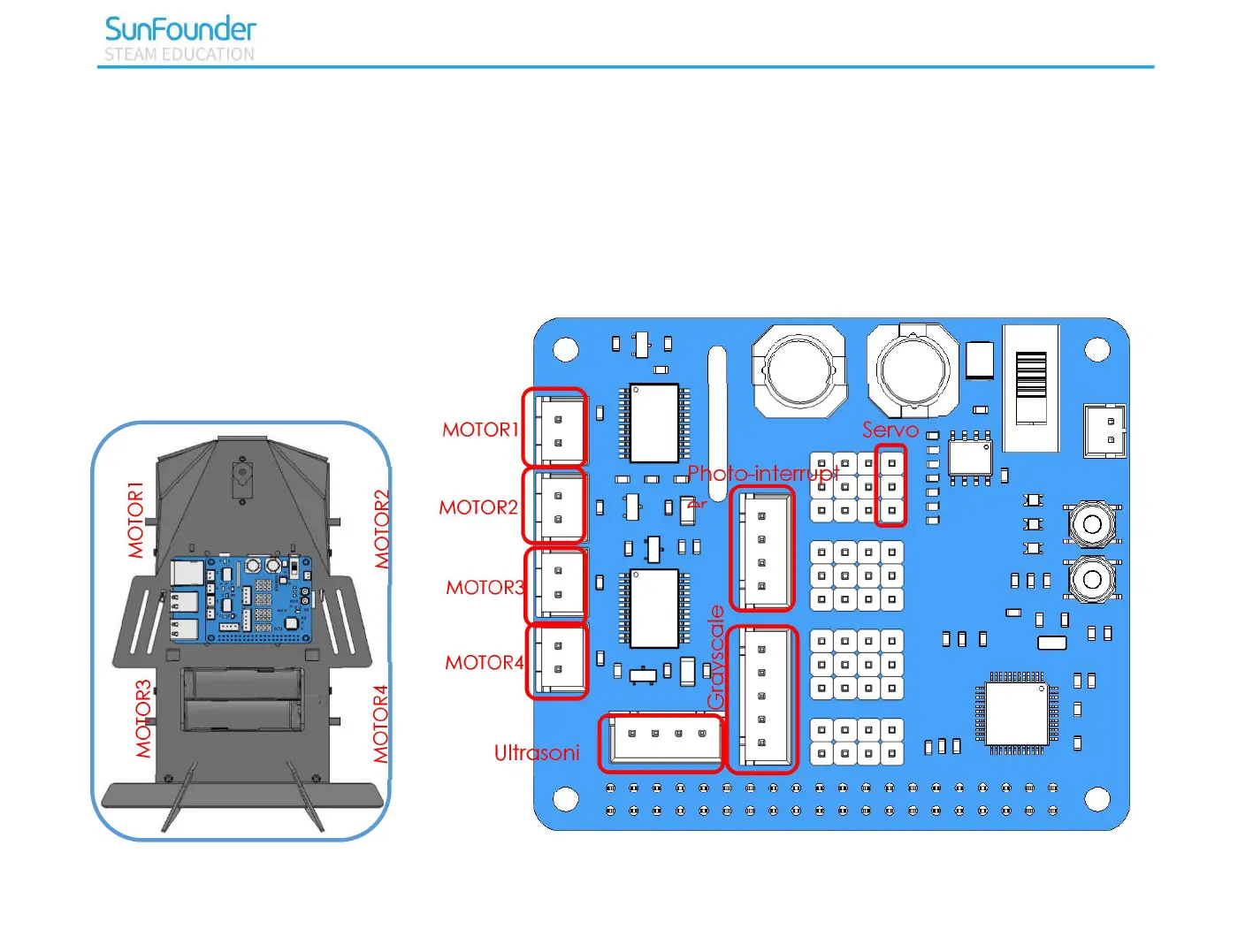

Connect the modules properly with the guidance of the marks on the 4WD-Hat board.
Note：For good appearance, you need to make sure that all the wires go through the bottom plate of the
car to the HAT on the upper plate of the car.
