Assembling Servo

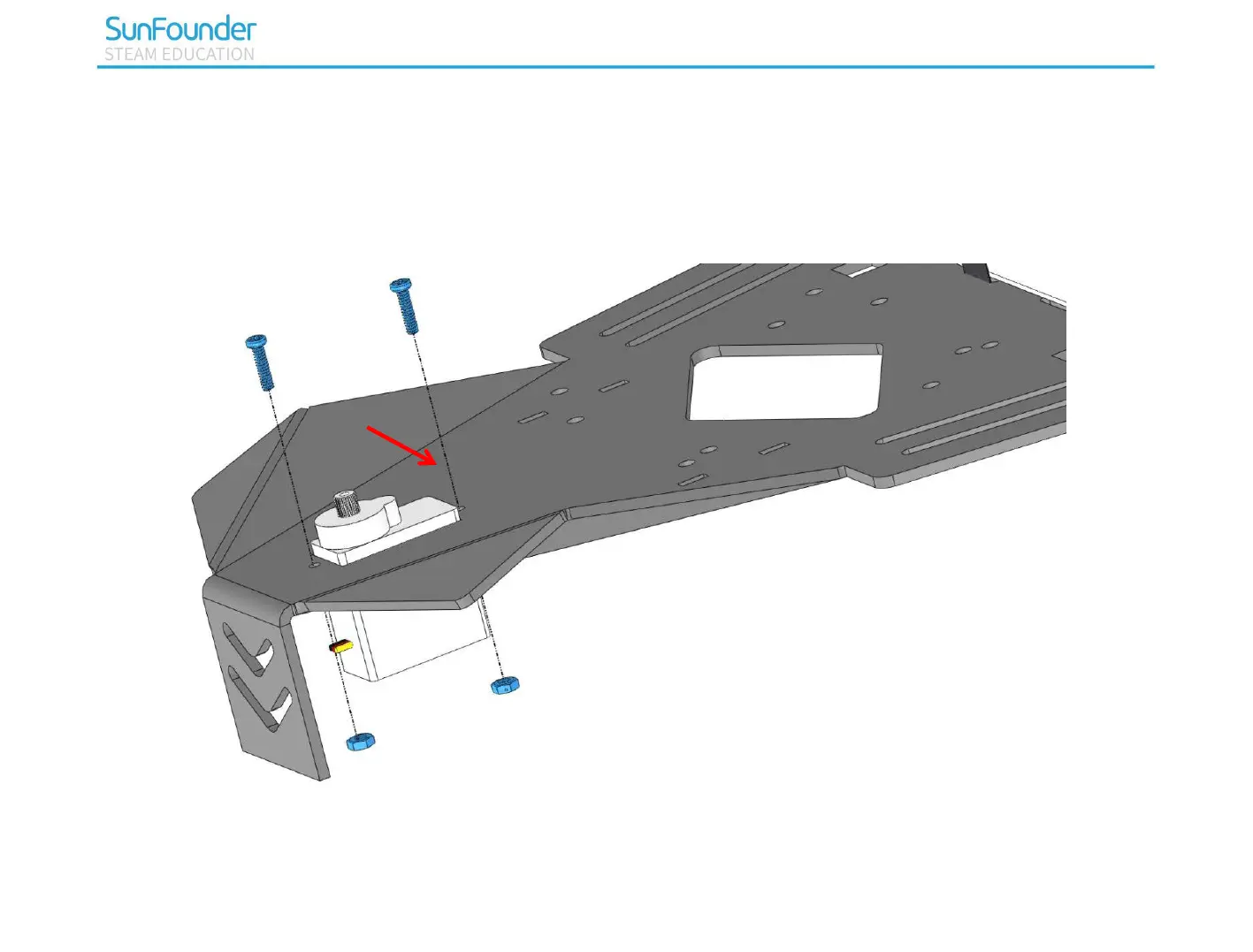

Assemble the servo from bottom to top.
Note: the output axis is to face outwards.
Top Plate
M2 Nut
M2*8 Screw
Servo
