2 Product Introduction User Manual
8

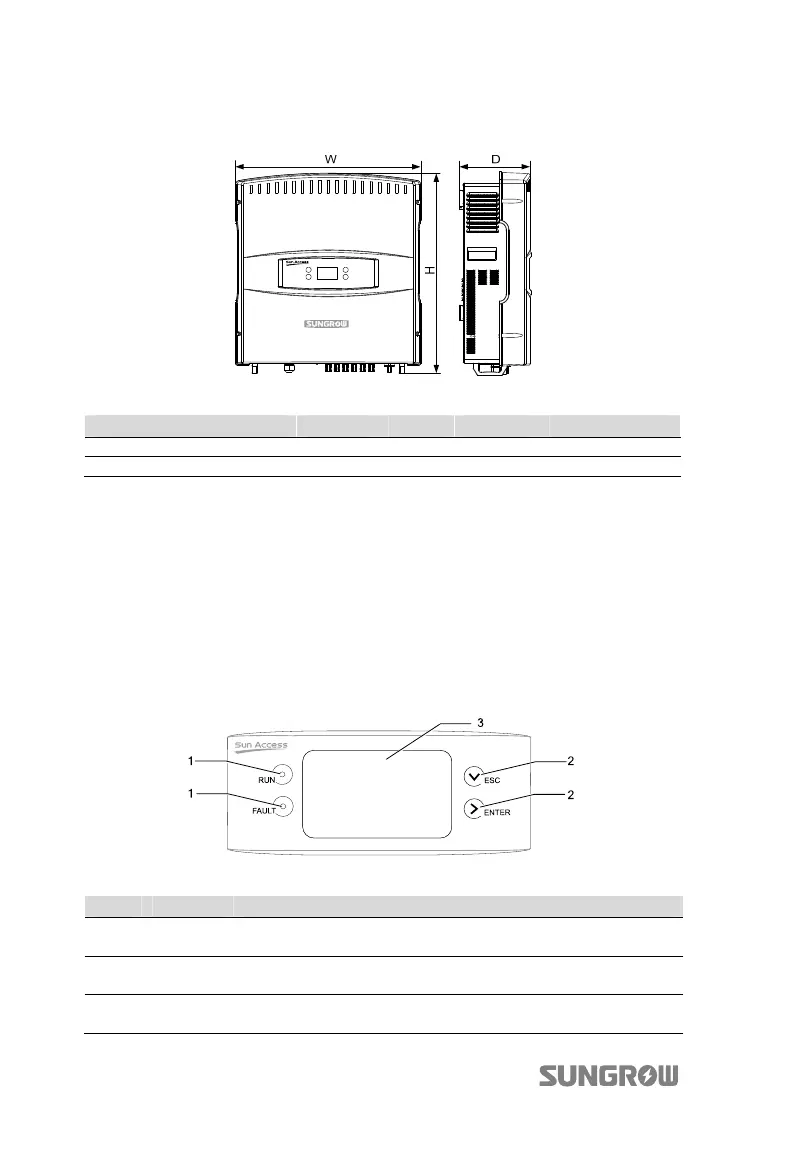

2.2.2 Dimensions and Weight of Inverter
Fig. 2-3 Outline Dimensions of Inverter
Type W(mm) H(mm) D(mm) Net weight(kg)
SG10KTL/SG12KTL/SG15KTL 648 686 246 50
SG20KTL 648 686 246 55
2.2.3 LCD Display Panel
As a human-computer interaction interface, LCD display panel comprises LED
indicators, buttons and LCD display screen on the front panel of the inverter
y
LEDs indicate the working status of the inverter
y
The current running information shown on the LCD display
y
Malfunction records shown on the LCD display
y
Inverter configuration by pressing the buttons
Fig. 2-4 LCD Display Panel
No. Name Description
1
LED
indicators
“RUN” and “FAULT”. Inverter current state can be known from
the two indicators. Detailed definition is shown in Tab. 2-1.
2 Buttons
Navigate in the LCD menu, select values and so on. Detailed
function is shown in Tab. 10-1.
3
LCD
screen
LCD screen can display current state of inverter, current running
information, history information and parameters to be set.
