User Manual 10 Operation of LCD Display Panel
67
The energy yields displayed by the LCD panel are indicative only.
For the actual yields, please refer to the electric energy meter.

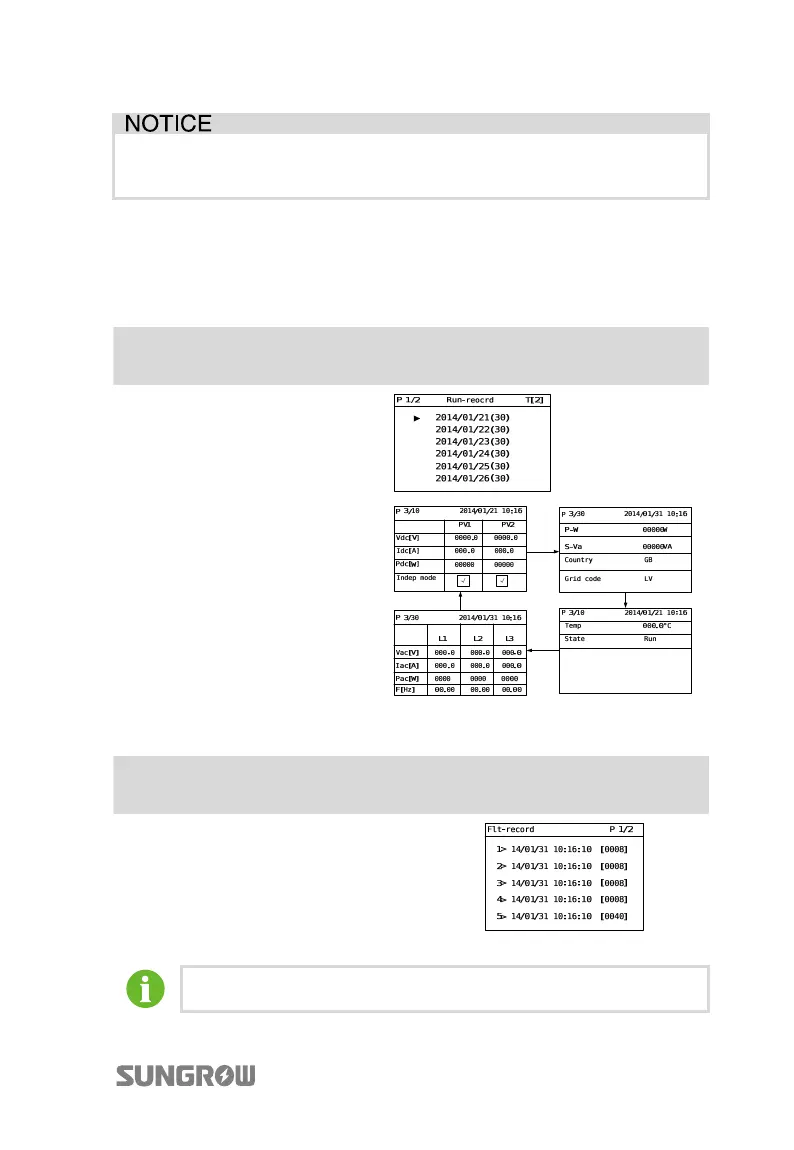

10.6 History Records
10.6.1 Running Information Records
Main Screen（Press ENTER） →Menu（Press j） → His-record （Press
ENTER）→Run-record（Press ENTER）
On the “Run-record” display, press j
to select the date you want to view.
Confirm by pressing ENTER.
Inverter shows historical running
information pages. Scroll pages by
pressing j. Change to the next
record by pressing h.
10.6.2 Fault Records
Main Screen（Press ENTER） →Menu（Press j） → His-record （Press
ENTER, Press j）→Flt-record（Press ENTER）
Inverter shows fault record pages. Scroll pages by
pressing j.
The inverter can only store at most 10 latest fault records.
