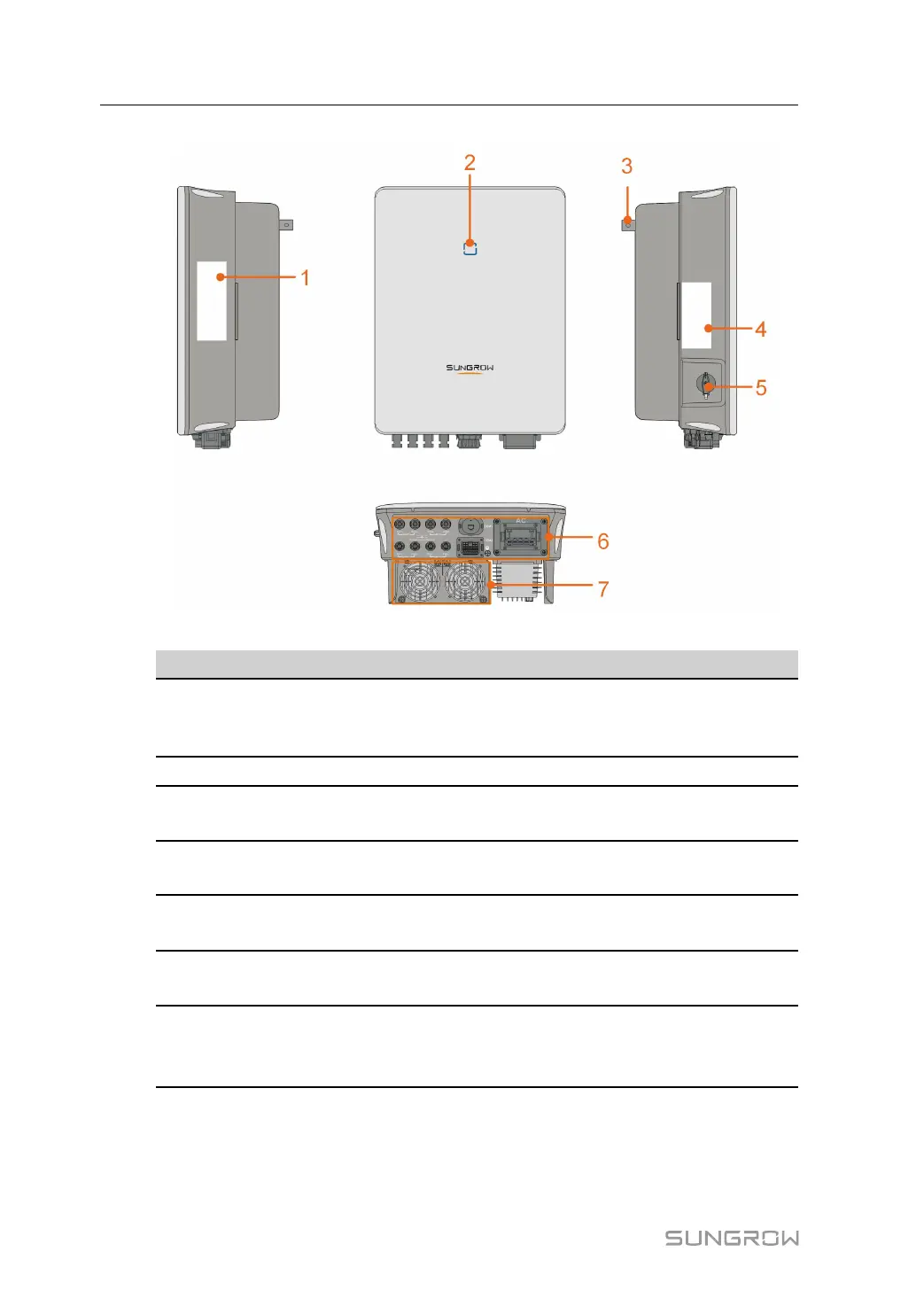

figure 2-2 Inverter Appearance
No. Name
Description
1
Nameplate
To clearly identify the product, including device model, S/N,
important specifications, marks of certification institutions,
etc.
2 LED indicator
To indicate the current working state of the inverter.
3
Hanger
Complement to the included wall-mounting bracket for hang-
ing the inverter.
4 Label
Information about COM2 pin definition, supported DRM
modes, etc.
5
DC switch
(Optional)
To safely disconnect the DC circuit whenever necessary.
6
Electrical connec-
tion area
DC terminals (SG20RT for example), AC terminal, additional
grounding terminal and communication terminals.
7 Fans
Optimization of the inverter’s heat dissipation. Only the
SG15RT, SG17RT, SG20RT, SG15RT-P2, SG17RT-P2 and
SG20RT-P2 are equipped with fans.
Dimensions
The following figure shows the dimensions of the inverter.
2 Product Description User Manual
