COS Ф
1.0
0.9
0.9
Power (P/Prated, %)
50%
100%
Inductive
Capacitive
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

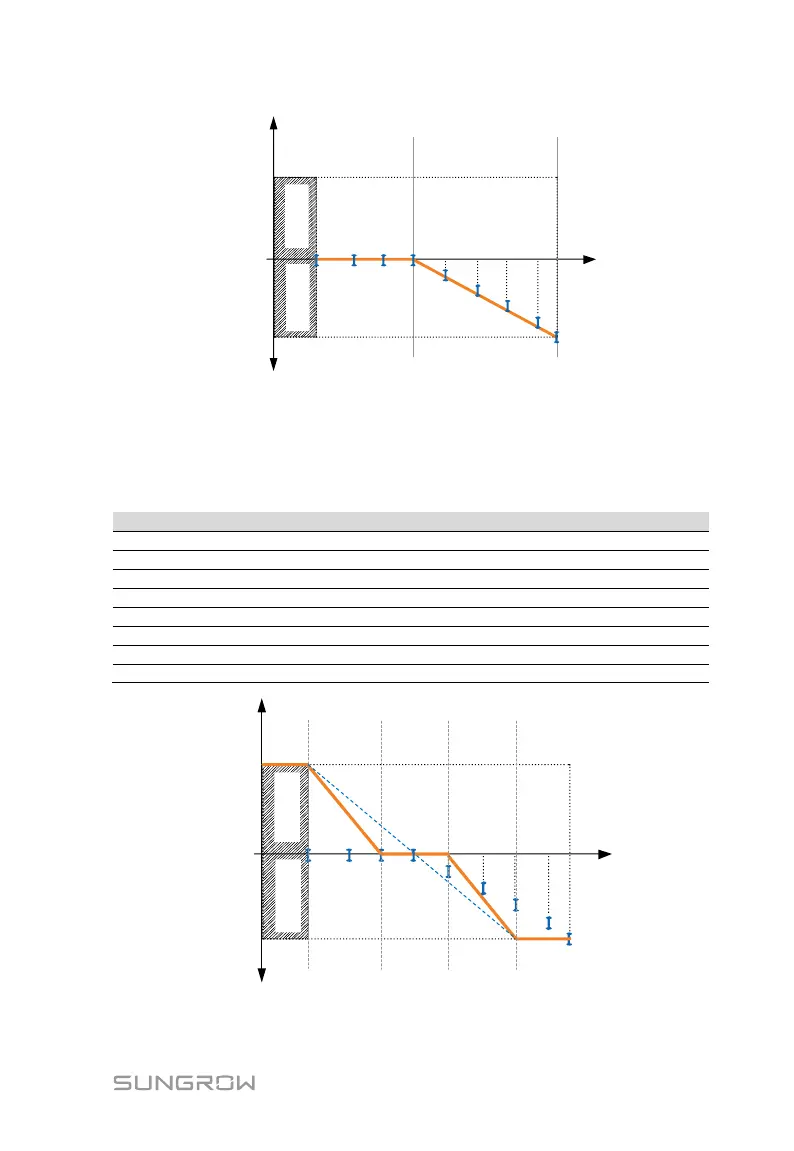

Fig. 2-15 Reactive Power Regulation Curve in Q(P) Mode

Q(P) curve for countries “NL”, “EU”, “PL”
Tab. 2-19 “Q(P)” Mode Parameters Explanation (“NL”, “EU”, “PL”)
Parameter
Explanation
Default
Range
QP_P1
Active power at point P1 (in %)
20 %
0–100 %
QP_P2
Active power at point P2 (in %)
40 %
0–100 %
QP_P3
Active power at point P3 (in %)
60 %
0–100 %
QP_P4
Active power at point P4 (in %)
80 %
0–100 %
QP_PF1
Power factor at point P1
0.900
0.800–1.000
QP_PF2
Power factor at point P2
1.000
0.800–1.000
QP_PF3
Power factor at point P3
1.000
0.800–1.000
QP_PF4
Power factor at point P4
0.900
0.800–1.000
COS Ф
1.0
0.9
0.9
Power (P/Prated, %)
40%
Inductive
Capacitive
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
60% 80%20%
Fig. 2-16 Reactive Power Regulation Curve in Q(P) Mode
