Sungrow SG50CX Quick Guide

TD_20210219_SG30-50-110CX Commissioning Guide_V1.1 Page 3 of 21
© SUNGROW AUSTRALIA GROUP PTY LTD All rights reserved.
As we continuously improving our products, changes to this document may occur without notice.
1 Introduction
This quick guide is showing how to commission the SG30/50/110CX inverters and it
is to be read in conjunction with the Sungrow’s User Manuals.
Where more than one inverter, or an energy meter installed, the commissioning and
iSolarCloud connection is done via a Logger1000(Up to 30 devices) and EyeM4(Up to
10 devices).
For export control and load consumption, an energy meter (DTSD1352-C/1(6)A with
external CT) needed to be connected.
All of the components are connected via daisy-chain as per standard RS485 topology.

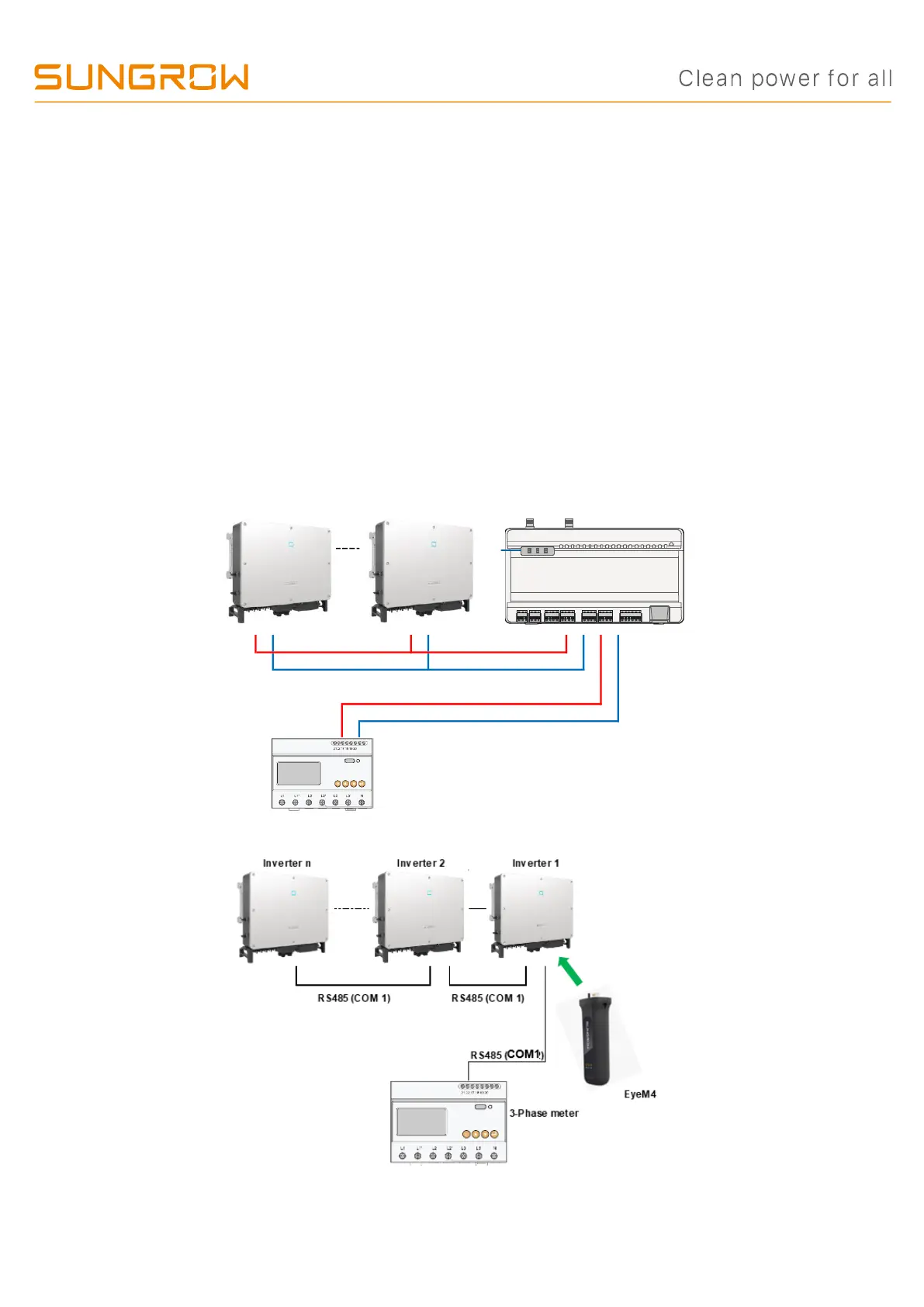

Logger 1000
RS485 A
RS485 B
RS485 A
RS485 B
3-Phase meter
Inverter 1
Inverter n

Sungrow SG50CX Specifications

General

Max. DC Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Max. Input Current per MPPT	26 A
Number of MPPTs	4
Rated AC Output Power	50 kW
Max. AC Output Current	76 A
Frequency	50 Hz / 60 Hz
Efficiency	98.6%
Start Voltage	200 V
Number of DC Inputs per MPPT	2
Max. AC Apparent Power	55 kVA
AC Voltage Range	310 V - 480 V
Power Factor at Rated Power	1
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
THDi	< 3%
DC Switch	Yes
AC Surge Protection	Type II
DC Surge Protection	Type II
Protection Class	I
Cooling Method	Smart forced air cooling
Protection Degree	IP66
Protection Level	IP66
Operating Temperature Range	-25°C to +60°C
Humidity	0-100%
AC Output Voltage	3 / N / PE, 220 V / 380 V, 230 V / 400 V
