User Manual 10 Appendix I: LCD Operation
83
It is recommended to set the time period in off-peak tariff
time. The time period 1 is in priority to the time period 2 if two
periods overlap.
The charging energy comes from the excess PV energy in
priority to the energy from the grid. The inverter will sink the
charging power from the grid in the case of PV energy
shortage.
When there is no PV power, the import power from the grid
charges the energy system during the time period until the
target SOC is reached.

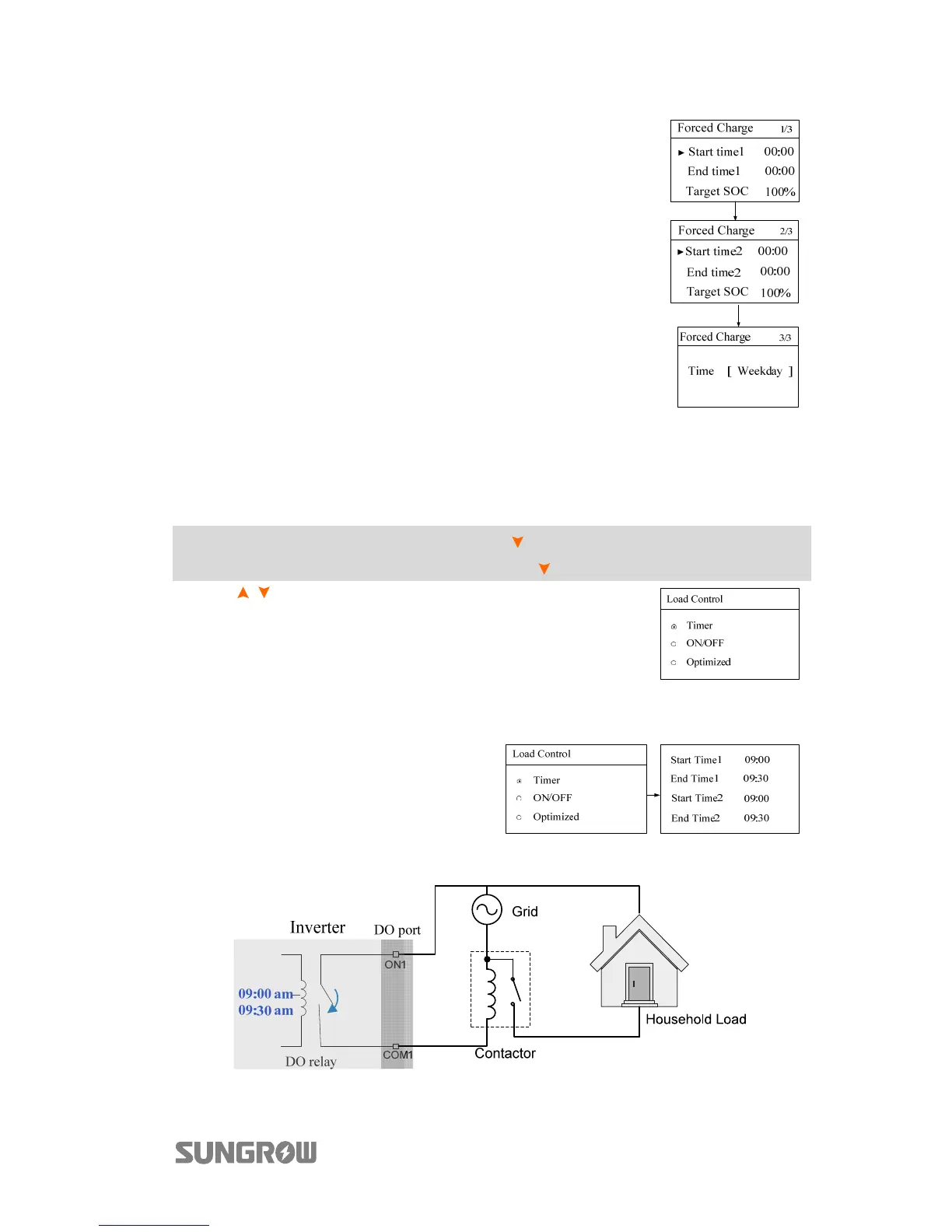

10.7.7 Setting Load Control
After connecting the load to the DO terminal, a relay control signal will be
transmitted. Users can flexibly set the control mode via the LCD menu.
Main Screen (Press ENT)→Menu (Press ×2)→Settings (Press ENT)→Input
password 111 (Press ENT)→Settings (Press ×6)→Load Control (Press ENT)
Press
/ to choose the control mode. Press
ENT to confirm.
Timer Control
In this mode, set the Start time and
End time, the system will control the
load operation during the interval.
Take 09:00 am
–09:30 am as an
example.
Fig. 10-2 DO Operation in Timer Control
