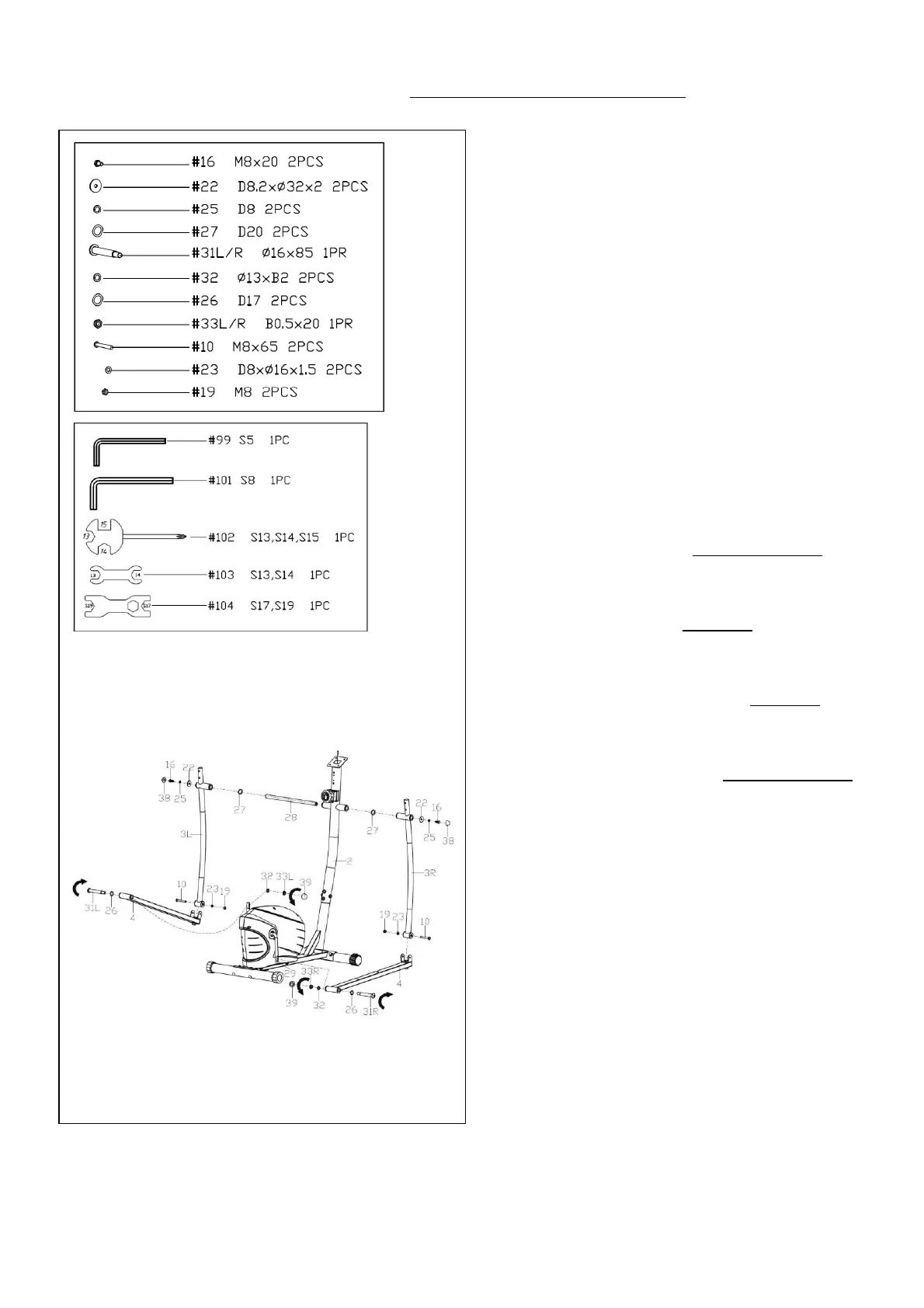

STEP 3:
Remove 2 Hex Screws (No. 16), 2 Spring
Washers (No. 25), 2 Flat Washers (No. 22) and 2
Wave Washers (No. 27) from the Long Axle (No.
28) by using Spanner (No. 102) and Spanner
(No. 103).
Insert the Long Axle (No. 28) into the Handlebar
Post (No. 2), then insert 2 Wave Washers (No.
27) that were just removed into the both sides of
Long Axle (No. 28). Attach the 2 Swing Bars (No.
3L/R) to both sides of the Long Axle (No. 28)
using 2 Flat Washers (No. 22), 2 Spring
Washers (No. 25) and 2 Hex Screws (No. 16)
that were just removed. Pre-secure with Spanner
(No. 102) and Spanner (No. 103).
NOTE: Do not completely tighten the Hex Screws
(No. 16) yet.
Attach 1 Pedal Support Tube (No. 4) to the left
side of the Crank (No. 29) with 1 Left Hinge Bolt
(No. 31L) and 1 Wave Washer (No. 26). Turn the
Left Hinge Bolt (No. 31L) counter-clockwise with
your hand. Then attach 1 Spring Washer (No. 32)
and 1 BLACK color Left Nylon Nut (No. 33L) to
the end of Left Hinge Bolt (No. 31L) and turn the
Left Nylon Nut (No. 33L) clockwise.
Attach 1 Pedal Support Tube (No. 4) to the right
side of the Crank (No. 29) with 1 Right Hinge
Bolt (No. 31R) and 1 Wave Washer (No. 26). Turn
the Right Hinge Bolt (No. 31R) clockwise with
you hand. Then attach 1 Spring Washer (No. 32)
and 1 WHITE color Right Nylon Nut (No. 33R) to
the end of Right Hinge Bolt (No. 31R) and turn
the Right Nylon Nut (No. 33R) counter-clockwise.
NOTE: Please do not fully tighten at this time.
The Left Hinge Bolt (No. 31L) is labeled “L”, while
the Right Hinge Bolt (No. 31R) is labeled “R”.
Attach 2 Swing Bars (No. 3L/R) to 2 Pedal
Support Tubes (No. 4) with 2 Bolts (No. 10), 2
Flat Washers (No. 23) and 2 Nylon Nuts (No. 19)
using Allen Wrench (No. 99) and Spanner (No.
102).
Note: Please do not fully tighten at this time.
Firstly, fasten 2 Nylon Nuts (No. 33L/R) and 2
Hinge Bolts (No. 31L/R) using Allen Wrench
(No. 101) and Spanner (No. 104).
Secondly, fasten 2 Bolts (No. 10) and 2 Nylon
Nuts (No. 19) using Allen Wrench (No. 99) and
Spanner (No. 102).
Then fasten 2 Hex Screws (No. 16) using
Spanner (No. 102) and Spanner (No. 103).
Finally, cover 2 Nut Caps (No. 38) and 2 Nut
Caps (No. 39).
NOTE: Ensure that all bolts and washers are in
place and partially threaded in before completely
tightening any of them.
