Sunny SF-E1405 - Page 10

10
F

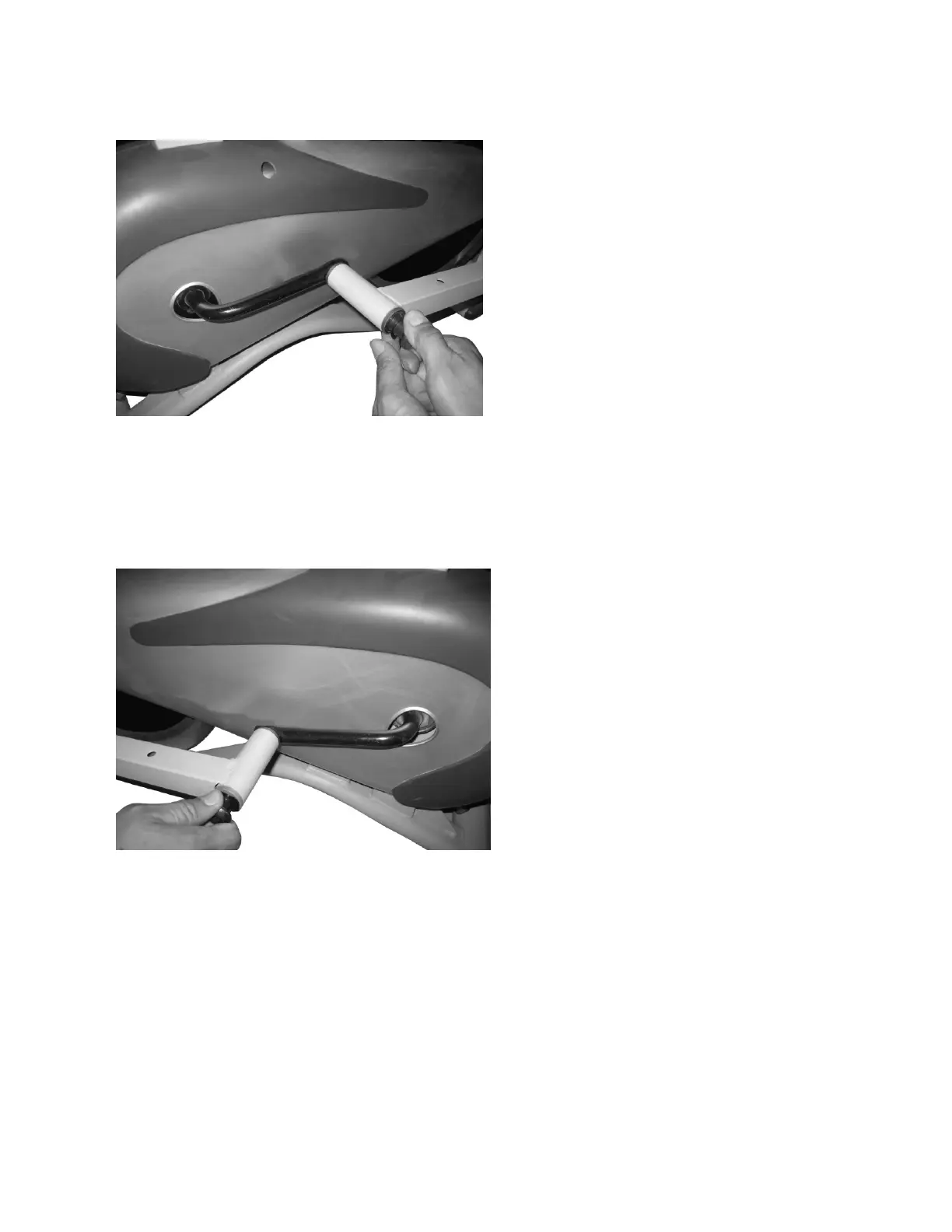

For easier assembly of Left Hinge
Bolt (No.1) you can turn the
Crank (No. 51) to the front and
make it horizontal. Doing this will
allow you to easily screw the Left
Hinge Bolt (No. 1) into the hole of
the Crank (No. 51).
.
F
For easier assembly of the Right
Hinge Bolt (No. 9) you can turn
the Crank (No. 51) to the front
and make it horizontal. Doing this
will allow you to easily screw the
Right Hinge Bolt (No. 9) into the
hole of the Crank (No. 51).
(
N
o
.
9
)
,
y
o
u
c
a
n
t
u
r
n
t
h
e
C
r
a
n
k
(
N
o
.
5
1
)
t
o
t
