Sunny SF-E2310 - Step 4: Attach Swing Rods and Pedals

9
S8
S8-14-22
S22
23
26
20
28
43
45
23
26
20
28
46
44
22
22
22
22
5
4
7
8
80
79
31
31
110
110
6L
6R
STEP: 4

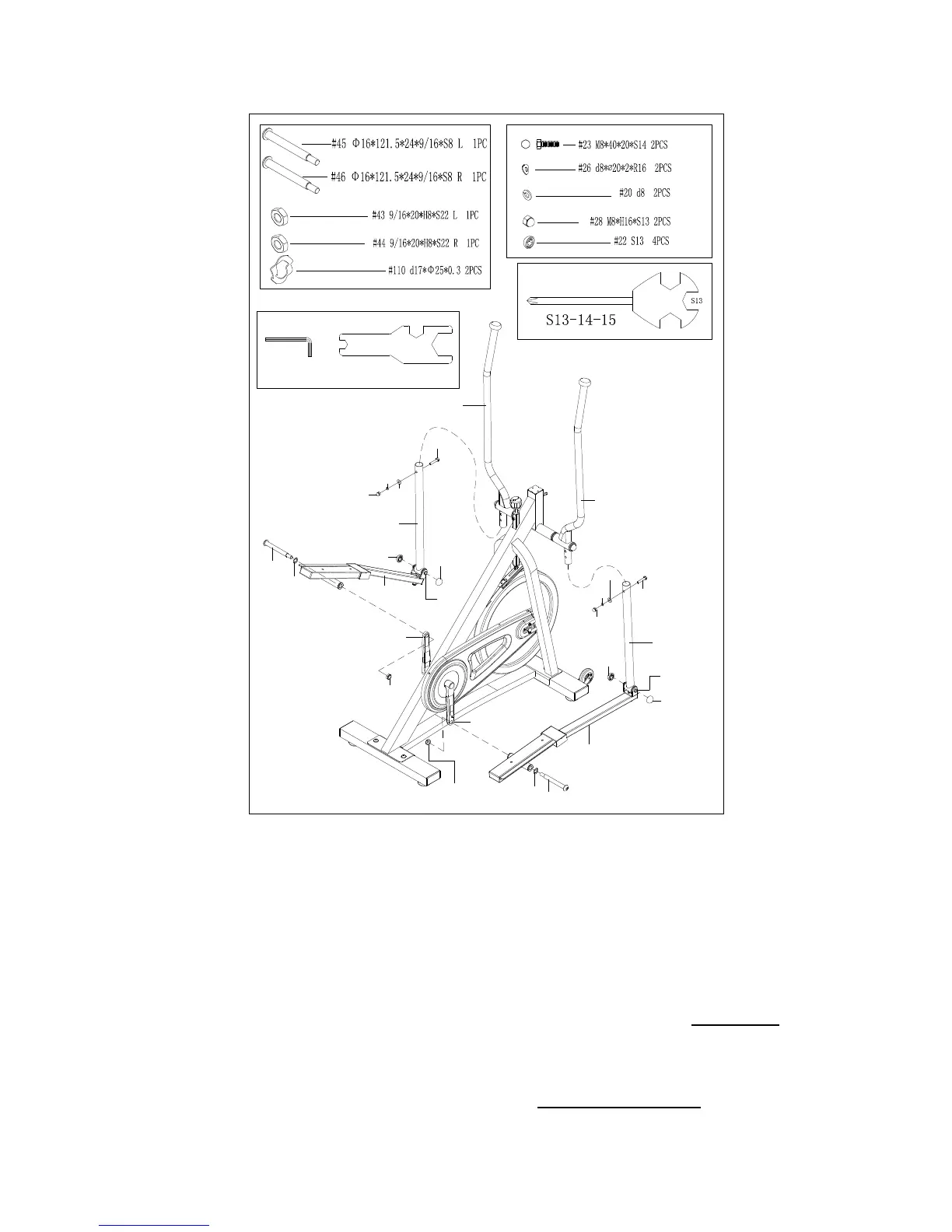

Attach the Left and Right Swing Rods (No. 6/L and No. 6/R) to the Left and Right
Handlebars (No. 4 and No. 5) using 2 Bolts (No. 23), 2 Arc Washers (No. 26), 2
Spring Washers (No. 20) and 2 Nuts (No. 28), secure with Spanner (No. 109).
Attach the Right Pedal Post (No. 8) to the Big Crank Wheel (No. 79) “right crank arm”,
using the Right Pedal Bolt (No. 46), Wave Washer (No. 110) and Right Nut (No. 44).
When tightening the Right Pedal Bolt (No. 46) you must turn the bolt clockwise.
Attach the Left Pedal Post (No. 7) to the Left Crank Arm (No. 80), using the Left
Pedal Bolt (No. 45), Wave Washer (No. 110) and Left Nut (No. 43). When tightening
the Left Pedal Bolt (No. 45) you must turn the bolt counter-clockwise.
Attach End Caps (No. 22) over Bolts (No. 31) on each side.
