Sunny SF-E3608 - Assembly Instructions; Step 1: Front and Rear Stabilizer Attachment; Step 2: Front Cover and Handlebar Post Installation

ASSEMBLY INSTRUCTIONS

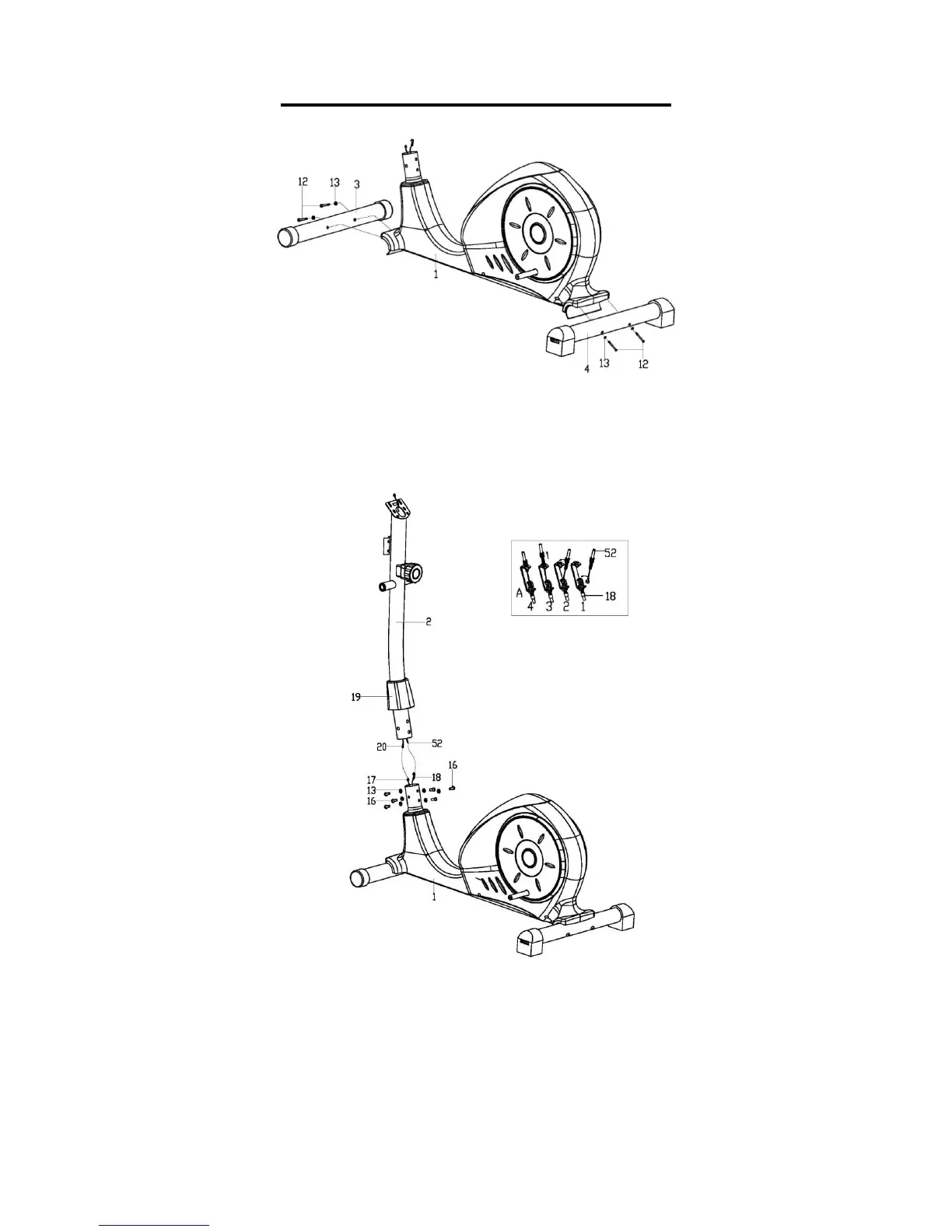

STEP 1:
Attach the Front Stabilizer (No. 3) and the Rear Stabilizer (No. 4) to the Main
Frame (No. 1) using 4 Hexagon Bolt (No. 12) and 4 Arc Washers (No. 13).
STEP 2:
Attach the Front Cover (No. 19) onto the Handlebar Post (No. 2). Connect the
Extension Wire (No. 20) to the Sensor Wire (No. 17) then connect the Tension
Wire (No. 18) to the Tension Controller (No. 52). Attach the Handlebar Post (No.
2) into the Main Frame (No. 1) and secure using 6 Inner Hexagon Bolt (No. 16)
and 6 Arc Washer (No. 13).
Do not fully tighten the bolts yet.
5
