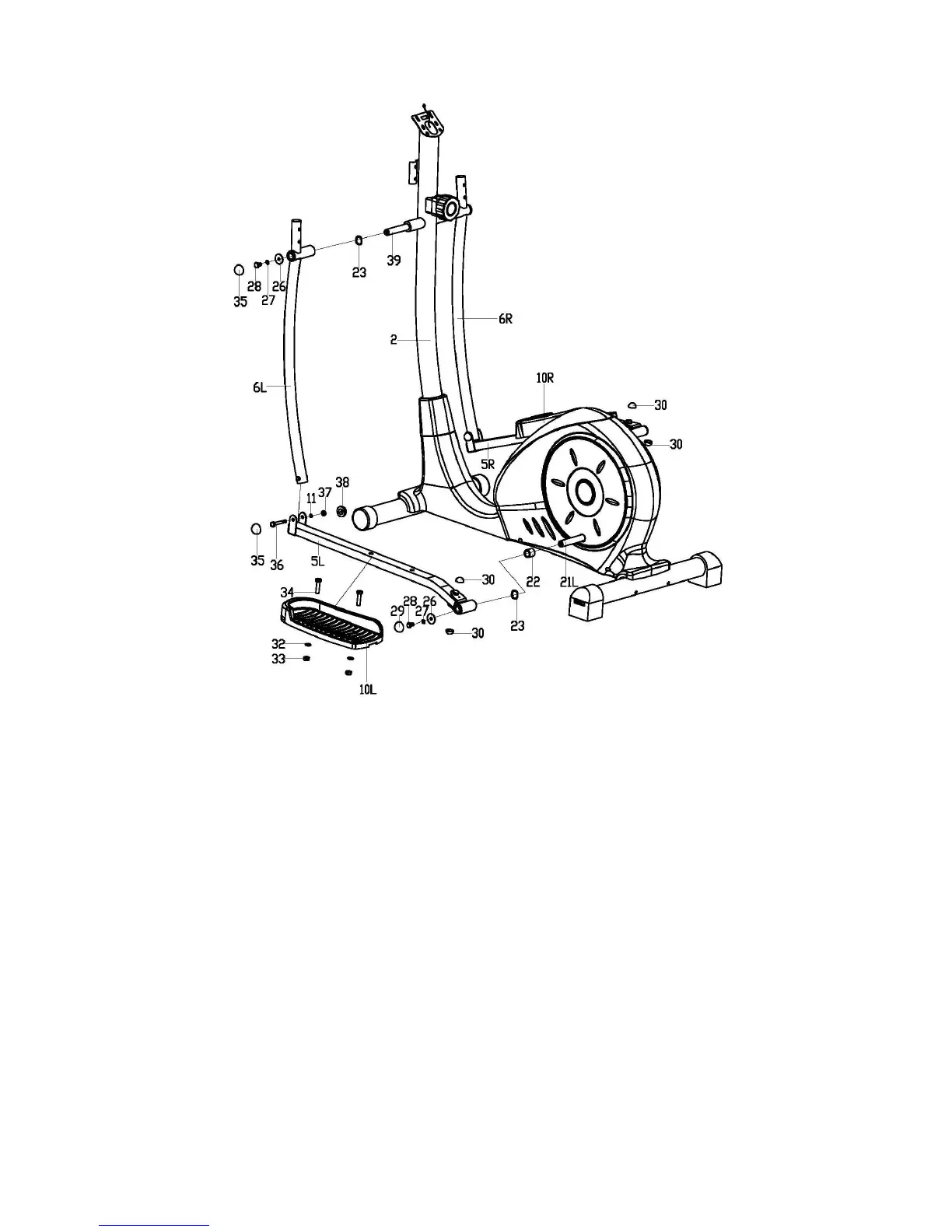

STEP 3:
Attach the Left & Right Swing Tube (No. 6L/R) to the shaft on Handlebar Post (No.
2) with Bolt (No. 28), Spring Washer (No. 27), Flat Washer (No. 26), Wave
Washer (No. 23) and Long Axle (No. 39), but do not fully tighten the bolts yet.
Attach the Left Pedal Support (No. 5L) to the Left Crank (No. 21L) with Bolt (No.
28), Spring Washer (No. 27), Spacer (No. 22), Flat Washer (No. 26), and Wave
Washer (No. 23), do not tighten them yet. Use the same instructions to attach the
Right Pedal Support (No. 5R) to the Right Crank (No.21R).
Connect the Swing Tube (No. 6L/R) and Pedal Support (No. 5L/R) with Hex Bolt
(No. 36), Flat Washer (No. 11), and Nylon Nut (No. 37) then secure them tightly
with Hex Bolt (No. 36) and Hex Bolt (No. 28). Cover the bolts using Round Cap
(No. 29), Round Cap (No. 30), Round Cap (No. 35) and Round Cap (No. 38).
Attach the Left & Right Pedals (No. 10L/R) to the corresponding Pedal Support
(No. 5L/R) with Hex Bolt (No. 34), Flat Washer (No. 32) and Nylon Nut (No. 33).
Securely tighten all the Inner Hexagon Bolts (No. 16) on the Handlebar Post (No.
2).
