Installation - Assembly Procedures
26525-01A
Attaching Hinge Brackets to Bench

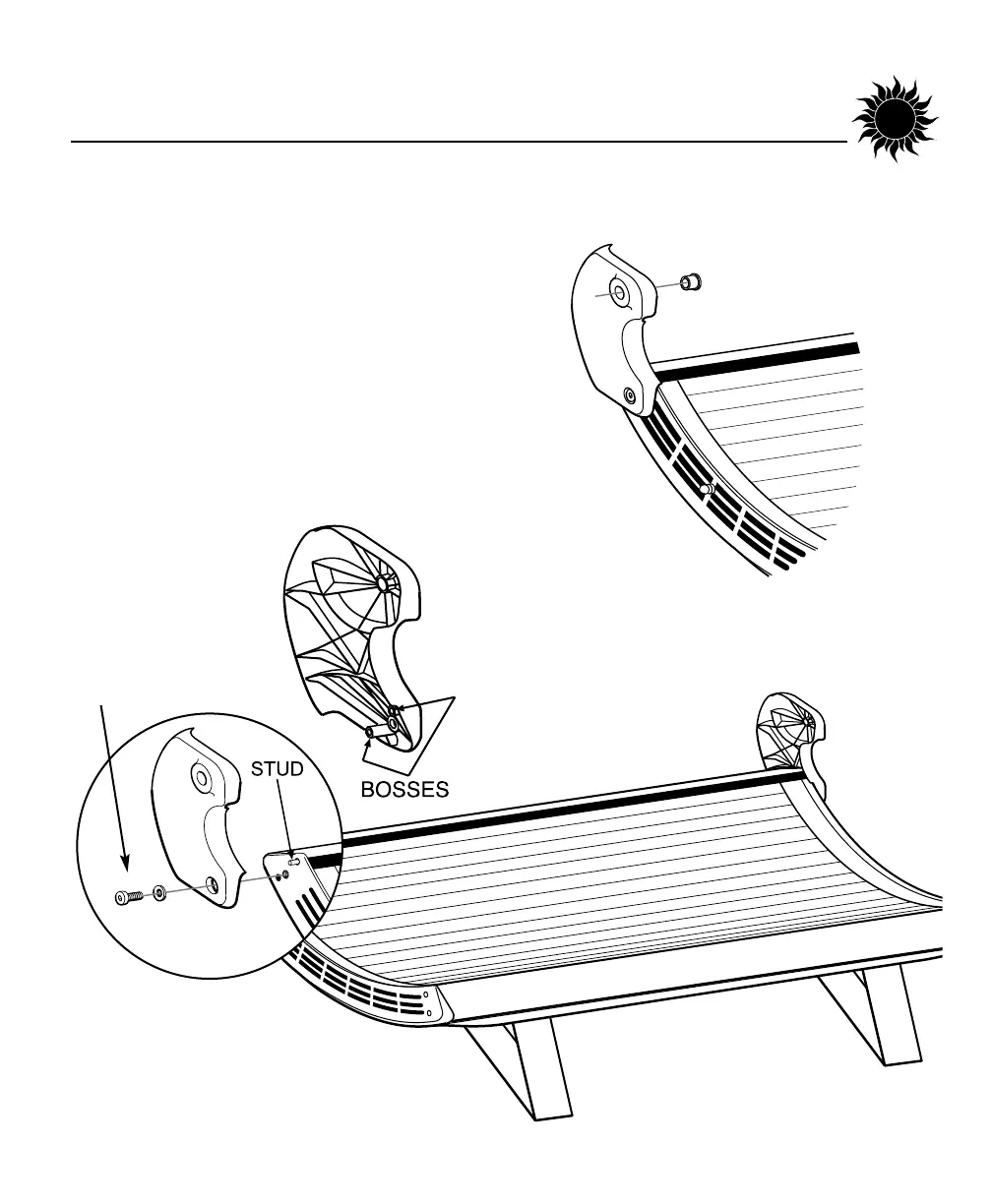

Locate the two hinge brackets and identify
the left and right brackets.
1. Install the hinge brackets to the ends
of the bench such that the short boss
engages the stud above the bolt hole,
and the long boss engages the hole
below the bolt hole. Secure using
the 5/16” x 1” Allen-head bolts and
5/16” metal washers. Tighten bolt
snug, then an additional half turn.
2. Place the bushings into the hinge
brackets as shown below.
SHORT BOLT
To Next Page
