NOTE:
Here only for signal control never
drive it directly
7.2 Electrical Wiring Specification
Model
Electrical Wiring Specification
YC-007
2*2.5 mm²+1*1mm²
Terminal
The terminal can connect the wire max. is 4 mm²

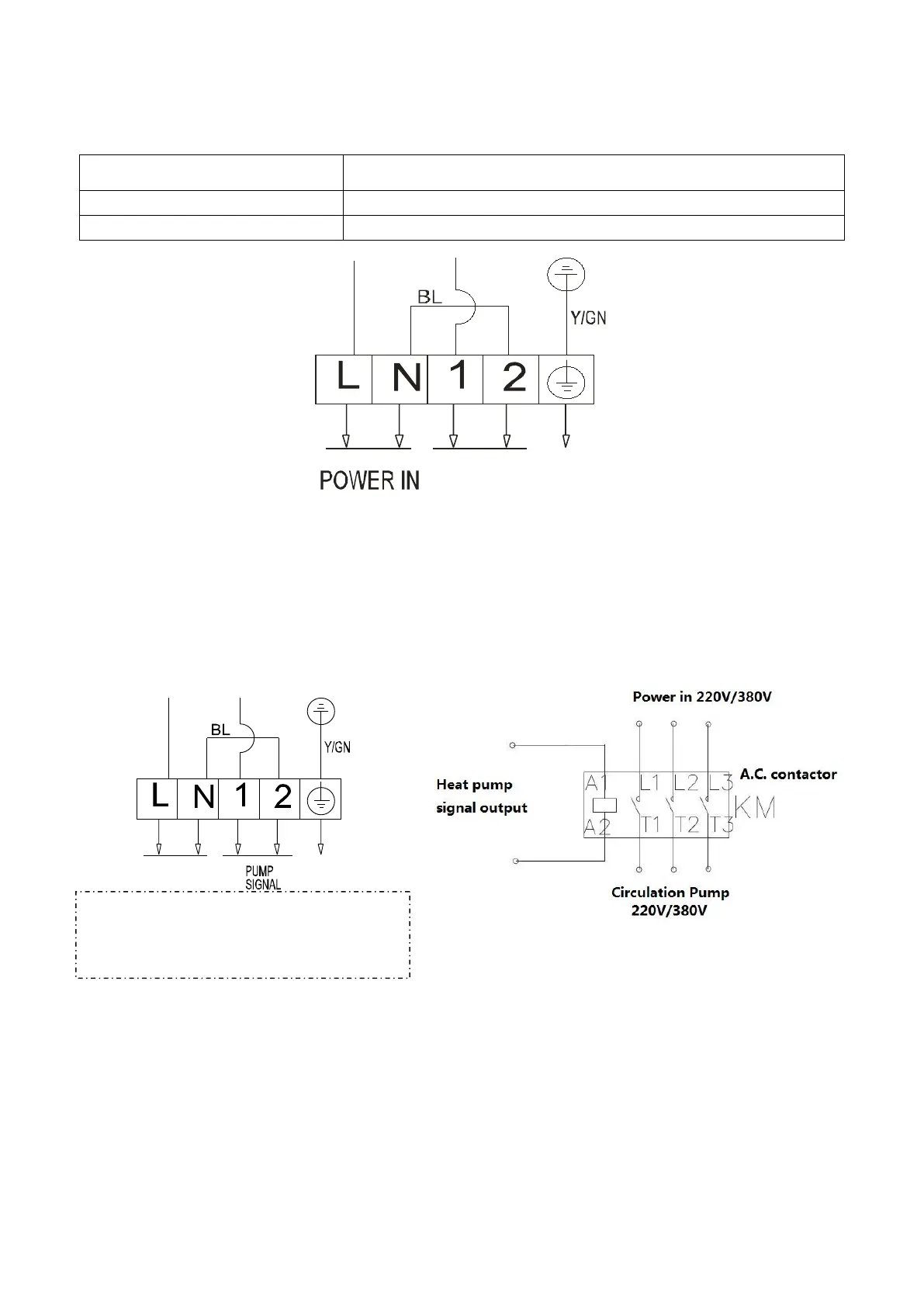

Figure 13
7.3 Circulation pump installation
The heat pump only provide the signal for circulation pump, must use an a.c. Contactor to
connect the circulation pump.
Figure 15 Figure 16
