SunSetter EASYSHADE Instructions

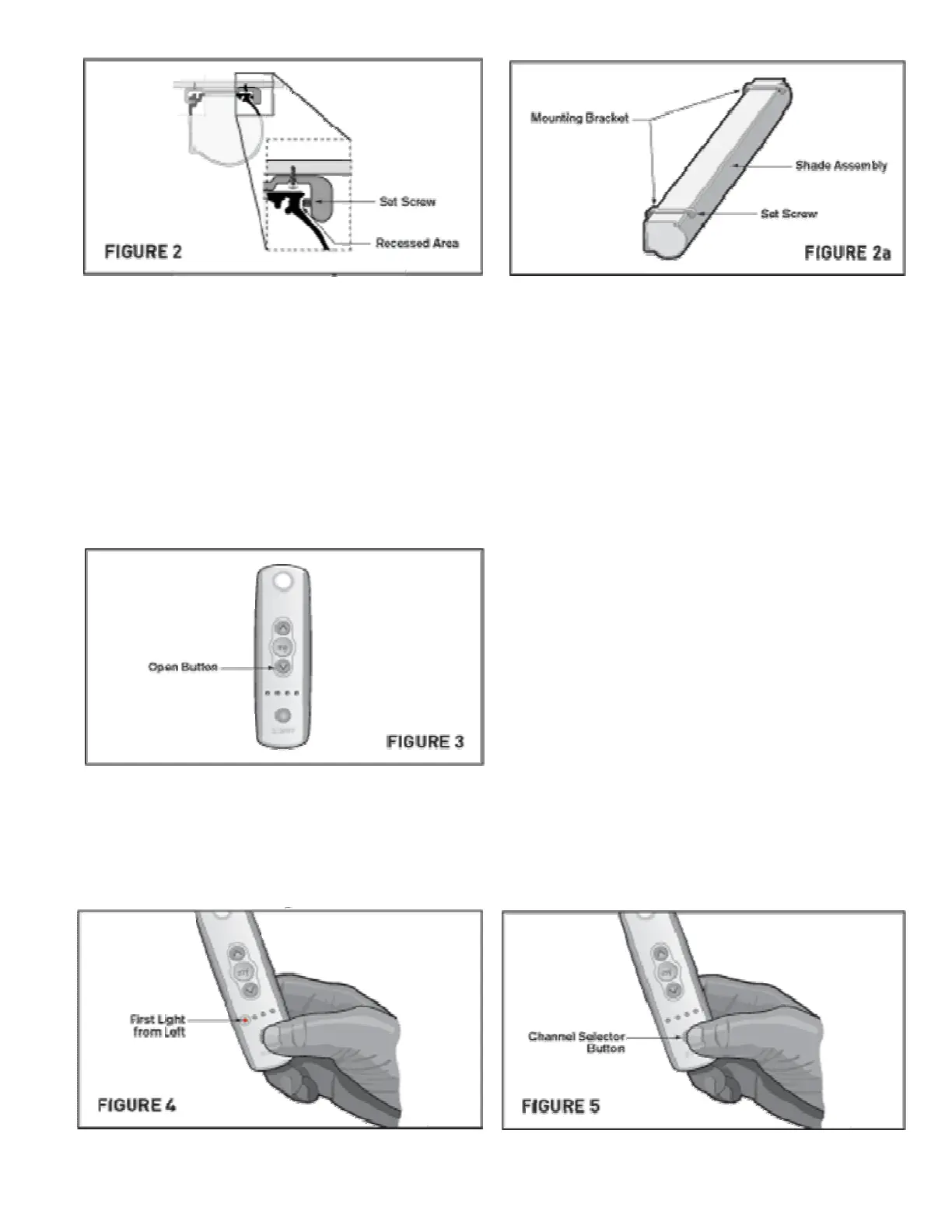

STEP 4. Tighten the set screw in each mounting bracket until the shade assembly is secure. (See
Figure 2a)
STEP 5. Plug the motor power cord into your electrical outlet.
NOTE: THE OPEN AND CLOSE STOP LIMITS ON THE EASYSHADE MOTOR WERE SET AND
TESTED AT THE FACTORY PRIOR TO SHIPMENT. THE OPEN STOP LIMIT WAS SET AT 36
INCH EXTENSION, THIS WILL ALLOW FOR COMPLETION OF THE INSTALLATION PROCESS.
STEP 6. Open your EasyShade using the open button on your remote control. (See Figure 3) Once
you opened the EasyShade, unplug the power cord from the electrical outlet.
NOTE: IF THE EASYSHADE DOES NOT RESPOND WHEN YOU PRESS THE OPEN BUTTON ON
THE REMOTE CONTROL, CHECK TO SEE IF THE FIRST CHANNEL SELECTOR LIGHT ON THE
REMOTE BLINKS ON AND OFF WHEN YOU PRESS THE OPEN BUTTON. (See Figure 4). IF
ONE OF THE OTHER CHANNEL LIGHTS COMES ON, PRESS THE CHANNEL SELECTOR
BUTTON UNTIL YOU HAVE SWITCHED TO THE FIRST CHANNEL. (See Figure 5)
