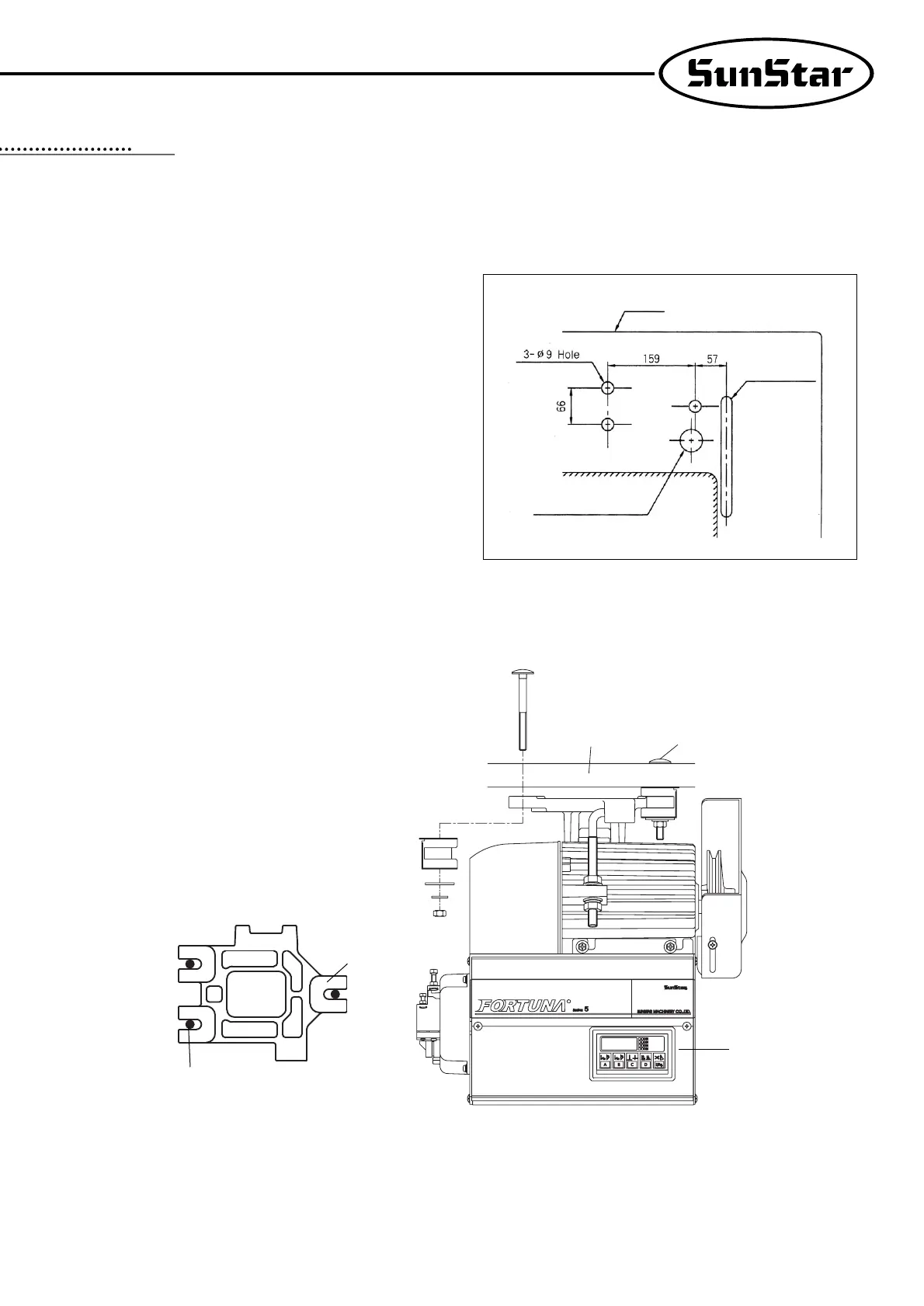

1) Mounting your Servo Motor on the table
② Insert three motor-fixing bolts through the three holes on the table. Attach the motor base padded with vibration-proof rubber, and slide
flat and spring washers over the bolt stems, and then fasten the bolts with nuts.
③ Make sure that the center of motor pulley is matched to that of the sewing machine before tightening the motor-fixing bolts and nuts.
① Make sure that the holes are bored on the table as shown in the
figure.
INSTALLATION
44
Table
Belt Hole
ф41 Cable-Hole
To Next Page
