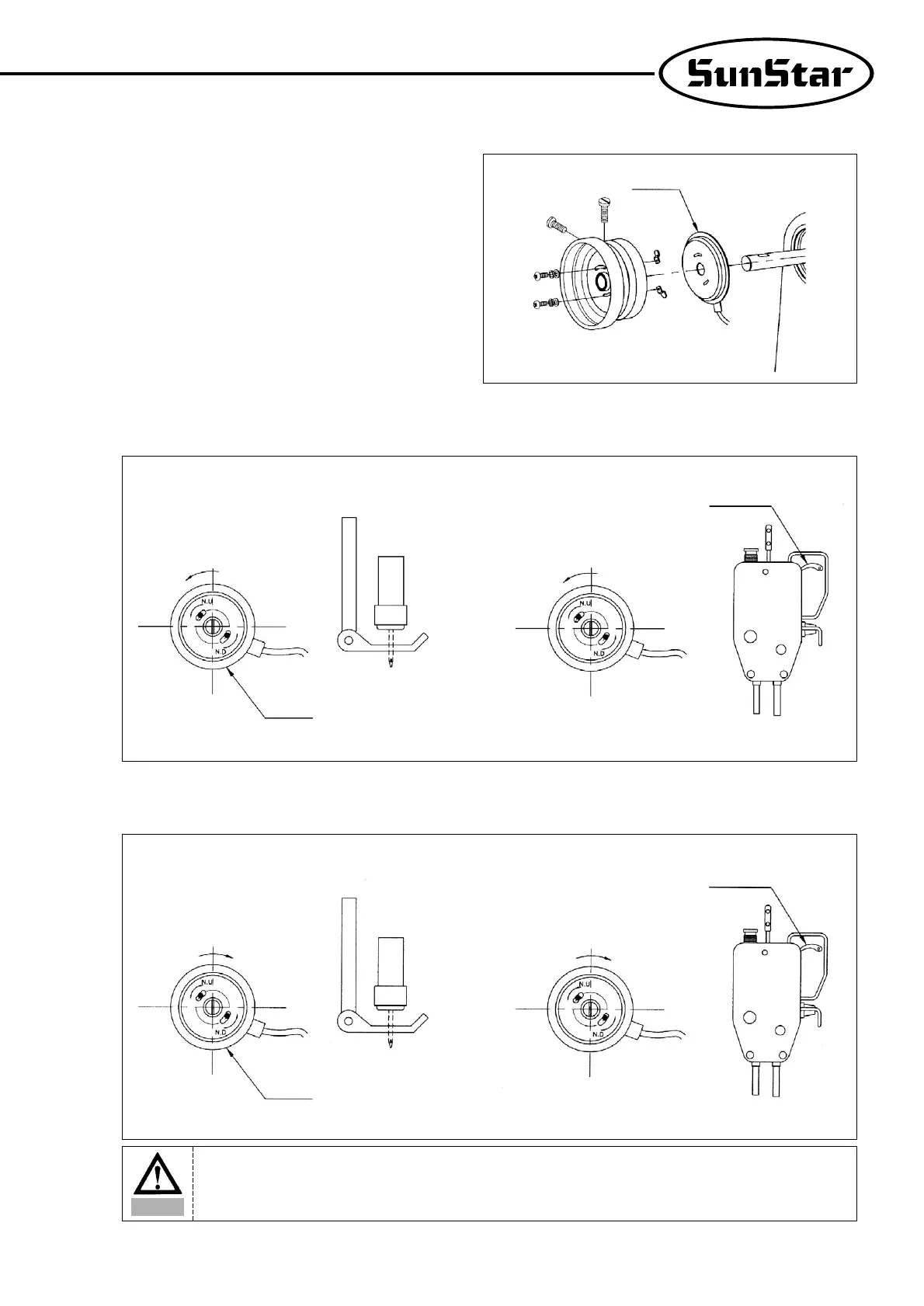

(2) How to adjust the magnet of the location detector
① Assemble the detector in order following the pictures.
② Once assembling is completed, power the controller on and step on the pedal. At this time, make sure that the needle moves up and down.
Stop the needle at a desired location by moving the magnet back and forth along the location where the needle stops.
(3) How to adjust a location detector in case of a reverse rotation sewing machine
※It is the same as that used for the normal rotation direction
Locate detector(synchronizer)
Normal rotation
direction
Reverse rotation
direction
Reverse rotation
direction
Normal rotation
direction
The highest position
of take-up lever
The highest position
of take-up lever
Locate detector
(synchronizer)
Locate detector
(synchronizer)
2mm turning around
from the lowest
position of needle bar
2mm turning around
from the lowest
position of needle bar
Caution
After adjusting a location detector, rotate the motor by stepping on the pedal for 3~5 seconds so that a
controller can remember the location.
