39
① Attach the edge sensor box (ass’y) connected to the edge sensor to the table.
② Link the edge sensor connector to the switch connector.

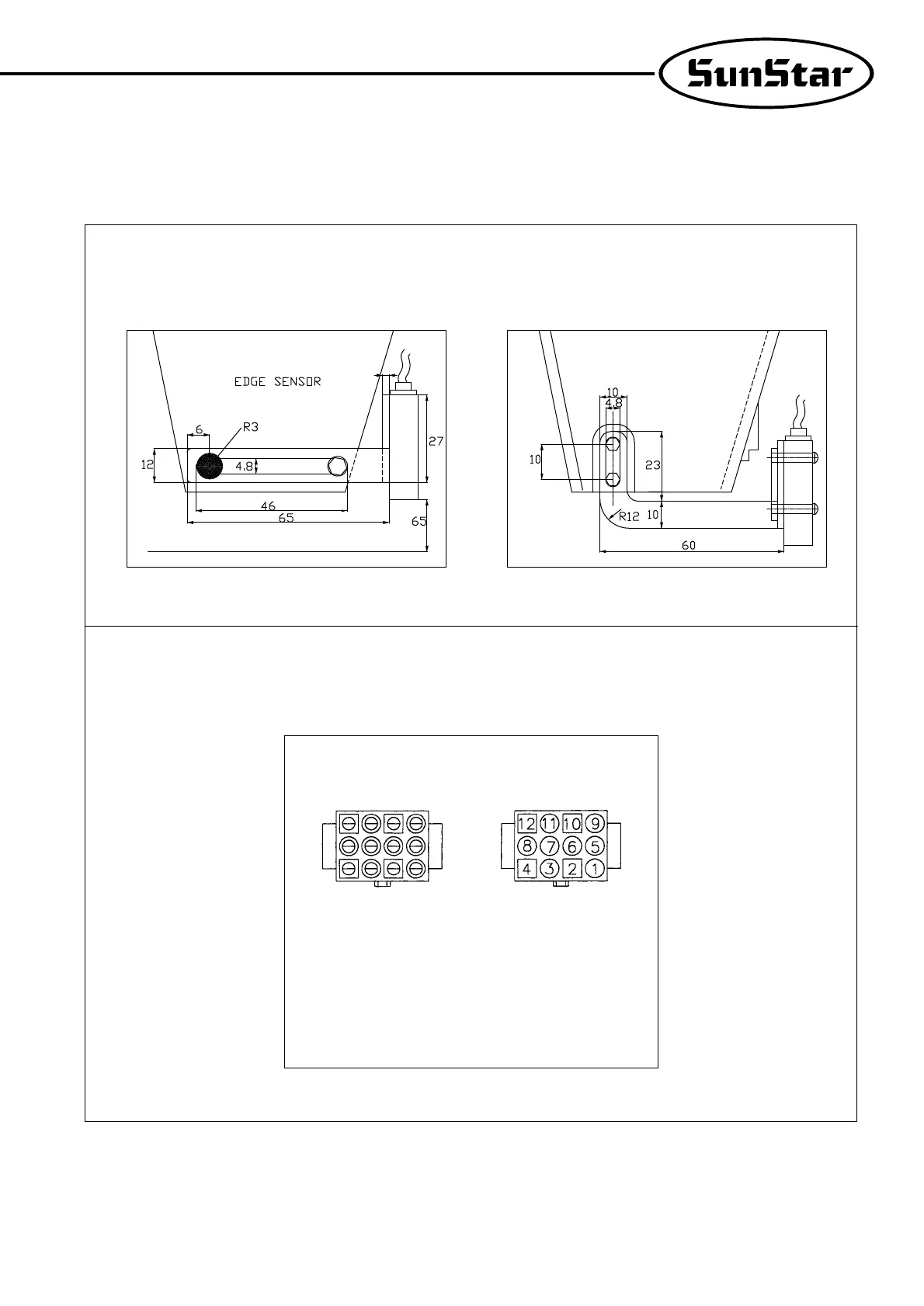

① Attach the edge sensor bracket to the sewing machine head as in the figure.
② Insert the edge sensor into the attached edge sensor bracket.
5) How to Use Edge Sensor
(1) Installing the Edge Sensor
< KM-235,250 > < KM-750,790 >
①＋5V
②＋5V
③ L LED
④ R LED
⑤ L S/W
⑥ R S/W
⑦ GND
⑧ 4/4 (N.C)
⑨ 3/4 (N.C)
⑩ 2/4 (N.C)
⑪1/4 (N.C)
⑫ (N.C)
[ Shape of pin ] [ No. of pin ]
