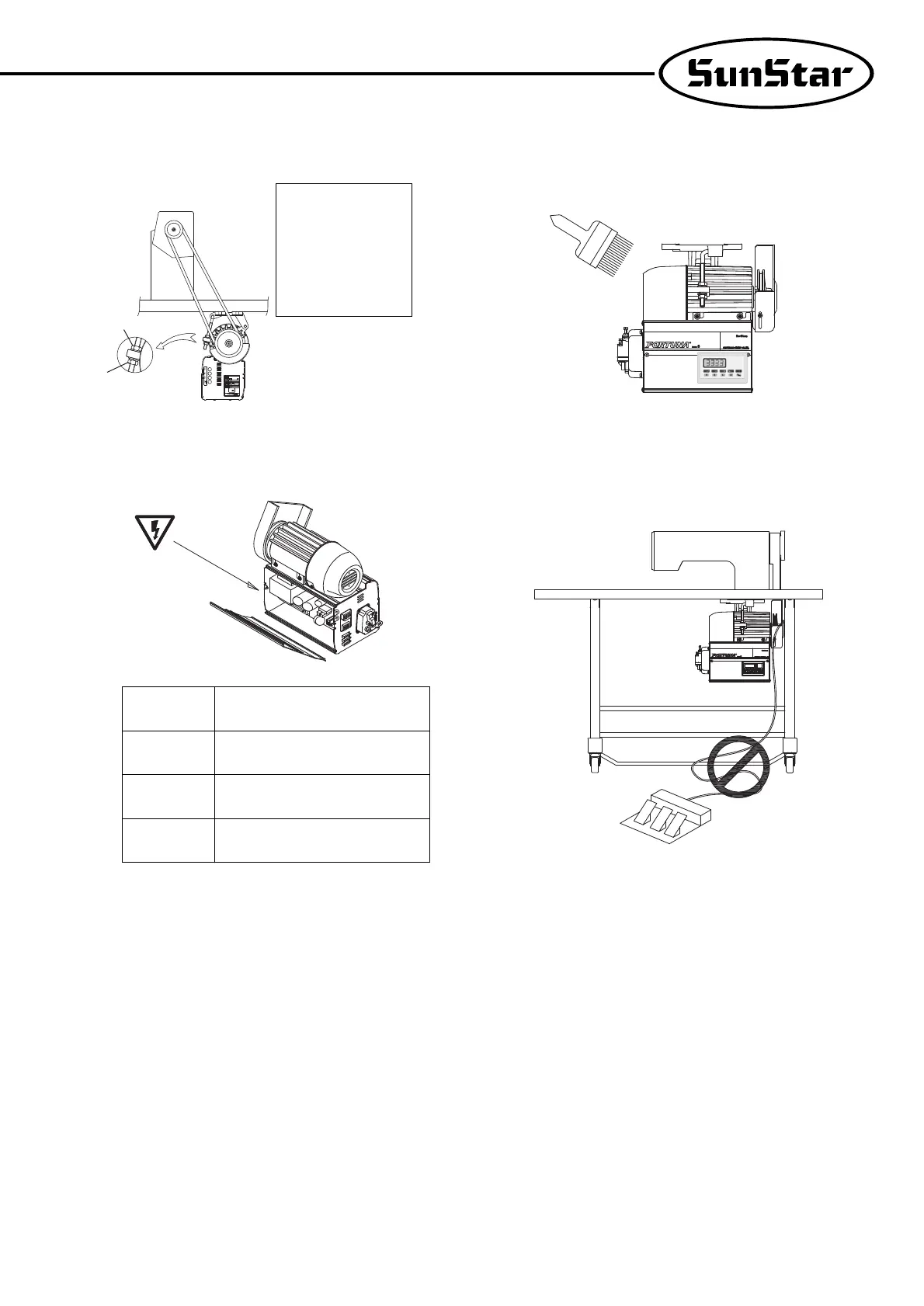

9. Adjust the belt tension to the optimum level.
Belt-tension adjustment should
be performed after the motor is
mounted on the table : First,
loosen both the upper and
lower anchoring bolts(①, ② ).
The belt tension will then be
adjusted by the weight of
servo motor itself. Fasten both
anchoring bolts.
10. Clean it every two or three weeks so that no dirt or a dirty
substance may be piled up.
11. When replacing the fuse, use a standard item, opening the
cover as shown in the diagram.
12. Make the length of the cable connected with an outside parts
like stand-up pedal as short as possible.
F1
F2
F3
F4 250V/1A
250V/6.3A
250V/15A
250V/15A
①
②
