12
[ Fig. 6 ]
①
①

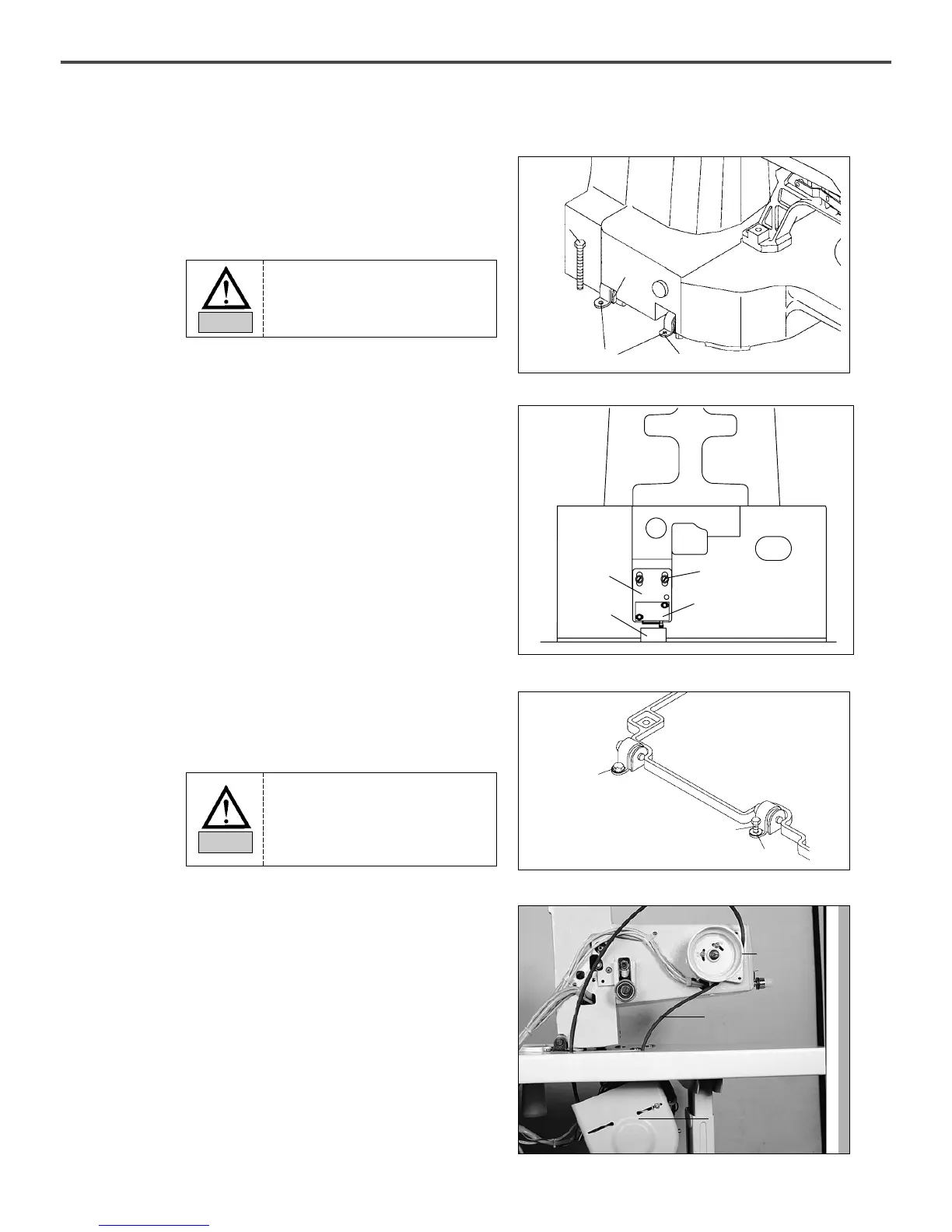

F. Stand the machine as shown in the picture,
and then fix the machine on the table after
inserting the fixing bolts into the hinge metal
holes of point ①.
Bolt
[ Fig. 7 ]
G. Put the “V”-Belt in between the pulley and
the motor while the machine is standing as
in the picture.(C Series)
Pulley
V-Belt
Motor Cover
[ Fig. 4 ]
①
D. Add the hinge metal and hinge rubber to the
bed. Then insert the fixing bolt into the
hinge
metal hole of point ① and fix the table
as shown
in the picture.
Bolt
Hinge
Rubber
Hinge
E. In case of SPS/D-B1202 series, assemble the
safety switch bracket ① on the bed as in the
figure. Move the safety switch bracket up
and down to make sure that the safety
switch supporting rubber② is tightly pressed
by the safety switch③, and then fasten the
screw④.
[ Fig. 5 ]
②
④
③
①
The machine should be carried
by more 2 people for safety
Danger
Since the machine is not perfectly
installed on the table, extreme care is
needed when you make the machine
stand up not to have any accident
occurred.
Danger
To Next Page
