13

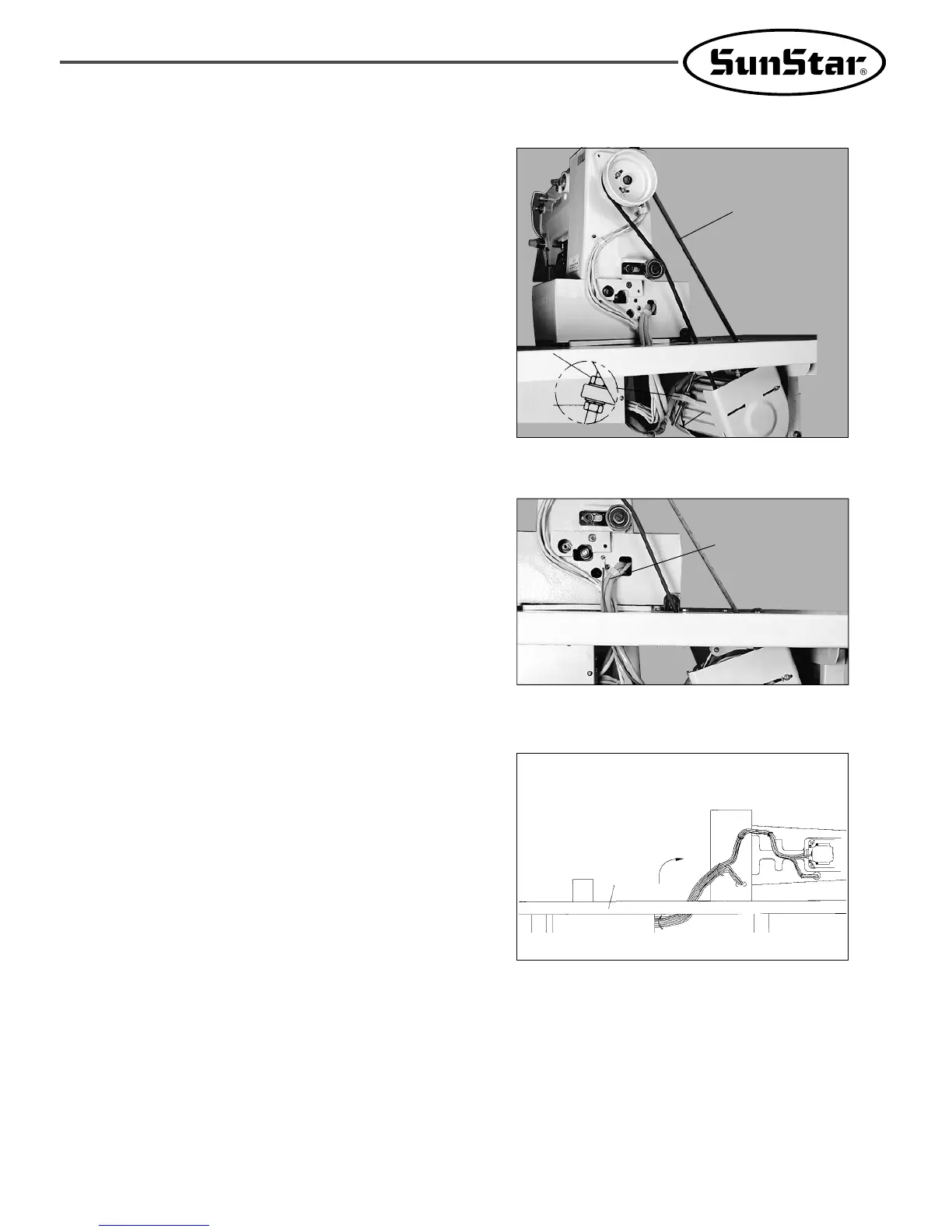

[ Fig. 9 ]
I. Be sure to connect the earthing conductor
(green)between the sewing machine and the
motor. And also, connect the earthing conduct
or between the control box and the motor.
(C Series)
Conductor
[ Fig. 10 ]
J.In case of D series, connect the conduct of
sewing machine and control box as in the
picture.
Conductor
[ Fig. 8 ]
D
C
①
②
H. After connecting the “V”-Belt, if the fixing
nuts① and ② are vertically unfastened
sufficiently tension occurs in belt D due to
the weight of motor C. At this point, first
screw in fixing nut ① A, then nut ② in
fixing screw B tightly. And, finish the cable
connection between the embroidery machine
and the control box, then fix the cable
wiring under the table as shown in the
Figure. (The length of cable should be set
up considering when the machine is put
aside.) (C Series)
To Next Page
